Spring AI 源码解析:MCP链路调用流程及示例

影子

Release Time 2025-04-01


MCP官方文档:https://modelcontextprotocol.io/introduction

java版的MCP源码:https://github.com/modelcontextprotocol/java-sdk

理论部分

MCP调用链路(核心)

以client-webflux、server-webflux为例

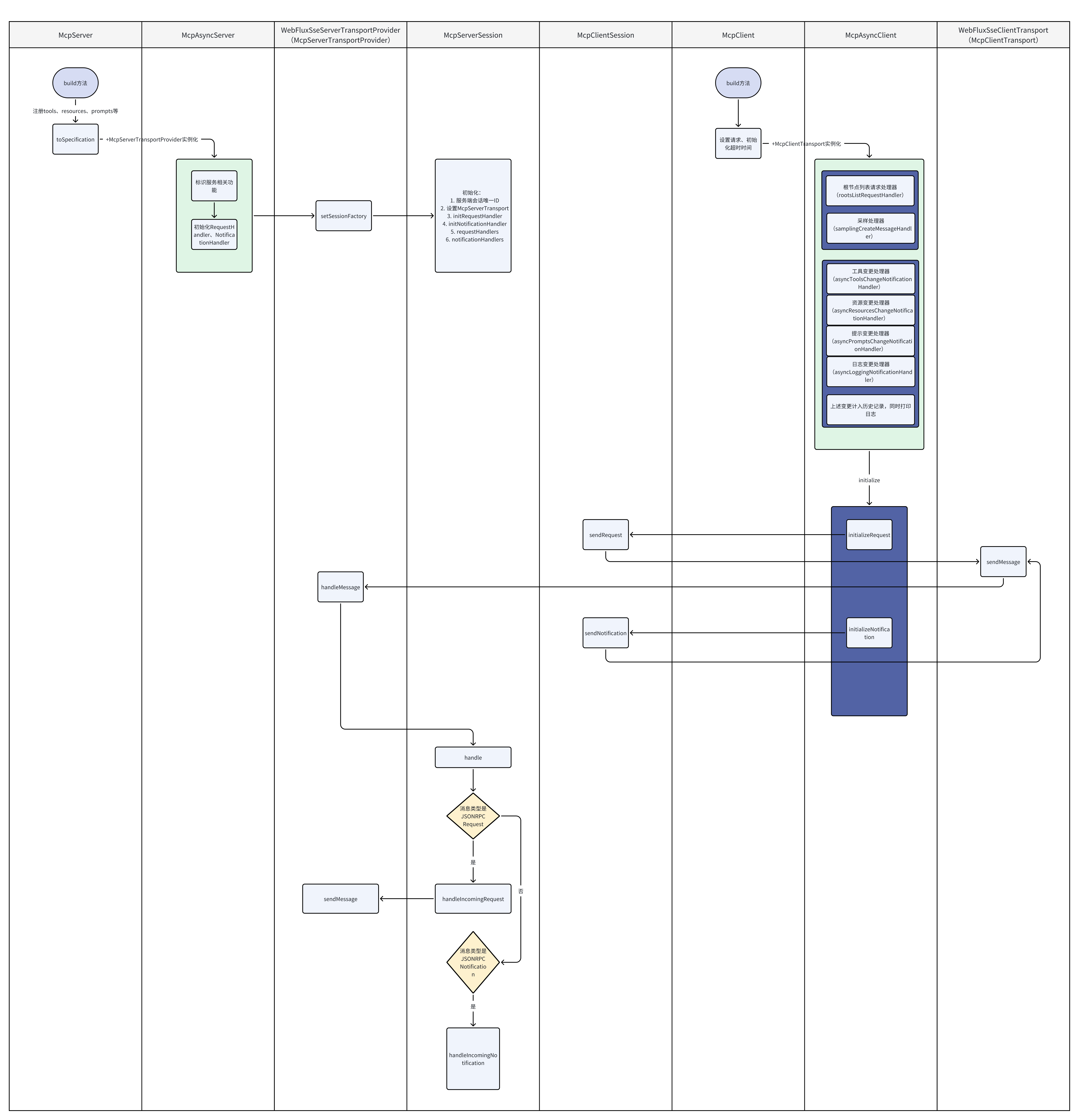

初始化连接链路…

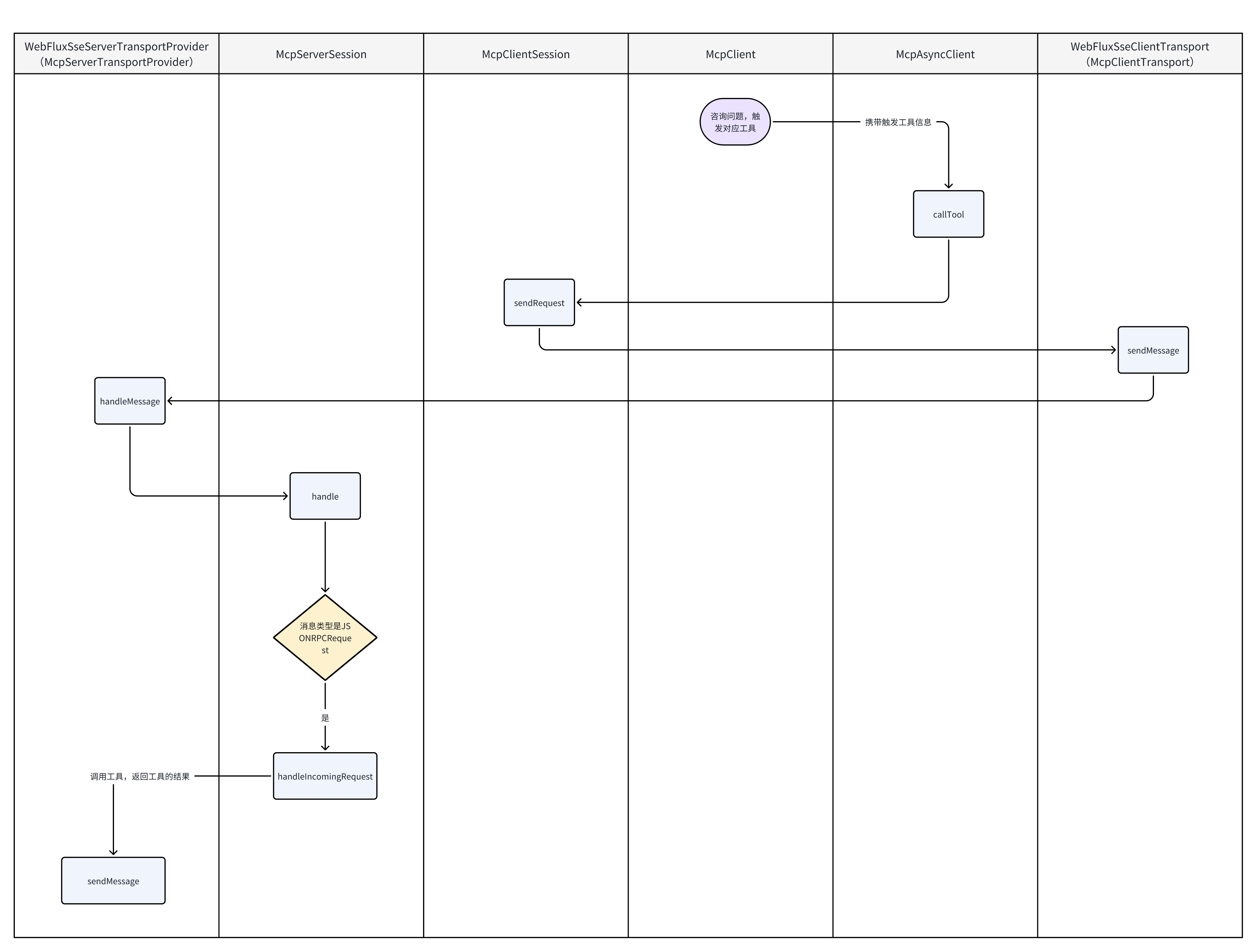

客户端咨询问题,调用服务端工具链路

McpClient(客户端)

用于创建MCP客户端的工厂类,提供了同步、异步客户端的方法,并支持多种配置,提供如下核心功能

  • 配置选项:运行设置请求超时、客户端能力、客户端信息、根URI等
  • 工具和资源管理:支持工具发现、资源访问、提示模版处理等
  • 实时更新:通过变更消费者接收工具、资源和提示的实时更新
  • 日志记录:支持结构化日志记录,提供多种日志级别和日志消费者配置

内部类

  • AsyncSpec:配置异步MCP服务器的构建器类
  • SyncSpec:配置同步MCP服务器的构建器类
public interface McpClient {
static SyncSpec sync(McpClientTransport transport) {
return new SyncSpec(transport);
}
static AsyncSpec async(McpClientTransport transport) {
return new AsyncSpec(transport);
}
class SyncSpec {
private final McpClientTransport transport;
private Duration requestTimeout = Duration.ofSeconds(20); // Default timeout
private Duration initializationTimeout = Duration.ofSeconds(20);
private ClientCapabilities capabilities;
private Implementation clientInfo = new Implementation("Java SDK MCP Client", "1.0.0");
private final Map<String, Root> roots = new HashMap<>();
private final List<Consumer<List<McpSchema.Tool>>> toolsChangeConsumers = new ArrayList<>();
private final List<Consumer<List<McpSchema.Resource>>> resourcesChangeConsumers = new ArrayList<>();
private final List<Consumer<List<McpSchema.Prompt>>> promptsChangeConsumers = new ArrayList<>();
private final List<Consumer<McpSchema.LoggingMessageNotification>> loggingConsumers = new ArrayList<>();
private Function<CreateMessageRequest, CreateMessageResult> samplingHandler;
private SyncSpec(McpClientTransport transport) {
Assert.notNull(transport, "Transport must not be null");
this.transport = transport;
}
public SyncSpec requestTimeout(Duration requestTimeout) {
Assert.notNull(requestTimeout, "Request timeout must not be null");
this.requestTimeout = requestTimeout;
return this;
}
public SyncSpec initializationTimeout(Duration initializationTimeout) {
Assert.notNull(initializationTimeout, "Initialization timeout must not be null");
this.initializationTimeout = initializationTimeout;
return this;
}
public SyncSpec capabilities(ClientCapabilities capabilities) {
Assert.notNull(capabilities, "Capabilities must not be null");
this.capabilities = capabilities;
return this;
}
public SyncSpec clientInfo(Implementation clientInfo) {
Assert.notNull(clientInfo, "Client info must not be null");
this.clientInfo = clientInfo;
return this;
}
public SyncSpec roots(List<Root> roots) {
Assert.notNull(roots, "Roots must not be null");
for (Root root : roots) {
this.roots.put(root.uri(), root);
}
return this;
}
public SyncSpec roots(Root... roots) {
Assert.notNull(roots, "Roots must not be null");
for (Root root : roots) {
this.roots.put(root.uri(), root);
}
return this;
}
public SyncSpec sampling(Function<CreateMessageRequest, CreateMessageResult> samplingHandler) {
Assert.notNull(samplingHandler, "Sampling handler must not be null");
this.samplingHandler = samplingHandler;
return this;
}
public SyncSpec toolsChangeConsumer(Consumer<List<McpSchema.Tool>> toolsChangeConsumer) {
Assert.notNull(toolsChangeConsumer, "Tools change consumer must not be null");
this.toolsChangeConsumers.add(toolsChangeConsumer);
return this;
}
public SyncSpec resourcesChangeConsumer(Consumer<List<McpSchema.Resource>> resourcesChangeConsumer) {
Assert.notNull(resourcesChangeConsumer, "Resources change consumer must not be null");
this.resourcesChangeConsumers.add(resourcesChangeConsumer);
return this;
}
public SyncSpec promptsChangeConsumer(Consumer<List<McpSchema.Prompt>> promptsChangeConsumer) {
Assert.notNull(promptsChangeConsumer, "Prompts change consumer must not be null");
this.promptsChangeConsumers.add(promptsChangeConsumer);
return this;
}
public SyncSpec loggingConsumer(Consumer<McpSchema.LoggingMessageNotification> loggingConsumer) {
Assert.notNull(loggingConsumer, "Logging consumer must not be null");
this.loggingConsumers.add(loggingConsumer);
return this;
}
public SyncSpec loggingConsumers(List<Consumer<McpSchema.LoggingMessageNotification>> loggingConsumers) {
Assert.notNull(loggingConsumers, "Logging consumers must not be null");
this.loggingConsumers.addAll(loggingConsumers);
return this;
}
public McpSyncClient build() {
McpClientFeatures.Sync syncFeatures = new McpClientFeatures.Sync(this.clientInfo, this.capabilities,
this.roots, this.toolsChangeConsumers, this.resourcesChangeConsumers, this.promptsChangeConsumers,
this.loggingConsumers, this.samplingHandler);
McpClientFeatures.Async asyncFeatures = McpClientFeatures.Async.fromSync(syncFeatures);
return new McpSyncClient(
new McpAsyncClient(transport, this.requestTimeout, this.initializationTimeout, asyncFeatures));
}
}
class AsyncSpec {
private final McpClientTransport transport;
private Duration requestTimeout = Duration.ofSeconds(20); // Default timeout
private Duration initializationTimeout = Duration.ofSeconds(20);
private ClientCapabilities capabilities;
private Implementation clientInfo = new Implementation("Spring AI MCP Client", "0.3.1");
private final Map<String, Root> roots = new HashMap<>();
private final List<Function<List<McpSchema.Tool>, Mono<Void>>> toolsChangeConsumers = new ArrayList<>();
private final List<Function<List<McpSchema.Resource>, Mono<Void>>> resourcesChangeConsumers = new ArrayList<>();
private final List<Function<List<McpSchema.Prompt>, Mono<Void>>> promptsChangeConsumers = new ArrayList<>();
private final List<Function<McpSchema.LoggingMessageNotification, Mono<Void>>> loggingConsumers = new ArrayList<>();
private Function<CreateMessageRequest, Mono<CreateMessageResult>> samplingHandler;
private AsyncSpec(McpClientTransport transport) {
Assert.notNull(transport, "Transport must not be null");
this.transport = transport;
}
public AsyncSpec requestTimeout(Duration requestTimeout) {
Assert.notNull(requestTimeout, "Request timeout must not be null");
this.requestTimeout = requestTimeout;
return this;
}
public AsyncSpec initializationTimeout(Duration initializationTimeout) {
Assert.notNull(initializationTimeout, "Initialization timeout must not be null");
this.initializationTimeout = initializationTimeout;
return this;
}
public AsyncSpec capabilities(ClientCapabilities capabilities) {
Assert.notNull(capabilities, "Capabilities must not be null");
this.capabilities = capabilities;
return this;
}
public AsyncSpec clientInfo(Implementation clientInfo) {
Assert.notNull(clientInfo, "Client info must not be null");
this.clientInfo = clientInfo;
return this;
}
public AsyncSpec roots(List<Root> roots) {
Assert.notNull(roots, "Roots must not be null");
for (Root root : roots) {
this.roots.put(root.uri(), root);
}
return this;
}
public AsyncSpec roots(Root... roots) {
Assert.notNull(roots, "Roots must not be null");
for (Root root : roots) {
this.roots.put(root.uri(), root);
}
return this;
}
public AsyncSpec sampling(Function<CreateMessageRequest, Mono<CreateMessageResult>> samplingHandler) {
Assert.notNull(samplingHandler, "Sampling handler must not be null");
this.samplingHandler = samplingHandler;
return this;
}
public AsyncSpec toolsChangeConsumer(Function<List<McpSchema.Tool>, Mono<Void>> toolsChangeConsumer) {
Assert.notNull(toolsChangeConsumer, "Tools change consumer must not be null");
this.toolsChangeConsumers.add(toolsChangeConsumer);
return this;
}
public AsyncSpec resourcesChangeConsumer(
Function<List<McpSchema.Resource>, Mono<Void>> resourcesChangeConsumer) {
Assert.notNull(resourcesChangeConsumer, "Resources change consumer must not be null");
this.resourcesChangeConsumers.add(resourcesChangeConsumer);
return this;
}
public AsyncSpec promptsChangeConsumer(Function<List<McpSchema.Prompt>, Mono<Void>> promptsChangeConsumer) {
Assert.notNull(promptsChangeConsumer, "Prompts change consumer must not be null");
this.promptsChangeConsumers.add(promptsChangeConsumer);
return this;
}
public AsyncSpec loggingConsumer(Function<McpSchema.LoggingMessageNotification, Mono<Void>> loggingConsumer) {
Assert.notNull(loggingConsumer, "Logging consumer must not be null");
this.loggingConsumers.add(loggingConsumer);
return this;
}
public AsyncSpec loggingConsumers(
List<Function<McpSchema.LoggingMessageNotification, Mono<Void>>> loggingConsumers) {
Assert.notNull(loggingConsumers, "Logging consumers must not be null");
this.loggingConsumers.addAll(loggingConsumers);
return this;
}
public McpAsyncClient build() {
return new McpAsyncClient(this.transport, this.requestTimeout, this.initializationTimeout,
new McpClientFeatures.Async(this.clientInfo, this.capabilities, this.roots,
this.toolsChangeConsumers, this.resourcesChangeConsumers, this.promptsChangeConsumers,
this.loggingConsumers, this.samplingHandler));
}
}
}

McpAsyncClient

异步客户端实现,基于Project Reactor的Mono与Flux类型,支持非阻塞操作

初始化与关闭

  • initialize:初始化客户端与服务端的连接,协商协议版本、交换能力并共享实现信息
  • close:立即关闭客户端连接
  • closeGracefully:优雅关闭客户端连接

工具操作

  • callTool:调用服务器提供的工具
  • listTools:获取服务器提供的工具列表

服务器与客户端信息

  • getServerInfo:获取服务器的实现信息
  • getServerCapabilities:获取服务器支持的功能和能力
  • getClientInfo:获取客户端的实现信息
  • getClientCapabilities:获取客户端支持的功能和能力

资源操作

  • listResources:获取服务器提供的资源列表
  • readResource:获取特定资源的内容
  • listResourceTemplates:获取服务器提供的资源模版列表
  • subscribeResource:资源订阅变更通知
  • unsubscribeResource:取消资源变更订阅

提示操作

  • listPrompts:获取服务器提供的提示列表
  • getPrompt:获取特定提示的详细信息

日志操作

  • setLoggingLevel:设置日志级别

其他工具方法:

  • ping:向服务器发送ping请求
  • addRoot:添加根路径
  • removeRoot:移除根路径
  • rootsListChangedNotification:手动发送根路径变更通知
public class McpAsyncClient {
private static final Logger logger = LoggerFactory.getLogger(McpAsyncClient.class);
private static TypeReference<Void> VOID_TYPE_REFERENCE = new TypeReference<>() {
};
protected final Sinks.One<McpSchema.InitializeResult> initializedSink = Sinks.one();
private AtomicBoolean initialized = new AtomicBoolean(false);
private final Duration initializationTimeout;
private final McpClientSession mcpSession;
private final McpSchema.ClientCapabilities clientCapabilities;
private final McpSchema.Implementation clientInfo;
private McpSchema.ServerCapabilities serverCapabilities;
private McpSchema.Implementation serverInfo;
private final ConcurrentHashMap<String, Root> roots;
private Function<CreateMessageRequest, Mono<CreateMessageResult>> samplingHandler;
private final McpTransport transport;
private List<String> protocolVersions = List.of(McpSchema.LATEST_PROTOCOL_VERSION);
McpAsyncClient(McpClientTransport transport, Duration requestTimeout, Duration initializationTimeout,
McpClientFeatures.Async features) {
Assert.notNull(transport, "Transport must not be null");
Assert.notNull(requestTimeout, "Request timeout must not be null");
Assert.notNull(initializationTimeout, "Initialization timeout must not be null");
this.clientInfo = features.clientInfo();
this.clientCapabilities = features.clientCapabilities();
this.transport = transport;
this.roots = new ConcurrentHashMap<>(features.roots());
this.initializationTimeout = initializationTimeout;
// Request Handlers
Map<String, RequestHandler<?>> requestHandlers = new HashMap<>();
// Roots List Request Handler
if (this.clientCapabilities.roots() != null) {
requestHandlers.put(McpSchema.METHOD_ROOTS_LIST, rootsListRequestHandler());
}
// Sampling Handler
if (this.clientCapabilities.sampling() != null) {
if (features.samplingHandler() == null) {
throw new McpError("Sampling handler must not be null when client capabilities include sampling");
}
this.samplingHandler = features.samplingHandler();
requestHandlers.put(McpSchema.METHOD_SAMPLING_CREATE_MESSAGE, samplingCreateMessageHandler());
}
// Notification Handlers
Map<String, NotificationHandler> notificationHandlers = new HashMap<>();
// Tools Change Notification
List<Function<List<McpSchema.Tool>, Mono<Void>>> toolsChangeConsumersFinal = new ArrayList<>();
toolsChangeConsumersFinal
.add((notification) -> Mono.fromRunnable(() -> logger.debug("Tools changed: {}", notification)));
if (!Utils.isEmpty(features.toolsChangeConsumers())) {
toolsChangeConsumersFinal.addAll(features.toolsChangeConsumers());
}
notificationHandlers.put(McpSchema.METHOD_NOTIFICATION_TOOLS_LIST_CHANGED,
asyncToolsChangeNotificationHandler(toolsChangeConsumersFinal));
// Resources Change Notification
List<Function<List<McpSchema.Resource>, Mono<Void>>> resourcesChangeConsumersFinal = new ArrayList<>();
resourcesChangeConsumersFinal
.add((notification) -> Mono.fromRunnable(() -> logger.debug("Resources changed: {}", notification)));
if (!Utils.isEmpty(features.resourcesChangeConsumers())) {
resourcesChangeConsumersFinal.addAll(features.resourcesChangeConsumers());
}
notificationHandlers.put(McpSchema.METHOD_NOTIFICATION_RESOURCES_LIST_CHANGED,
asyncResourcesChangeNotificationHandler(resourcesChangeConsumersFinal));
// Prompts Change Notification
List<Function<List<McpSchema.Prompt>, Mono<Void>>> promptsChangeConsumersFinal = new ArrayList<>();
promptsChangeConsumersFinal
.add((notification) -> Mono.fromRunnable(() -> logger.debug("Prompts changed: {}", notification)));
if (!Utils.isEmpty(features.promptsChangeConsumers())) {
promptsChangeConsumersFinal.addAll(features.promptsChangeConsumers());
}
notificationHandlers.put(McpSchema.METHOD_NOTIFICATION_PROMPTS_LIST_CHANGED,
asyncPromptsChangeNotificationHandler(promptsChangeConsumersFinal));
// Utility Logging Notification
List<Function<LoggingMessageNotification, Mono<Void>>> loggingConsumersFinal = new ArrayList<>();
loggingConsumersFinal.add((notification) -> Mono.fromRunnable(() -> logger.debug("Logging: {}", notification)));
if (!Utils.isEmpty(features.loggingConsumers())) {
loggingConsumersFinal.addAll(features.loggingConsumers());
}
notificationHandlers.put(McpSchema.METHOD_NOTIFICATION_MESSAGE,
asyncLoggingNotificationHandler(loggingConsumersFinal));
this.mcpSession = new McpClientSession(requestTimeout, transport, requestHandlers, notificationHandlers);
}
public McpSchema.ServerCapabilities getServerCapabilities() {
return this.serverCapabilities;
}
public McpSchema.Implementation getServerInfo() {
return this.serverInfo;
}
public boolean isInitialized() {
return this.initialized.get();
}
public ClientCapabilities getClientCapabilities() {
return this.clientCapabilities;
}
public McpSchema.Implementation getClientInfo() {
return this.clientInfo;
}
public void close() {
this.mcpSession.close();
}
public Mono<Void> closeGracefully() {
return this.mcpSession.closeGracefully();
}
// --------------------------
// Initialization
// --------------------------
public Mono<McpSchema.InitializeResult> initialize() {
String latestVersion = this.protocolVersions.get(this.protocolVersions.size() - 1);
McpSchema.InitializeRequest initializeRequest = new McpSchema.InitializeRequest(// @formatter:off
latestVersion,
this.clientCapabilities,
this.clientInfo); // @formatter:on
Mono<McpSchema.InitializeResult> result = this.mcpSession.sendRequest(McpSchema.METHOD_INITIALIZE,
initializeRequest, new TypeReference<McpSchema.InitializeResult>() {
});
return result.flatMap(initializeResult -> {
this.serverCapabilities = initializeResult.capabilities();
this.serverInfo = initializeResult.serverInfo();
logger.info("Server response with Protocol: {}, Capabilities: {}, Info: {} and Instructions {}",
initializeResult.protocolVersion(), initializeResult.capabilities(), initializeResult.serverInfo(),
initializeResult.instructions());
if (!this.protocolVersions.contains(initializeResult.protocolVersion())) {
return Mono.error(new McpError(
"Unsupported protocol version from the server: " + initializeResult.protocolVersion()));
}
return this.mcpSession.sendNotification(McpSchema.METHOD_NOTIFICATION_INITIALIZED, null).doOnSuccess(v -> {
this.initialized.set(true);
this.initializedSink.tryEmitValue(initializeResult);
}).thenReturn(initializeResult);
});
}
private <T> Mono<T> withInitializationCheck(String actionName,
Function<McpSchema.InitializeResult, Mono<T>> operation) {
return this.initializedSink.asMono()
.timeout(this.initializationTimeout)
.onErrorResume(TimeoutException.class,
ex -> Mono.error(new McpError("Client must be initialized before " + actionName)))
.flatMap(operation);
}
// --------------------------
// Basic Utilites
// --------------------------
public Mono<Object> ping() {
return this.withInitializationCheck("pinging the server", initializedResult -> this.mcpSession
.sendRequest(McpSchema.METHOD_PING, null, new TypeReference<Object>() {
}));
}
// --------------------------
// Roots
// --------------------------
public Mono<Void> addRoot(Root root) {
if (root == null) {
return Mono.error(new McpError("Root must not be null"));
}
if (this.clientCapabilities.roots() == null) {
return Mono.error(new McpError("Client must be configured with roots capabilities"));
}
if (this.roots.containsKey(root.uri())) {
return Mono.error(new McpError("Root with uri '" + root.uri() + "' already exists"));
}
this.roots.put(root.uri(), root);
logger.debug("Added root: {}", root);
if (this.clientCapabilities.roots().listChanged()) {
if (this.isInitialized()) {
return this.rootsListChangedNotification();
}
else {
logger.warn("Client is not initialized, ignore sending a roots list changed notification");
}
}
return Mono.empty();
}
public Mono<Void> removeRoot(String rootUri) {
if (rootUri == null) {
return Mono.error(new McpError("Root uri must not be null"));
}
if (this.clientCapabilities.roots() == null) {
return Mono.error(new McpError("Client must be configured with roots capabilities"));
}
Root removed = this.roots.remove(rootUri);
if (removed != null) {
logger.debug("Removed Root: {}", rootUri);
if (this.clientCapabilities.roots().listChanged()) {
if (this.isInitialized()) {
return this.rootsListChangedNotification();
}
else {
logger.warn("Client is not initialized, ignore sending a roots list changed notification");
}
}
return Mono.empty();
}
return Mono.error(new McpError("Root with uri '" + rootUri + "' not found"));
}
public Mono<Void> rootsListChangedNotification() {
return this.withInitializationCheck("sending roots list changed notification",
initResult -> this.mcpSession.sendNotification(McpSchema.METHOD_NOTIFICATION_ROOTS_LIST_CHANGED));
}
private RequestHandler<McpSchema.ListRootsResult> rootsListRequestHandler() {
return params -> {
@SuppressWarnings("unused")
McpSchema.PaginatedRequest request = transport.unmarshalFrom(params,
new TypeReference<McpSchema.PaginatedRequest>() {
});
List<Root> roots = this.roots.values().stream().toList();
return Mono.just(new McpSchema.ListRootsResult(roots));
};
}
// --------------------------
// Sampling
// --------------------------
private RequestHandler<CreateMessageResult> samplingCreateMessageHandler() {
return params -> {
McpSchema.CreateMessageRequest request = transport.unmarshalFrom(params,
new TypeReference<McpSchema.CreateMessageRequest>() {
});
return this.samplingHandler.apply(request);
};
}
// --------------------------
// Tools
// --------------------------
private static final TypeReference<McpSchema.CallToolResult> CALL_TOOL_RESULT_TYPE_REF = new TypeReference<>() {
};
private static final TypeReference<McpSchema.ListToolsResult> LIST_TOOLS_RESULT_TYPE_REF = new TypeReference<>() {
};
public Mono<McpSchema.CallToolResult> callTool(McpSchema.CallToolRequest callToolRequest) {
return this.withInitializationCheck("calling tools", initializedResult -> {
if (this.serverCapabilities.tools() == null) {
return Mono.error(new McpError("Server does not provide tools capability"));
}
return this.mcpSession.sendRequest(McpSchema.METHOD_TOOLS_CALL, callToolRequest, CALL_TOOL_RESULT_TYPE_REF);
});
}
public Mono<McpSchema.ListToolsResult> listTools() {
return this.listTools(null);
}
public Mono<McpSchema.ListToolsResult> listTools(String cursor) {
return this.withInitializationCheck("listing tools", initializedResult -> {
if (this.serverCapabilities.tools() == null) {
return Mono.error(new McpError("Server does not provide tools capability"));
}
return this.mcpSession.sendRequest(McpSchema.METHOD_TOOLS_LIST, new McpSchema.PaginatedRequest(cursor),
LIST_TOOLS_RESULT_TYPE_REF);
});
}
private NotificationHandler asyncToolsChangeNotificationHandler(
List<Function<List<McpSchema.Tool>, Mono<Void>>> toolsChangeConsumers) {
// TODO: params are not used yet
return params -> this.listTools()
.flatMap(listToolsResult -> Flux.fromIterable(toolsChangeConsumers)
.flatMap(consumer -> consumer.apply(listToolsResult.tools()))
.onErrorResume(error -> {
logger.error("Error handling tools list change notification", error);
return Mono.empty();
})
.then());
}
// --------------------------
// Resources
// --------------------------
private static final TypeReference<McpSchema.ListResourcesResult> LIST_RESOURCES_RESULT_TYPE_REF = new TypeReference<>() {
};
private static final TypeReference<McpSchema.ReadResourceResult> READ_RESOURCE_RESULT_TYPE_REF = new TypeReference<>() {
};
private static final TypeReference<McpSchema.ListResourceTemplatesResult> LIST_RESOURCE_TEMPLATES_RESULT_TYPE_REF = new TypeReference<>() {
};
public Mono<McpSchema.ListResourcesResult> listResources() {
return this.listResources(null);
}
public Mono<McpSchema.ListResourcesResult> listResources(String cursor) {
return this.withInitializationCheck("listing resources", initializedResult -> {
if (this.serverCapabilities.resources() == null) {
return Mono.error(new McpError("Server does not provide the resources capability"));
}
return this.mcpSession.sendRequest(McpSchema.METHOD_RESOURCES_LIST, new McpSchema.PaginatedRequest(cursor),
LIST_RESOURCES_RESULT_TYPE_REF);
});
}
public Mono<McpSchema.ReadResourceResult> readResource(McpSchema.Resource resource) {
return this.readResource(new McpSchema.ReadResourceRequest(resource.uri()));
}
public Mono<McpSchema.ReadResourceResult> readResource(McpSchema.ReadResourceRequest readResourceRequest) {
return this.withInitializationCheck("reading resources", initializedResult -> {
if (this.serverCapabilities.resources() == null) {
return Mono.error(new McpError("Server does not provide the resources capability"));
}
return this.mcpSession.sendRequest(McpSchema.METHOD_RESOURCES_READ, readResourceRequest,
READ_RESOURCE_RESULT_TYPE_REF);
});
}
public Mono<McpSchema.ListResourceTemplatesResult> listResourceTemplates() {
return this.listResourceTemplates(null);
}
public Mono<McpSchema.ListResourceTemplatesResult> listResourceTemplates(String cursor) {
return this.withInitializationCheck("listing resource templates", initializedResult -> {
if (this.serverCapabilities.resources() == null) {
return Mono.error(new McpError("Server does not provide the resources capability"));
}
return this.mcpSession.sendRequest(McpSchema.METHOD_RESOURCES_TEMPLATES_LIST,
new McpSchema.PaginatedRequest(cursor), LIST_RESOURCE_TEMPLATES_RESULT_TYPE_REF);
});
}
public Mono<Void> subscribeResource(McpSchema.SubscribeRequest subscribeRequest) {
return this.withInitializationCheck("subscribing to resources", initializedResult -> this.mcpSession
.sendRequest(McpSchema.METHOD_RESOURCES_SUBSCRIBE, subscribeRequest, VOID_TYPE_REFERENCE));
}
public Mono<Void> unsubscribeResource(McpSchema.UnsubscribeRequest unsubscribeRequest) {
return this.withInitializationCheck("unsubscribing from resources", initializedResult -> this.mcpSession
.sendRequest(McpSchema.METHOD_RESOURCES_UNSUBSCRIBE, unsubscribeRequest, VOID_TYPE_REFERENCE));
}
private NotificationHandler asyncResourcesChangeNotificationHandler(
List<Function<List<McpSchema.Resource>, Mono<Void>>> resourcesChangeConsumers) {
return params -> listResources().flatMap(listResourcesResult -> Flux.fromIterable(resourcesChangeConsumers)
.flatMap(consumer -> consumer.apply(listResourcesResult.resources()))
.onErrorResume(error -> {
logger.error("Error handling resources list change notification", error);
return Mono.empty();
})
.then());
}
// --------------------------
// Prompts
// --------------------------
private static final TypeReference<McpSchema.ListPromptsResult> LIST_PROMPTS_RESULT_TYPE_REF = new TypeReference<>() {
};
private static final TypeReference<McpSchema.GetPromptResult> GET_PROMPT_RESULT_TYPE_REF = new TypeReference<>() {
};
public Mono<ListPromptsResult> listPrompts() {
return this.listPrompts(null);
}
public Mono<ListPromptsResult> listPrompts(String cursor) {
return this.withInitializationCheck("listing prompts", initializedResult -> this.mcpSession
.sendRequest(McpSchema.METHOD_PROMPT_LIST, new PaginatedRequest(cursor), LIST_PROMPTS_RESULT_TYPE_REF));
}
public Mono<GetPromptResult> getPrompt(GetPromptRequest getPromptRequest) {
return this.withInitializationCheck("getting prompts", initializedResult -> this.mcpSession
.sendRequest(McpSchema.METHOD_PROMPT_GET, getPromptRequest, GET_PROMPT_RESULT_TYPE_REF));
}
private NotificationHandler asyncPromptsChangeNotificationHandler(
List<Function<List<McpSchema.Prompt>, Mono<Void>>> promptsChangeConsumers) {
return params -> listPrompts().flatMap(listPromptsResult -> Flux.fromIterable(promptsChangeConsumers)
.flatMap(consumer -> consumer.apply(listPromptsResult.prompts()))
.onErrorResume(error -> {
logger.error("Error handling prompts list change notification", error);
return Mono.empty();
})
.then());
}
// --------------------------
// Logging
// --------------------------
private NotificationHandler asyncLoggingNotificationHandler(
List<Function<LoggingMessageNotification, Mono<Void>>> loggingConsumers) {
return params -> {
McpSchema.LoggingMessageNotification loggingMessageNotification = transport.unmarshalFrom(params,
new TypeReference<McpSchema.LoggingMessageNotification>() {
});
return Flux.fromIterable(loggingConsumers)
.flatMap(consumer -> consumer.apply(loggingMessageNotification))
.then();
};
}
public Mono<Void> setLoggingLevel(LoggingLevel loggingLevel) {
if (loggingLevel == null) {
return Mono.error(new McpError("Logging level must not be null"));
}
return this.withInitializationCheck("setting logging level", initializedResult -> {
String levelName = this.transport.unmarshalFrom(loggingLevel, new TypeReference<String>() {
});
Map<String, Object> params = Map.of("level", levelName);
return this.mcpSession.sendNotification(McpSchema.METHOD_LOGGING_SET_LEVEL, params);
});
}
void setProtocolVersions(List<String> protocolVersions) {
this.protocolVersions = protocolVersions;
}
}

McpSyncClient

同步客户端实现,封装了McpAsyncClient以提供阻塞操作,其余功能方法和McpAsyncClient保持一致

public class McpSyncClient implements AutoCloseable {
private static final Logger logger = LoggerFactory.getLogger(McpSyncClient.class);
// TODO: Consider providing a client config to set this properly
// this is currently a concern only because AutoCloseable is used - perhaps it
// is not a requirement?
private static final long DEFAULT_CLOSE_TIMEOUT_MS = 10_000L;
private final McpAsyncClient delegate;
McpSyncClient(McpAsyncClient delegate) {
Assert.notNull(delegate, "The delegate can not be null");
this.delegate = delegate;
}
public McpSchema.ServerCapabilities getServerCapabilities() {
return this.delegate.getServerCapabilities();
}
public McpSchema.Implementation getServerInfo() {
return this.delegate.getServerInfo();
}
public ClientCapabilities getClientCapabilities() {
return this.delegate.getClientCapabilities();
}
public McpSchema.Implementation getClientInfo() {
return this.delegate.getClientInfo();
}
@Override
public void close() {
this.delegate.close();
}
public boolean closeGracefully() {
try {
this.delegate.closeGracefully().block(Duration.ofMillis(DEFAULT_CLOSE_TIMEOUT_MS));
}
catch (RuntimeException e) {
logger.warn("Client didn't close within timeout of {} ms.", DEFAULT_CLOSE_TIMEOUT_MS, e);
return false;
}
return true;
}
public McpSchema.InitializeResult initialize() {
// TODO: block takes no argument here as we assume the async client is
// configured with a requestTimeout at all times
return this.delegate.initialize().block();
}
public void rootsListChangedNotification() {
this.delegate.rootsListChangedNotification().block();
}
public void addRoot(McpSchema.Root root) {
this.delegate.addRoot(root).block();
}
public void removeRoot(String rootUri) {
this.delegate.removeRoot(rootUri).block();
}
public Object ping() {
return this.delegate.ping().block();
}
// --------------------------
// Tools
// --------------------------
public McpSchema.CallToolResult callTool(McpSchema.CallToolRequest callToolRequest) {
return this.delegate.callTool(callToolRequest).block();
}
public McpSchema.ListToolsResult listTools() {
return this.delegate.listTools().block();
}
public McpSchema.ListToolsResult listTools(String cursor) {
return this.delegate.listTools(cursor).block();
}
// --------------------------
// Resources
// --------------------------
public McpSchema.ListResourcesResult listResources(String cursor) {
return this.delegate.listResources(cursor).block();
}
public McpSchema.ListResourcesResult listResources() {
return this.delegate.listResources().block();
}
public McpSchema.ReadResourceResult readResource(McpSchema.Resource resource) {
return this.delegate.readResource(resource).block();
}
public McpSchema.ReadResourceResult readResource(McpSchema.ReadResourceRequest readResourceRequest) {
return this.delegate.readResource(readResourceRequest).block();
}
public McpSchema.ListResourceTemplatesResult listResourceTemplates(String cursor) {
return this.delegate.listResourceTemplates(cursor).block();
}
public McpSchema.ListResourceTemplatesResult listResourceTemplates() {
return this.delegate.listResourceTemplates().block();
}
public void subscribeResource(McpSchema.SubscribeRequest subscribeRequest) {
this.delegate.subscribeResource(subscribeRequest).block();
}
public void unsubscribeResource(McpSchema.UnsubscribeRequest unsubscribeRequest) {
this.delegate.unsubscribeResource(unsubscribeRequest).block();
}
// --------------------------
// Prompts
// --------------------------
public ListPromptsResult listPrompts(String cursor) {
return this.delegate.listPrompts(cursor).block();
}
public ListPromptsResult listPrompts() {
return this.delegate.listPrompts().block();
}
public GetPromptResult getPrompt(GetPromptRequest getPromptRequest) {
return this.delegate.getPrompt(getPromptRequest).block();
}
public void setLoggingLevel(McpSchema.LoggingLevel loggingLevel) {
this.delegate.setLoggingLevel(loggingLevel).block();
}
}

McpServer(服务端)

用于创建MCP服务端的工厂类,提供了同步、异步服务端的方法,提供如下核心功能

  • 暴露工具:允许AI模型调用服务器提供的工具来执行特定操作
  • 提供资源访问:为AI模型提供上下文数据,如文件、数据库等
  • 管理提示模版:提供结构化的提示模版,用于与AI模型的交互
  • 处理客户端连接和请求:管理客户端的连接,并处理其请求

内部类

  • AsyncSpecification:配置异步MCP服务器的构建器类
  • SyncSpecification:配置同步MCP服务器的构建器类
public interface McpServer {
static SyncSpecification sync(McpServerTransportProvider transportProvider) {
return new SyncSpecification(transportProvider);
}
static AsyncSpecification async(McpServerTransportProvider transportProvider) {
return new AsyncSpecification(transportProvider);
}
class AsyncSpecification {
private static final McpSchema.Implementation DEFAULT_SERVER_INFO = new McpSchema.Implementation("mcp-server",
"1.0.0");
private final McpServerTransportProvider transportProvider;
private ObjectMapper objectMapper;
private McpSchema.Implementation serverInfo = DEFAULT_SERVER_INFO;
private McpSchema.ServerCapabilities serverCapabilities;
private final List<McpServerFeatures.AsyncToolSpecification> tools = new ArrayList<>();
private final Map<String, McpServerFeatures.AsyncResourceSpecification> resources = new HashMap<>();
private final List<ResourceTemplate> resourceTemplates = new ArrayList<>();
private final Map<String, McpServerFeatures.AsyncPromptSpecification> prompts = new HashMap<>();
private final List<BiFunction<McpAsyncServerExchange, List<McpSchema.Root>, Mono<Void>>> rootsChangeHandlers = new ArrayList<>();
private AsyncSpecification(McpServerTransportProvider transportProvider) {
Assert.notNull(transportProvider, "Transport provider must not be null");
this.transportProvider = transportProvider;
}
public AsyncSpecification serverInfo(McpSchema.Implementation serverInfo) {
Assert.notNull(serverInfo, "Server info must not be null");
this.serverInfo = serverInfo;
return this;
}
public AsyncSpecification serverInfo(String name, String version) {
Assert.hasText(name, "Name must not be null or empty");
Assert.hasText(version, "Version must not be null or empty");
this.serverInfo = new McpSchema.Implementation(name, version);
return this;
}
public AsyncSpecification capabilities(McpSchema.ServerCapabilities serverCapabilities) {
Assert.notNull(serverCapabilities, "Server capabilities must not be null");
this.serverCapabilities = serverCapabilities;
return this;
}
public AsyncSpecification tool(McpSchema.Tool tool,
BiFunction<McpAsyncServerExchange, Map<String, Object>, Mono<CallToolResult>> handler) {
Assert.notNull(tool, "Tool must not be null");
Assert.notNull(handler, "Handler must not be null");
this.tools.add(new McpServerFeatures.AsyncToolSpecification(tool, handler));
return this;
}
public AsyncSpecification tools(List<McpServerFeatures.AsyncToolSpecification> toolSpecifications) {
Assert.notNull(toolSpecifications, "Tool handlers list must not be null");
this.tools.addAll(toolSpecifications);
return this;
}
public AsyncSpecification tools(McpServerFeatures.AsyncToolSpecification... toolSpecifications) {
Assert.notNull(toolSpecifications, "Tool handlers list must not be null");
for (McpServerFeatures.AsyncToolSpecification tool : toolSpecifications) {
this.tools.add(tool);
}
return this;
}
public AsyncSpecification resources(
Map<String, McpServerFeatures.AsyncResourceSpecification> resourceSpecifications) {
Assert.notNull(resourceSpecifications, "Resource handlers map must not be null");
this.resources.putAll(resourceSpecifications);
return this;
}
public AsyncSpecification resources(List<McpServerFeatures.AsyncResourceSpecification> resourceSpecifications) {
Assert.notNull(resourceSpecifications, "Resource handlers list must not be null");
for (McpServerFeatures.AsyncResourceSpecification resource : resourceSpecifications) {
this.resources.put(resource.resource().uri(), resource);
}
return this;
}
public AsyncSpecification resources(McpServerFeatures.AsyncResourceSpecification... resourceSpecifications) {
Assert.notNull(resourceSpecifications, "Resource handlers list must not be null");
for (McpServerFeatures.AsyncResourceSpecification resource : resourceSpecifications) {
this.resources.put(resource.resource().uri(), resource);
}
return this;
}
public AsyncSpecification resourceTemplates(List<ResourceTemplate> resourceTemplates) {
Assert.notNull(resourceTemplates, "Resource templates must not be null");
this.resourceTemplates.addAll(resourceTemplates);
return this;
}
public AsyncSpecification resourceTemplates(ResourceTemplate... resourceTemplates) {
Assert.notNull(resourceTemplates, "Resource templates must not be null");
for (ResourceTemplate resourceTemplate : resourceTemplates) {
this.resourceTemplates.add(resourceTemplate);
}
return this;
}
public AsyncSpecification prompts(Map<String, McpServerFeatures.AsyncPromptSpecification> prompts) {
Assert.notNull(prompts, "Prompts map must not be null");
this.prompts.putAll(prompts);
return this;
}
public AsyncSpecification prompts(List<McpServerFeatures.AsyncPromptSpecification> prompts) {
Assert.notNull(prompts, "Prompts list must not be null");
for (McpServerFeatures.AsyncPromptSpecification prompt : prompts) {
this.prompts.put(prompt.prompt().name(), prompt);
}
return this;
}
public AsyncSpecification prompts(McpServerFeatures.AsyncPromptSpecification... prompts) {
Assert.notNull(prompts, "Prompts list must not be null");
for (McpServerFeatures.AsyncPromptSpecification prompt : prompts) {
this.prompts.put(prompt.prompt().name(), prompt);
}
return this;
}
public AsyncSpecification rootsChangeHandler(
BiFunction<McpAsyncServerExchange, List<McpSchema.Root>, Mono<Void>> handler) {
Assert.notNull(handler, "Consumer must not be null");
this.rootsChangeHandlers.add(handler);
return this;
}
public AsyncSpecification rootsChangeHandlers(
List<BiFunction<McpAsyncServerExchange, List<McpSchema.Root>, Mono<Void>>> handlers) {
Assert.notNull(handlers, "Handlers list must not be null");
this.rootsChangeHandlers.addAll(handlers);
return this;
}
public AsyncSpecification rootsChangeHandlers(
@SuppressWarnings("unchecked") BiFunction<McpAsyncServerExchange, List<McpSchema.Root>, Mono<Void>>... handlers) {
Assert.notNull(handlers, "Handlers list must not be null");
return this.rootsChangeHandlers(Arrays.asList(handlers));
}
public AsyncSpecification objectMapper(ObjectMapper objectMapper) {
Assert.notNull(objectMapper, "ObjectMapper must not be null");
this.objectMapper = objectMapper;
return this;
}
public McpAsyncServer build() {
var features = new McpServerFeatures.Async(this.serverInfo, this.serverCapabilities, this.tools,
this.resources, this.resourceTemplates, this.prompts, this.rootsChangeHandlers);
var mapper = this.objectMapper != null ? this.objectMapper : new ObjectMapper();
return new McpAsyncServer(this.transportProvider, mapper, features);
}
}
class SyncSpecification {
private static final McpSchema.Implementation DEFAULT_SERVER_INFO = new McpSchema.Implementation("mcp-server",
"1.0.0");
private final McpServerTransportProvider transportProvider;
private ObjectMapper objectMapper;
private McpSchema.Implementation serverInfo = DEFAULT_SERVER_INFO;
private McpSchema.ServerCapabilities serverCapabilities;
private final List<McpServerFeatures.SyncToolSpecification> tools = new ArrayList<>();
private final Map<String, McpServerFeatures.SyncResourceSpecification> resources = new HashMap<>();
private final List<ResourceTemplate> resourceTemplates = new ArrayList<>();
private final Map<String, McpServerFeatures.SyncPromptSpecification> prompts = new HashMap<>();
private final List<BiConsumer<McpSyncServerExchange, List<McpSchema.Root>>> rootsChangeHandlers = new ArrayList<>();
private SyncSpecification(McpServerTransportProvider transportProvider) {
Assert.notNull(transportProvider, "Transport provider must not be null");
this.transportProvider = transportProvider;
}
public SyncSpecification serverInfo(McpSchema.Implementation serverInfo) {
Assert.notNull(serverInfo, "Server info must not be null");
this.serverInfo = serverInfo;
return this;
}
public SyncSpecification serverInfo(String name, String version) {
Assert.hasText(name, "Name must not be null or empty");
Assert.hasText(version, "Version must not be null or empty");
this.serverInfo = new McpSchema.Implementation(name, version);
return this;
}
public SyncSpecification capabilities(McpSchema.ServerCapabilities serverCapabilities) {
Assert.notNull(serverCapabilities, "Server capabilities must not be null");
this.serverCapabilities = serverCapabilities;
return this;
}
public SyncSpecification tool(McpSchema.Tool tool,
BiFunction<McpSyncServerExchange, Map<String, Object>, McpSchema.CallToolResult> handler) {
Assert.notNull(tool, "Tool must not be null");
Assert.notNull(handler, "Handler must not be null");
this.tools.add(new McpServerFeatures.SyncToolSpecification(tool, handler));
return this;
}
public SyncSpecification tools(List<McpServerFeatures.SyncToolSpecification> toolSpecifications) {
Assert.notNull(toolSpecifications, "Tool handlers list must not be null");
this.tools.addAll(toolSpecifications);
return this;
}
public SyncSpecification tools(McpServerFeatures.SyncToolSpecification... toolSpecifications) {
Assert.notNull(toolSpecifications, "Tool handlers list must not be null");
for (McpServerFeatures.SyncToolSpecification tool : toolSpecifications) {
this.tools.add(tool);
}
return this;
}
public SyncSpecification resources(
Map<String, McpServerFeatures.SyncResourceSpecification> resourceSpecifications) {
Assert.notNull(resourceSpecifications, "Resource handlers map must not be null");
this.resources.putAll(resourceSpecifications);
return this;
}
public SyncSpecification resources(List<McpServerFeatures.SyncResourceSpecification> resourceSpecifications) {
Assert.notNull(resourceSpecifications, "Resource handlers list must not be null");
for (McpServerFeatures.SyncResourceSpecification resource : resourceSpecifications) {
this.resources.put(resource.resource().uri(), resource);
}
return this;
}
public SyncSpecification resources(McpServerFeatures.SyncResourceSpecification... resourceSpecifications) {
Assert.notNull(resourceSpecifications, "Resource handlers list must not be null");
for (McpServerFeatures.SyncResourceSpecification resource : resourceSpecifications) {
this.resources.put(resource.resource().uri(), resource);
}
return this;
}
public SyncSpecification resourceTemplates(List<ResourceTemplate> resourceTemplates) {
Assert.notNull(resourceTemplates, "Resource templates must not be null");
this.resourceTemplates.addAll(resourceTemplates);
return this;
}
public SyncSpecification resourceTemplates(ResourceTemplate... resourceTemplates) {
Assert.notNull(resourceTemplates, "Resource templates must not be null");
for (ResourceTemplate resourceTemplate : resourceTemplates) {
this.resourceTemplates.add(resourceTemplate);
}
return this;
}
public SyncSpecification prompts(Map<String, McpServerFeatures.SyncPromptSpecification> prompts) {
Assert.notNull(prompts, "Prompts map must not be null");
this.prompts.putAll(prompts);
return this;
}
public SyncSpecification prompts(List<McpServerFeatures.SyncPromptSpecification> prompts) {
Assert.notNull(prompts, "Prompts list must not be null");
for (McpServerFeatures.SyncPromptSpecification prompt : prompts) {
this.prompts.put(prompt.prompt().name(), prompt);
}
return this;
}
public SyncSpecification prompts(McpServerFeatures.SyncPromptSpecification... prompts) {
Assert.notNull(prompts, "Prompts list must not be null");
for (McpServerFeatures.SyncPromptSpecification prompt : prompts) {
this.prompts.put(prompt.prompt().name(), prompt);
}
return this;
}
public SyncSpecification rootsChangeHandler(BiConsumer<McpSyncServerExchange, List<McpSchema.Root>> handler) {
Assert.notNull(handler, "Consumer must not be null");
this.rootsChangeHandlers.add(handler);
return this;
}
public SyncSpecification rootsChangeHandlers(
List<BiConsumer<McpSyncServerExchange, List<McpSchema.Root>>> handlers) {
Assert.notNull(handlers, "Handlers list must not be null");
this.rootsChangeHandlers.addAll(handlers);
return this;
}
public SyncSpecification rootsChangeHandlers(
BiConsumer<McpSyncServerExchange, List<McpSchema.Root>>... handlers) {
Assert.notNull(handlers, "Handlers list must not be null");
return this.rootsChangeHandlers(List.of(handlers));
}
public SyncSpecification objectMapper(ObjectMapper objectMapper) {
Assert.notNull(objectMapper, "ObjectMapper must not be null");
this.objectMapper = objectMapper;
return this;
}
public McpSyncServer build() {
McpServerFeatures.Sync syncFeatures = new McpServerFeatures.Sync(this.serverInfo, this.serverCapabilities,
this.tools, this.resources, this.resourceTemplates, this.prompts, this.rootsChangeHandlers);
McpServerFeatures.Async asyncFeatures = McpServerFeatures.Async.fromSync(syncFeatures);
var mapper = this.objectMapper != null ? this.objectMapper : new ObjectMapper();
var asyncServer = new McpAsyncServer(this.transportProvider, mapper, asyncFeatures);
return new McpSyncServer(asyncServer);
}
}
}

McpAsyncServer

异步服务端的实现,基于Project Reactor的Mono与Flux类型,支持非阻塞操作

关闭

  • close:立即关闭服务端连接
  • closeGracefully:优雅关闭服务端连接

工具操作

  • addTool:动态添加工具
  • removeTool:动态移除指定名称的工具
  • notifyToolsListChanged:通知客户端工具列表已发生变化

服务器信息获取

  • getServerCapabilities:获取服务器的能力配置
  • getServerInfo:获取服务器的实现信息

资源管理

  • addResource:动态添加资源
  • removeResource:动态移除指定URL的资源
  • notifyResourcesListChanged:通知客户端资源列表已发生变化

提示管理

  • addPrompt:动态添加提示
  • removePrompt:动态移除指定名称的提示
  • notifyPromptsListChanged:通知客户端提示列表已发生变化

日志管理

  • loggingNotification:向所有连接的客户端发送日志通知
public class McpAsyncServer {
private static final Logger logger = LoggerFactory.getLogger(McpAsyncServer.class);
private final McpAsyncServer delegate;
McpAsyncServer() {
this.delegate = null;
}
McpAsyncServer(McpServerTransportProvider mcpTransportProvider, ObjectMapper objectMapper,
McpServerFeatures.Async features) {
this.delegate = new AsyncServerImpl(mcpTransportProvider, objectMapper, features);
}
public McpSchema.ServerCapabilities getServerCapabilities() {
return this.delegate.getServerCapabilities();
}
public McpSchema.Implementation getServerInfo() {
return this.delegate.getServerInfo();
}
public Mono<Void> closeGracefully() {
return this.delegate.closeGracefully();
}
public void close() {
this.delegate.close();
}
// ---------------------------------------
// Tool Management
// ---------------------------------------
public Mono<Void> addTool(McpServerFeatures.AsyncToolSpecification toolSpecification) {
return this.delegate.addTool(toolSpecification);
}
public Mono<Void> removeTool(String toolName) {
return this.delegate.removeTool(toolName);
}
public Mono<Void> notifyToolsListChanged() {
return this.delegate.notifyToolsListChanged();
}
// ---------------------------------------
// Resource Management
// ---------------------------------------
public Mono<Void> addResource(McpServerFeatures.AsyncResourceSpecification resourceHandler) {
return this.delegate.addResource(resourceHandler);
}
public Mono<Void> removeResource(String resourceUri) {
return this.delegate.removeResource(resourceUri);
}
public Mono<Void> notifyResourcesListChanged() {
return this.delegate.notifyResourcesListChanged();
}
// ---------------------------------------
// Prompt Management
// ---------------------------------------
public Mono<Void> addPrompt(McpServerFeatures.AsyncPromptSpecification promptSpecification) {
return this.delegate.addPrompt(promptSpecification);
}
public Mono<Void> removePrompt(String promptName) {
return this.delegate.removePrompt(promptName);
}
public Mono<Void> notifyPromptsListChanged() {
return this.delegate.notifyPromptsListChanged();
}
// ---------------------------------------
// Logging Management
// ---------------------------------------
public Mono<Void> loggingNotification(LoggingMessageNotification loggingMessageNotification) {
return this.delegate.loggingNotification(loggingMessageNotification);
}
// ---------------------------------------
// Sampling
// ---------------------------------------
void setProtocolVersions(List<String> protocolVersions) {
this.delegate.setProtocolVersions(protocolVersions);
}
private static class AsyncServerImpl extends McpAsyncServer {
private final McpServerTransportProvider mcpTransportProvider;
private final ObjectMapper objectMapper;
private final McpSchema.ServerCapabilities serverCapabilities;
private final McpSchema.Implementation serverInfo;
private final CopyOnWriteArrayList<McpServerFeatures.AsyncToolSpecification> tools = new CopyOnWriteArrayList<>();
private final CopyOnWriteArrayList<McpSchema.ResourceTemplate> resourceTemplates = new CopyOnWriteArrayList<>();
private final ConcurrentHashMap<String, McpServerFeatures.AsyncResourceSpecification> resources = new ConcurrentHashMap<>();
private final ConcurrentHashMap<String, McpServerFeatures.AsyncPromptSpecification> prompts = new ConcurrentHashMap<>();
private LoggingLevel minLoggingLevel = LoggingLevel.DEBUG;
private List<String> protocolVersions = List.of(McpSchema.LATEST_PROTOCOL_VERSION);
AsyncServerImpl(McpServerTransportProvider mcpTransportProvider, ObjectMapper objectMapper,
McpServerFeatures.Async features) {
this.mcpTransportProvider = mcpTransportProvider;
this.objectMapper = objectMapper;
this.serverInfo = features.serverInfo();
this.serverCapabilities = features.serverCapabilities();
this.tools.addAll(features.tools());
this.resources.putAll(features.resources());
this.resourceTemplates.addAll(features.resourceTemplates());
this.prompts.putAll(features.prompts());
Map<String, McpServerSession.RequestHandler<?>> requestHandlers = new HashMap<>();
// Initialize request handlers for standard MCP methods
// Ping MUST respond with an empty data, but not NULL response.
requestHandlers.put(McpSchema.METHOD_PING, (exchange, params) -> Mono.just(Map.of()));
// Add tools API handlers if the tool capability is enabled
if (this.serverCapabilities.tools() != null) {
requestHandlers.put(McpSchema.METHOD_TOOLS_LIST, toolsListRequestHandler());
requestHandlers.put(McpSchema.METHOD_TOOLS_CALL, toolsCallRequestHandler());
}
// Add resources API handlers if provided
if (this.serverCapabilities.resources() != null) {
requestHandlers.put(McpSchema.METHOD_RESOURCES_LIST, resourcesListRequestHandler());
requestHandlers.put(McpSchema.METHOD_RESOURCES_READ, resourcesReadRequestHandler());
requestHandlers.put(McpSchema.METHOD_RESOURCES_TEMPLATES_LIST, resourceTemplateListRequestHandler());
}
// Add prompts API handlers if provider exists
if (this.serverCapabilities.prompts() != null) {
requestHandlers.put(McpSchema.METHOD_PROMPT_LIST, promptsListRequestHandler());
requestHandlers.put(McpSchema.METHOD_PROMPT_GET, promptsGetRequestHandler());
}
// Add logging API handlers if the logging capability is enabled
if (this.serverCapabilities.logging() != null) {
requestHandlers.put(McpSchema.METHOD_LOGGING_SET_LEVEL, setLoggerRequestHandler());
}
Map<String, McpServerSession.NotificationHandler> notificationHandlers = new HashMap<>();
notificationHandlers.put(McpSchema.METHOD_NOTIFICATION_INITIALIZED, (exchange, params) -> Mono.empty());
List<BiFunction<McpAsyncServerExchange, List<McpSchema.Root>, Mono<Void>>> rootsChangeConsumers = features
.rootsChangeConsumers();
if (Utils.isEmpty(rootsChangeConsumers)) {
rootsChangeConsumers = List.of((exchange,
roots) -> Mono.fromRunnable(() -> logger.warn(
"Roots list changed notification, but no consumers provided. Roots list changed: {}",
roots)));
}
notificationHandlers.put(McpSchema.METHOD_NOTIFICATION_ROOTS_LIST_CHANGED,
asyncRootsListChangedNotificationHandler(rootsChangeConsumers));
mcpTransportProvider
.setSessionFactory(transport -> new McpServerSession(UUID.randomUUID().toString(), transport,
this::asyncInitializeRequestHandler, Mono::empty, requestHandlers, notificationHandlers));
}
// ---------------------------------------
// Lifecycle Management
// ---------------------------------------
private Mono<McpSchema.InitializeResult> asyncInitializeRequestHandler(
McpSchema.InitializeRequest initializeRequest) {
return Mono.defer(() -> {
logger.info("Client initialize request - Protocol: {}, Capabilities: {}, Info: {}",
initializeRequest.protocolVersion(), initializeRequest.capabilities(),
initializeRequest.clientInfo());
// The server MUST respond with the highest protocol version it supports
// if
// it does not support the requested (e.g. Client) version.
String serverProtocolVersion = this.protocolVersions.get(this.protocolVersions.size() - 1);
if (this.protocolVersions.contains(initializeRequest.protocolVersion())) {
// If the server supports the requested protocol version, it MUST
// respond
// with the same version.
serverProtocolVersion = initializeRequest.protocolVersion();
}
else {
logger.warn(
"Client requested unsupported protocol version: {}, so the server will sugggest the {} version instead",
initializeRequest.protocolVersion(), serverProtocolVersion);
}
return Mono.just(new McpSchema.InitializeResult(serverProtocolVersion, this.serverCapabilities,
this.serverInfo, null));
});
}
public McpSchema.ServerCapabilities getServerCapabilities() {
return this.serverCapabilities;
}
public McpSchema.Implementation getServerInfo() {
return this.serverInfo;
}
@Override
public Mono<Void> closeGracefully() {
return this.mcpTransportProvider.closeGracefully();
}
@Override
public void close() {
this.mcpTransportProvider.close();
}
private McpServerSession.NotificationHandler asyncRootsListChangedNotificationHandler(
List<BiFunction<McpAsyncServerExchange, List<McpSchema.Root>, Mono<Void>>> rootsChangeConsumers) {
return (exchange, params) -> exchange.listRoots()
.flatMap(listRootsResult -> Flux.fromIterable(rootsChangeConsumers)
.flatMap(consumer -> consumer.apply(exchange, listRootsResult.roots()))
.onErrorResume(error -> {
logger.error("Error handling roots list change notification", error);
return Mono.empty();
})
.then());
}
// ---------------------------------------
// Tool Management
// ---------------------------------------
@Override
public Mono<Void> addTool(McpServerFeatures.AsyncToolSpecification toolSpecification) {
if (toolSpecification == null) {
return Mono.error(new McpError("Tool specification must not be null"));
}
if (toolSpecification.tool() == null) {
return Mono.error(new McpError("Tool must not be null"));
}
if (toolSpecification.call() == null) {
return Mono.error(new McpError("Tool call handler must not be null"));
}
if (this.serverCapabilities.tools() == null) {
return Mono.error(new McpError("Server must be configured with tool capabilities"));
}
return Mono.defer(() -> {
// Check for duplicate tool names
if (this.tools.stream().anyMatch(th -> th.tool().name().equals(toolSpecification.tool().name()))) {
return Mono
.error(new McpError("Tool with name '" + toolSpecification.tool().name() + "' already exists"));
}
this.tools.add(toolSpecification);
logger.debug("Added tool handler: {}", toolSpecification.tool().name());
if (this.serverCapabilities.tools().listChanged()) {
return notifyToolsListChanged();
}
return Mono.empty();
});
}
@Override
public Mono<Void> removeTool(String toolName) {
if (toolName == null) {
return Mono.error(new McpError("Tool name must not be null"));
}
if (this.serverCapabilities.tools() == null) {
return Mono.error(new McpError("Server must be configured with tool capabilities"));
}
return Mono.defer(() -> {
boolean removed = this.tools
.removeIf(toolSpecification -> toolSpecification.tool().name().equals(toolName));
if (removed) {
logger.debug("Removed tool handler: {}", toolName);
if (this.serverCapabilities.tools().listChanged()) {
return notifyToolsListChanged();
}
return Mono.empty();
}
return Mono.error(new McpError("Tool with name '" + toolName + "' not found"));
});
}
@Override
public Mono<Void> notifyToolsListChanged() {
return this.mcpTransportProvider.notifyClients(McpSchema.METHOD_NOTIFICATION_TOOLS_LIST_CHANGED, null);
}
private McpServerSession.RequestHandler<McpSchema.ListToolsResult> toolsListRequestHandler() {
return (exchange, params) -> {
List<Tool> tools = this.tools.stream().map(McpServerFeatures.AsyncToolSpecification::tool).toList();
return Mono.just(new McpSchema.ListToolsResult(tools, null));
};
}
private McpServerSession.RequestHandler<CallToolResult> toolsCallRequestHandler() {
return (exchange, params) -> {
McpSchema.CallToolRequest callToolRequest = objectMapper.convertValue(params,
new TypeReference<McpSchema.CallToolRequest>() {
});
Optional<McpServerFeatures.AsyncToolSpecification> toolSpecification = this.tools.stream()
.filter(tr -> callToolRequest.name().equals(tr.tool().name()))
.findAny();
if (toolSpecification.isEmpty()) {
return Mono.error(new McpError("Tool not found: " + callToolRequest.name()));
}
return toolSpecification.map(tool -> tool.call().apply(exchange, callToolRequest.arguments()))
.orElse(Mono.error(new McpError("Tool not found: " + callToolRequest.name())));
};
}
// ---------------------------------------
// Resource Management
// ---------------------------------------
@Override
public Mono<Void> addResource(McpServerFeatures.AsyncResourceSpecification resourceSpecification) {
if (resourceSpecification == null || resourceSpecification.resource() == null) {
return Mono.error(new McpError("Resource must not be null"));
}
if (this.serverCapabilities.resources() == null) {
return Mono.error(new McpError("Server must be configured with resource capabilities"));
}
return Mono.defer(() -> {
if (this.resources.putIfAbsent(resourceSpecification.resource().uri(), resourceSpecification) != null) {
return Mono.error(new McpError(
"Resource with URI '" + resourceSpecification.resource().uri() + "' already exists"));
}
logger.debug("Added resource handler: {}", resourceSpecification.resource().uri());
if (this.serverCapabilities.resources().listChanged()) {
return notifyResourcesListChanged();
}
return Mono.empty();
});
}
@Override
public Mono<Void> removeResource(String resourceUri) {
if (resourceUri == null) {
return Mono.error(new McpError("Resource URI must not be null"));
}
if (this.serverCapabilities.resources() == null) {
return Mono.error(new McpError("Server must be configured with resource capabilities"));
}
return Mono.defer(() -> {
McpServerFeatures.AsyncResourceSpecification removed = this.resources.remove(resourceUri);
if (removed != null) {
logger.debug("Removed resource handler: {}", resourceUri);
if (this.serverCapabilities.resources().listChanged()) {
return notifyResourcesListChanged();
}
return Mono.empty();
}
return Mono.error(new McpError("Resource with URI '" + resourceUri + "' not found"));
});
}
@Override
public Mono<Void> notifyResourcesListChanged() {
return this.mcpTransportProvider.notifyClients(McpSchema.METHOD_NOTIFICATION_RESOURCES_LIST_CHANGED, null);
}
private McpServerSession.RequestHandler<McpSchema.ListResourcesResult> resourcesListRequestHandler() {
return (exchange, params) -> {
var resourceList = this.resources.values()
.stream()
.map(McpServerFeatures.AsyncResourceSpecification::resource)
.toList();
return Mono.just(new McpSchema.ListResourcesResult(resourceList, null));
};
}
private McpServerSession.RequestHandler<McpSchema.ListResourceTemplatesResult> resourceTemplateListRequestHandler() {
return (exchange, params) -> Mono
.just(new McpSchema.ListResourceTemplatesResult(this.resourceTemplates, null));
}
private McpServerSession.RequestHandler<McpSchema.ReadResourceResult> resourcesReadRequestHandler() {
return (exchange, params) -> {
McpSchema.ReadResourceRequest resourceRequest = objectMapper.convertValue(params,
new TypeReference<McpSchema.ReadResourceRequest>() {
});
var resourceUri = resourceRequest.uri();
McpServerFeatures.AsyncResourceSpecification specification = this.resources.get(resourceUri);
if (specification != null) {
return specification.readHandler().apply(exchange, resourceRequest);
}
return Mono.error(new McpError("Resource not found: " + resourceUri));
};
}
// ---------------------------------------
// Prompt Management
// ---------------------------------------
@Override
public Mono<Void> addPrompt(McpServerFeatures.AsyncPromptSpecification promptSpecification) {
if (promptSpecification == null) {
return Mono.error(new McpError("Prompt specification must not be null"));
}
if (this.serverCapabilities.prompts() == null) {
return Mono.error(new McpError("Server must be configured with prompt capabilities"));
}
return Mono.defer(() -> {
McpServerFeatures.AsyncPromptSpecification specification = this.prompts
.putIfAbsent(promptSpecification.prompt().name(), promptSpecification);
if (specification != null) {
return Mono.error(new McpError(
"Prompt with name '" + promptSpecification.prompt().name() + "' already exists"));
}
logger.debug("Added prompt handler: {}", promptSpecification.prompt().name());
// Servers that declared the listChanged capability SHOULD send a
// notification,
// when the list of available prompts changes
if (this.serverCapabilities.prompts().listChanged()) {
return notifyPromptsListChanged();
}
return Mono.empty();
});
}
@Override
public Mono<Void> removePrompt(String promptName) {
if (promptName == null) {
return Mono.error(new McpError("Prompt name must not be null"));
}
if (this.serverCapabilities.prompts() == null) {
return Mono.error(new McpError("Server must be configured with prompt capabilities"));
}
return Mono.defer(() -> {
McpServerFeatures.AsyncPromptSpecification removed = this.prompts.remove(promptName);
if (removed != null) {
logger.debug("Removed prompt handler: {}", promptName);
// Servers that declared the listChanged capability SHOULD send a
// notification, when the list of available prompts changes
if (this.serverCapabilities.prompts().listChanged()) {
return this.notifyPromptsListChanged();
}
return Mono.empty();
}
return Mono.error(new McpError("Prompt with name '" + promptName + "' not found"));
});
}
@Override
public Mono<Void> notifyPromptsListChanged() {
return this.mcpTransportProvider.notifyClients(McpSchema.METHOD_NOTIFICATION_PROMPTS_LIST_CHANGED, null);
}
private McpServerSession.RequestHandler<McpSchema.ListPromptsResult> promptsListRequestHandler() {
return (exchange, params) -> {
// TODO: Implement pagination
// McpSchema.PaginatedRequest request = objectMapper.convertValue(params,
// new TypeReference<McpSchema.PaginatedRequest>() {
// });
var promptList = this.prompts.values()
.stream()
.map(McpServerFeatures.AsyncPromptSpecification::prompt)
.toList();
return Mono.just(new McpSchema.ListPromptsResult(promptList, null));
};
}
private McpServerSession.RequestHandler<McpSchema.GetPromptResult> promptsGetRequestHandler() {
return (exchange, params) -> {
McpSchema.GetPromptRequest promptRequest = objectMapper.convertValue(params,
new TypeReference<McpSchema.GetPromptRequest>() {
});
// Implement prompt retrieval logic here
McpServerFeatures.AsyncPromptSpecification specification = this.prompts.get(promptRequest.name());
if (specification == null) {
return Mono.error(new McpError("Prompt not found: " + promptRequest.name()));
}
return specification.promptHandler().apply(exchange, promptRequest);
};
}
// ---------------------------------------
// Logging Management
// ---------------------------------------
@Override
public Mono<Void> loggingNotification(LoggingMessageNotification loggingMessageNotification) {
if (loggingMessageNotification == null) {
return Mono.error(new McpError("Logging message must not be null"));
}
Map<String, Object> params = this.objectMapper.convertValue(loggingMessageNotification,
new TypeReference<Map<String, Object>>() {
});
if (loggingMessageNotification.level().level() < minLoggingLevel.level()) {
return Mono.empty();
}
return this.mcpTransportProvider.notifyClients(McpSchema.METHOD_NOTIFICATION_MESSAGE, params);
}
private McpServerSession.RequestHandler<Void> setLoggerRequestHandler() {
return (exchange, params) -> {
this.minLoggingLevel = objectMapper.convertValue(params, new TypeReference<LoggingLevel>() {
});
return Mono.empty();
};
}
// ---------------------------------------
// Sampling
// ---------------------------------------
@Override
void setProtocolVersions(List<String> protocolVersions) {
this.protocolVersions = protocolVersions;
}
}
}

McpSyncServer

同步服务端的实现,封装了McpSyncServer以提供阻塞操作,其余功能方法和McpAsyncServer保持一致

public class McpSyncServer {
private final McpAsyncServer asyncServer;
public McpSyncServer(McpAsyncServer asyncServer) {
Assert.notNull(asyncServer, "Async server must not be null");
this.asyncServer = asyncServer;
}
public void addTool(McpServerFeatures.SyncToolSpecification toolHandler) {
this.asyncServer.addTool(McpServerFeatures.AsyncToolSpecification.fromSync(toolHandler)).block();
}
public void removeTool(String toolName) {
this.asyncServer.removeTool(toolName).block();
}
public void addResource(McpServerFeatures.SyncResourceSpecification resourceHandler) {
this.asyncServer.addResource(McpServerFeatures.AsyncResourceSpecification.fromSync(resourceHandler)).block();
}
public void removeResource(String resourceUri) {
this.asyncServer.removeResource(resourceUri).block();
}
public void addPrompt(McpServerFeatures.SyncPromptSpecification promptSpecification) {
this.asyncServer.addPrompt(McpServerFeatures.AsyncPromptSpecification.fromSync(promptSpecification)).block();
}
public void removePrompt(String promptName) {
this.asyncServer.removePrompt(promptName).block();
}
public void notifyToolsListChanged() {
this.asyncServer.notifyToolsListChanged().block();
}
public McpSchema.ServerCapabilities getServerCapabilities() {
return this.asyncServer.getServerCapabilities();
}
public McpSchema.Implementation getServerInfo() {
return this.asyncServer.getServerInfo();
}
public void notifyResourcesListChanged() {
this.asyncServer.notifyResourcesListChanged().block();
}
public void notifyPromptsListChanged() {
this.asyncServer.notifyPromptsListChanged().block();
}
public void loggingNotification(LoggingMessageNotification loggingMessageNotification) {
this.asyncServer.loggingNotification(loggingMessageNotification).block();
}
public void closeGracefully() {
this.asyncServer.closeGracefully().block();
}
public void close() {
this.asyncServer.close();
}
public McpAsyncServer getAsyncServer() {
return this.asyncServer;
}
}

McpTransport(传输层接口)

MCP中定义异步传输层的核心接口,负责管理客户端和服务器端之间的双向通信,提供了自定义传输机制的基础,具体功能如下:

  • 管理传输连接的生命周期:包括连接到建立、关闭和资源释放
  • 处理来自服务器的消息和错误:
  • 将客户端生成的消息发送到服务器
public interface McpTransport {
// 关闭传输连接并释放相关资源
default void close() {
this.closeGracefully().subscribe();
}
// 异步关闭传输连接并释放相关资源
Mono<Void> closeGracefully();
// 异步发送消息到服务器
Mono<Void> sendMessage(JSONRPCMessage message);
// 将给定数据反序列化为指定类型的对象
<T> T unmarshalFrom(Object data, TypeReference<T> typeRef);
}

McpClientTransport(客户端传输层接口)

通过connect方法,建立客户端与MCP服务器之间的连接

public interface McpClientTransport extends McpTransport {
Mono<Void> connect(Function<Mono<McpSchema.JSONRPCMessage>, Mono<McpSchema.JSONRPCMessage>> handler);
}

StdioClientTransport

通过标准输入输出流(stdin/stdout)与服务器进程进行通信

  • connect:启动服务器进程并初始化消息处理流。设置进程的命令、参数和环境,然后启动输入、输出和错误处理线程
  • sendMessage:发送JSON-RPC消息到服务器进程
  • closeGracefully:优雅地关闭传输、销毁进程并释放调度器资源,发送TERM信号给进程并等待其退出
public class StdioClientTransport implements McpClientTransport {
private static final Logger logger = LoggerFactory.getLogger(StdioClientTransport.class);
private final Sinks.Many<JSONRPCMessage> inboundSink;
private final Sinks.Many<JSONRPCMessage> outboundSink;
private Process process;
private ObjectMapper objectMapper;
private Scheduler inboundScheduler;
private Scheduler outboundScheduler;
private Scheduler errorScheduler;
private final ServerParameters params;
private final Sinks.Many<String> errorSink;
private volatile boolean isClosing = false;
// visible for tests
private Consumer<String> stdErrorHandler = error -> logger.info("STDERR Message received: {}", error);
public StdioClientTransport(ServerParameters params) {
this(params, new ObjectMapper());
}
public StdioClientTransport(ServerParameters params, ObjectMapper objectMapper) {
Assert.notNull(params, "The params can not be null");
Assert.notNull(objectMapper, "The ObjectMapper can not be null");
this.inboundSink = Sinks.many().unicast().onBackpressureBuffer();
this.outboundSink = Sinks.many().unicast().onBackpressureBuffer();
this.params = params;
this.objectMapper = objectMapper;
this.errorSink = Sinks.many().unicast().onBackpressureBuffer();
// Start threads
this.inboundScheduler = Schedulers.fromExecutorService(Executors.newSingleThreadExecutor(), "inbound");
this.outboundScheduler = Schedulers.fromExecutorService(Executors.newSingleThreadExecutor(), "outbound");
this.errorScheduler = Schedulers.fromExecutorService(Executors.newSingleThreadExecutor(), "error");
}
@Override
public Mono<Void> connect(Function<Mono<JSONRPCMessage>, Mono<JSONRPCMessage>> handler) {
return Mono.<Void>fromRunnable(() -> {
handleIncomingMessages(handler);
handleIncomingErrors();
// Prepare command and environment
List<String> fullCommand = new ArrayList<>();
fullCommand.add(params.getCommand());
fullCommand.addAll(params.getArgs());
ProcessBuilder processBuilder = this.getProcessBuilder();
processBuilder.command(fullCommand);
processBuilder.environment().putAll(params.getEnv());
// Start the process
try {
this.process = processBuilder.start();
}
catch (IOException e) {
throw new RuntimeException("Failed to start process with command: " + fullCommand, e);
}
// Validate process streams
if (this.process.getInputStream() == null || process.getOutputStream() == null) {
this.process.destroy();
throw new RuntimeException("Process input or output stream is null");
}
// Start threads
startInboundProcessing();
startOutboundProcessing();
startErrorProcessing();
}).subscribeOn(Schedulers.boundedElastic());
}
protected ProcessBuilder getProcessBuilder() {
return new ProcessBuilder();
}
public void setStdErrorHandler(Consumer<String> errorHandler) {
this.stdErrorHandler = errorHandler;
}
public void awaitForExit() {
try {
this.process.waitFor();
}
catch (InterruptedException e) {
throw new RuntimeException("Process interrupted", e);
}
}
private void startErrorProcessing() {
this.errorScheduler.schedule(() -> {
try (BufferedReader processErrorReader = new BufferedReader(
new InputStreamReader(process.getErrorStream()))) {
String line;
while (!isClosing && (line = processErrorReader.readLine()) != null) {
try {
if (!this.errorSink.tryEmitNext(line).isSuccess()) {
if (!isClosing) {
logger.error("Failed to emit error message");
}
break;
}
}
catch (Exception e) {
if (!isClosing) {
logger.error("Error processing error message", e);
}
break;
}
}
}
catch (IOException e) {
if (!isClosing) {
logger.error("Error reading from error stream", e);
}
}
finally {
isClosing = true;
errorSink.tryEmitComplete();
}
});
}
private void handleIncomingMessages(Function<Mono<JSONRPCMessage>, Mono<JSONRPCMessage>> inboundMessageHandler) {
this.inboundSink.asFlux()
.flatMap(message -> Mono.just(message)
.transform(inboundMessageHandler)
.contextWrite(ctx -> ctx.put("observation", "myObservation")))
.subscribe();
}
private void handleIncomingErrors() {
this.errorSink.asFlux().subscribe(e -> {
this.stdErrorHandler.accept(e);
});
}
@Override
public Mono<Void> sendMessage(JSONRPCMessage message) {
if (this.outboundSink.tryEmitNext(message).isSuccess()) {
// TODO: essentially we could reschedule ourselves in some time and make
// another attempt with the already read data but pause reading until
// success
// In this approach we delegate the retry and the backpressure onto the
// caller. This might be enough for most cases.
return Mono.empty();
}
else {
return Mono.error(new RuntimeException("Failed to enqueue message"));
}
}
private void startInboundProcessing() {
this.inboundScheduler.schedule(() -> {
try (BufferedReader processReader = new BufferedReader(new InputStreamReader(process.getInputStream()))) {
String line;
while (!isClosing && (line = processReader.readLine()) != null) {
try {
JSONRPCMessage message = McpSchema.deserializeJsonRpcMessage(this.objectMapper, line);
if (!this.inboundSink.tryEmitNext(message).isSuccess()) {
if (!isClosing) {
logger.error("Failed to enqueue inbound message: {}", message);
}
break;
}
}
catch (Exception e) {
if (!isClosing) {
logger.error("Error processing inbound message for line: " + line, e);
}
break;
}
}
}
catch (IOException e) {
if (!isClosing) {
logger.error("Error reading from input stream", e);
}
}
finally {
isClosing = true;
inboundSink.tryEmitComplete();
}
});
}
private void startOutboundProcessing() {
this.handleOutbound(messages -> messages
// this bit is important since writes come from user threads and we
// want to ensure that the actual writing happens on a dedicated thread
.publishOn(outboundScheduler)
.handle((message, s) -> {
if (message != null && !isClosing) {
try {
String jsonMessage = objectMapper.writeValueAsString(message);
// Escape any embedded newlines in the JSON message as per spec:
// https://spec.modelcontextprotocol.io/specification/basic/transports/#stdio
// - Messages are delimited by newlines, and MUST NOT contain
// embedded newlines.
jsonMessage = jsonMessage.replace("\r\n", "\\n").replace("\n", "\\n").replace("\r", "\\n");
var os = this.process.getOutputStream();
synchronized (os) {
os.write(jsonMessage.getBytes(StandardCharsets.UTF_8));
os.write("\n".getBytes(StandardCharsets.UTF_8));
os.flush();
}
s.next(message);
}
catch (IOException e) {
s.error(new RuntimeException(e));
}
}
}));
}
protected void handleOutbound(Function<Flux<JSONRPCMessage>, Flux<JSONRPCMessage>> outboundConsumer) {
outboundConsumer.apply(outboundSink.asFlux()).doOnComplete(() -> {
isClosing = true;
outboundSink.tryEmitComplete();
}).doOnError(e -> {
if (!isClosing) {
logger.error("Error in outbound processing", e);
isClosing = true;
outboundSink.tryEmitComplete();
}
}).subscribe();
}
@Override
public Mono<Void> closeGracefully() {
return Mono.fromRunnable(() -> {
isClosing = true;
logger.debug("Initiating graceful shutdown");
}).then(Mono.defer(() -> {
// First complete all sinks to stop accepting new messages
inboundSink.tryEmitComplete();
outboundSink.tryEmitComplete();
errorSink.tryEmitComplete();
// Give a short time for any pending messages to be processed
return Mono.delay(Duration.ofMillis(100));
})).then(Mono.defer(() -> {
logger.debug("Sending TERM to process");
if (this.process != null) {
this.process.destroy();
return Mono.fromFuture(process.onExit());
}
else {
logger.warn("Process not started");
return Mono.empty();
}
})).doOnNext(process -> {
if (process.exitValue() != 0) {
logger.warn("Process terminated with code " + process.exitValue());
}
}).then(Mono.fromRunnable(() -> {
try {
// The Threads are blocked on readLine so disposeGracefully would not
// interrupt them, therefore we issue an async hard dispose.
inboundScheduler.dispose();
errorScheduler.dispose();
outboundScheduler.dispose();
logger.debug("Graceful shutdown completed");
}
catch (Exception e) {
logger.error("Error during graceful shutdown", e);
}
})).then().subscribeOn(Schedulers.boundedElastic());
}
public Sinks.Many<String> getErrorSink() {
return this.errorSink;
}
@Override
public <T> T unmarshalFrom(Object data, TypeReference<T> typeRef) {
return this.objectMapper.convertValue(data, typeRef);
}
}

WebFluxSseClientTransport

基于Server-Sent Events(SSE)的MCP客户端传输实现类,用于与MCP服务器建立双向通信通道,基于Spring WebFlux的响应式编程

  • connect:与MCP服务器建立SSE连接,并设置消息处理管道
    • 建立SSE连接
    • 等待服务器发送包含端点的endpoint事件
    • 设置处理传入JSON-RPC消息的处理器
  • sendMessage:将JSON-RPC消息发送到服务器
  • eventStream:初始化并启动SSE事件处理流
  • closeGracefully:优雅地关闭传输,清理所有资源(如订阅和调度器)
public class WebFluxSseClientTransport implements McpClientTransport {
private static final Logger logger = LoggerFactory.getLogger(WebFluxSseClientTransport.class);
private static final String MESSAGE_EVENT_TYPE = "message";
private static final String ENDPOINT_EVENT_TYPE = "endpoint";
private static final String SSE_ENDPOINT = "/sse";
private static final ParameterizedTypeReference<ServerSentEvent<String>> SSE_TYPE = new ParameterizedTypeReference<>() {
};
private final WebClient webClient;
protected ObjectMapper objectMapper;
private Disposable inboundSubscription;
private volatile boolean isClosing = false;
protected final Sinks.One<String> messageEndpointSink = Sinks.one();
public WebFluxSseClientTransport(WebClient.Builder webClientBuilder) {
this(webClientBuilder, new ObjectMapper());
}
public WebFluxSseClientTransport(WebClient.Builder webClientBuilder, ObjectMapper objectMapper) {
Assert.notNull(objectMapper, "ObjectMapper must not be null");
Assert.notNull(webClientBuilder, "WebClient.Builder must not be null");
this.objectMapper = objectMapper;
this.webClient = webClientBuilder.build();
}
@Override
public Mono<Void> connect(Function<Mono<JSONRPCMessage>, Mono<JSONRPCMessage>> handler) {
Flux<ServerSentEvent<String>> events = eventStream();
this.inboundSubscription = events.concatMap(event -> Mono.just(event).<JSONRPCMessage>handle((e, s) -> {
if (ENDPOINT_EVENT_TYPE.equals(event.event())) {
String messageEndpointUri = event.data();
if (messageEndpointSink.tryEmitValue(messageEndpointUri).isSuccess()) {
s.complete();
}
else {
// TODO: clarify with the spec if multiple events can be
// received
s.error(new McpError("Failed to handle SSE endpoint event"));
}
}
else if (MESSAGE_EVENT_TYPE.equals(event.event())) {
try {
JSONRPCMessage message = McpSchema.deserializeJsonRpcMessage(this.objectMapper, event.data());
s.next(message);
}
catch (IOException ioException) {
s.error(ioException);
}
}
else {
s.error(new McpError("Received unrecognized SSE event type: " + event.event()));
}
}).transform(handler)).subscribe();
// The connection is established once the server sends the endpoint event
return messageEndpointSink.asMono().then();
}
@Override
public Mono<Void> sendMessage(JSONRPCMessage message) {
// The messageEndpoint is the endpoint URI to send the messages
// It is provided by the server as part of the endpoint event
return messageEndpointSink.asMono().flatMap(messageEndpointUri -> {
if (isClosing) {
return Mono.empty();
}
try {
String jsonText = this.objectMapper.writeValueAsString(message);
return webClient.post()
.uri(messageEndpointUri)
.contentType(MediaType.APPLICATION_JSON)
.bodyValue(jsonText)
.retrieve()
.toBodilessEntity()
.doOnSuccess(response -> {
logger.debug("Message sent successfully");
})
.doOnError(error -> {
if (!isClosing) {
logger.error("Error sending message: {}", error.getMessage());
}
});
}
catch (IOException e) {
if (!isClosing) {
return Mono.error(new RuntimeException("Failed to serialize message", e));
}
return Mono.empty();
}
}).then(); // TODO: Consider non-200-ok response
}
// visible for tests
protected Flux<ServerSentEvent<String>> eventStream() {// @formatter:off
return this.webClient
.get()
.uri(SSE_ENDPOINT)
.accept(MediaType.TEXT_EVENT_STREAM)
.retrieve()
.bodyToFlux(SSE_TYPE)
.retryWhen(Retry.from(retrySignal -> retrySignal.handle(inboundRetryHandler)));
} // @formatter:on
private BiConsumer<RetrySignal, SynchronousSink<Object>> inboundRetryHandler = (retrySpec, sink) -> {
if (isClosing) {
logger.debug("SSE connection closed during shutdown");
sink.error(retrySpec.failure());
return;
}
if (retrySpec.failure() instanceof IOException) {
logger.debug("Retrying SSE connection after IO error");
sink.next(retrySpec);
return;
}
logger.error("Fatal SSE error, not retrying: {}", retrySpec.failure().getMessage());
sink.error(retrySpec.failure());
};
@Override
public Mono<Void> closeGracefully() { // @formatter:off
return Mono.fromRunnable(() -> {
isClosing = true;
if (inboundSubscription != null) {
inboundSubscription.dispose();
}
})
.then()
.subscribeOn(Schedulers.boundedElastic());
} // @formatter:on
@Override
public <T> T unmarshalFrom(Object data, TypeReference<T> typeRef) {
return this.objectMapper.convertValue(data, typeRef);
}
}

HttpClientSseClientTransport

基于Server-Sent Events(SSE)的MCP客户端传输实现类,用于与MCP服务器建立双向通信通道。使用Java的HttpClient进行通信

  • connect:与MCP服务器建立SSE连接,并设置消息处理管道
    • 建立SSE连接(订阅SSE事件 + 处理SSE事件)
    • 等待服务器发送包含端点的endpoint事件
    • 设置处理传入JSON-RPC消息的处理器
  • sendMessage:将JSON-RPC消息发送到服务器
  • closeGracefully:优雅地关闭传输,清理所有资源(如订阅和调度器)
public class HttpClientSseClientTransport implements McpClientTransport {
private static final Logger logger = LoggerFactory.getLogger(HttpClientSseClientTransport.class);
private static final String MESSAGE_EVENT_TYPE = "message";
private static final String ENDPOINT_EVENT_TYPE = "endpoint";
private static final String SSE_ENDPOINT = "/sse";
private final String baseUri;
private final FlowSseClient sseClient;
private final HttpClient httpClient;
protected ObjectMapper objectMapper;
private volatile boolean isClosing = false;
private final CountDownLatch closeLatch = new CountDownLatch(1);
private final AtomicReference<String> messageEndpoint = new AtomicReference<>();
private final AtomicReference<CompletableFuture<Void>> connectionFuture = new AtomicReference<>();
public HttpClientSseClientTransport(String baseUri) {
this(HttpClient.newBuilder(), baseUri, new ObjectMapper());
}
public HttpClientSseClientTransport(HttpClient.Builder clientBuilder, String baseUri, ObjectMapper objectMapper) {
Assert.notNull(objectMapper, "ObjectMapper must not be null");
Assert.hasText(baseUri, "baseUri must not be empty");
Assert.notNull(clientBuilder, "clientBuilder must not be null");
this.baseUri = baseUri;
this.objectMapper = objectMapper;
this.httpClient = clientBuilder.connectTimeout(Duration.ofSeconds(10)).build();
this.sseClient = new FlowSseClient(this.httpClient);
}
@Override
public Mono<Void> connect(Function<Mono<JSONRPCMessage>, Mono<JSONRPCMessage>> handler) {
CompletableFuture<Void> future = new CompletableFuture<>();
connectionFuture.set(future);
sseClient.subscribe(this.baseUri + SSE_ENDPOINT, new FlowSseClient.SseEventHandler() {
@Override
public void onEvent(SseEvent event) {
if (isClosing) {
return;
}
try {
if (ENDPOINT_EVENT_TYPE.equals(event.type())) {
String endpoint = event.data();
messageEndpoint.set(endpoint);
closeLatch.countDown();
future.complete(null);
}
else if (MESSAGE_EVENT_TYPE.equals(event.type())) {
JSONRPCMessage message = McpSchema.deserializeJsonRpcMessage(objectMapper, event.data());
handler.apply(Mono.just(message)).subscribe();
}
else {
logger.error("Received unrecognized SSE event type: {}", event.type());
}
}
catch (IOException e) {
logger.error("Error processing SSE event", e);
future.completeExceptionally(e);
}
}
@Override
public void onError(Throwable error) {
if (!isClosing) {
logger.error("SSE connection error", error);
future.completeExceptionally(error);
}
}
});
return Mono.fromFuture(future);
}
@Override
public Mono<Void> sendMessage(JSONRPCMessage message) {
if (isClosing) {
return Mono.empty();
}
try {
if (!closeLatch.await(10, TimeUnit.SECONDS)) {
return Mono.error(new McpError("Failed to wait for the message endpoint"));
}
}
catch (InterruptedException e) {
return Mono.error(new McpError("Failed to wait for the message endpoint"));
}
String endpoint = messageEndpoint.get();
if (endpoint == null) {
return Mono.error(new McpError("No message endpoint available"));
}
try {
String jsonText = this.objectMapper.writeValueAsString(message);
HttpRequest request = HttpRequest.newBuilder()
.uri(URI.create(this.baseUri + endpoint))
.header("Content-Type", "application/json")
.POST(HttpRequest.BodyPublishers.ofString(jsonText))
.build();
return Mono.fromFuture(
httpClient.sendAsync(request, HttpResponse.BodyHandlers.discarding()).thenAccept(response -> {
if (response.statusCode() != 200 && response.statusCode() != 201 && response.statusCode() != 202
&& response.statusCode() != 206) {
logger.error("Error sending message: {}", response.statusCode());
}
}));
}
catch (IOException e) {
if (!isClosing) {
return Mono.error(new RuntimeException("Failed to serialize message", e));
}
return Mono.empty();
}
}
@Override
public Mono<Void> closeGracefully() {
return Mono.fromRunnable(() -> {
isClosing = true;
CompletableFuture<Void> future = connectionFuture.get();
if (future != null && !future.isDone()) {
future.cancel(true);
}
});
}
@Override
public <T> T unmarshalFrom(Object data, TypeReference<T> typeRef) {
return this.objectMapper.convertValue(data, typeRef);
}
}

ClientTransport对比总结

特性StdioClientTransportWebFluxSseClientTransportHttpClientSseClientTransport
底层技术基于标准的输入输出流基于Spring WebFlux的响应式编程基于Java的HttpClient的自定义SSE客户端
通信协议通过标准输入输出流传HTTP + SSEHTTP + SSE
消息传输方式双向通过标准输入输出流传输服务器到客户端:SSE客户端到服务器:HTTP POST服务器到客户端:SSE客户端到服务器:HTTP POST
错误处理通过标准错误流和日志处理错误通过WebFlux到错误处理机制处理连接和消息错误通过自定义SSE客户端和HttpClient处理错误
资源管理手动管理管理进程和线程资源,支持优雅关闭使用WebFlux到资源管理机制,支持自动释放资源使用HttpClient的资源管理机制,支持手动释放资源
扩展性低,主要用于本地进程通信高,支持高并发和低延迟的响应式处理中,可通过自定义HttpClient和SSE逻辑扩展
适用场景本地进程间的通信或命令行工具集成微服务架构或需要高并发处理的分布式系统轻量级HTTP通信的场景

在消息传输方式方面,为什么要这样设计?

  • SSE的特性:SSE单向,服务器可主动向客户端推送消息,但客户端无法通过SSE向服务器发送消息
  • 双向通信需求:为了实现客户端到服务器的消息传输,需额外的机制(HTTP POST)
  • 分离关注点:SSE负责服务器到客户端端实时消息推送,HTTP POST负责客户端到服务器的消息发送,职责清晰

McpServerTransport(服务端传输层接口)

public interface McpServerTransport extends McpTransport {
}

StdioMcpSessionTransport

StdioServerTransportProvider的内部类,

Terminal window
private class StdioMcpSessionTransport implements McpServerTransport {
private final Sinks.Many<JSONRPCMessage> inboundSink;
private final Sinks.Many<JSONRPCMessage> outboundSink;
private final AtomicBoolean isStarted = new AtomicBoolean(false);
private Scheduler inboundScheduler;
private Scheduler outboundScheduler;
private final Sinks.One<Void> outboundReady = Sinks.one();
public StdioMcpSessionTransport() {
this.inboundSink = Sinks.many().unicast().onBackpressureBuffer();
this.outboundSink = Sinks.many().unicast().onBackpressureBuffer();
// Use bounded schedulers for better resource management
this.inboundScheduler = Schedulers.fromExecutorService(Executors.newSingleThreadExecutor(),
"stdio-inbound");
this.outboundScheduler = Schedulers.fromExecutorService(Executors.newSingleThreadExecutor(),
"stdio-outbound");
}
@Override
public Mono<Void> sendMessage(McpSchema.JSONRPCMessage message) {
return Mono.zip(inboundReady.asMono(), outboundReady.asMono()).then(Mono.defer(() -> {
if (outboundSink.tryEmitNext(message).isSuccess()) {
return Mono.empty();
}
else {
return Mono.error(new RuntimeException("Failed to enqueue message"));
}
}));
}
@Override
public <T> T unmarshalFrom(Object data, TypeReference<T> typeRef) {
return objectMapper.convertValue(data, typeRef);
}
@Override
public Mono<Void> closeGracefully() {
return Mono.fromRunnable(() -> {
isClosing.set(true);
logger.debug("Session transport closing gracefully");
inboundSink.tryEmitComplete();
});
}
@Override
public void close() {
isClosing.set(true);
logger.debug("Session transport closed");
}
private void initProcessing() {
handleIncomingMessages();
startInboundProcessing();
startOutboundProcessing();
}
private void handleIncomingMessages() {
this.inboundSink.asFlux().flatMap(message -> session.handle(message)).doOnTerminate(() -> {
// The outbound processing will dispose its scheduler upon completion
this.outboundSink.tryEmitComplete();
this.inboundScheduler.dispose();
}).subscribe();
}
private void startInboundProcessing() {
if (isStarted.compareAndSet(false, true)) {
this.inboundScheduler.schedule(() -> {
inboundReady.tryEmitValue(null);
BufferedReader reader = null;
try {
reader = new BufferedReader(new InputStreamReader(inputStream));
while (!isClosing.get()) {
try {
String line = reader.readLine();
if (line == null || isClosing.get()) {
break;
}
logger.debug("Received JSON message: {}", line);
try {
McpSchema.JSONRPCMessage message = McpSchema.deserializeJsonRpcMessage(objectMapper,
line);
if (!this.inboundSink.tryEmitNext(message).isSuccess()) {
// logIfNotClosing("Failed to enqueue message");
break;
}
}
catch (Exception e) {
logIfNotClosing("Error processing inbound message", e);
break;
}
}
catch (IOException e) {
logIfNotClosing("Error reading from stdin", e);
break;
}
}
}
catch (Exception e) {
logIfNotClosing("Error in inbound processing", e);
}
finally {
isClosing.set(true);
if (session != null) {
session.close();
}
inboundSink.tryEmitComplete();
}
});
}
}
private void startOutboundProcessing() {
Function<Flux<JSONRPCMessage>, Flux<JSONRPCMessage>> outboundConsumer = messages -> messages // @formatter:off
.doOnSubscribe(subscription -> outboundReady.tryEmitValue(null))
.publishOn(outboundScheduler)
.handle((message, sink) -> {
if (message != null && !isClosing.get()) {
try {
String jsonMessage = objectMapper.writeValueAsString(message);
// Escape any embedded newlines in the JSON message as per spec
jsonMessage = jsonMessage.replace("\r\n", "\\n").replace("\n", "\\n").replace("\r", "\\n");
synchronized (outputStream) {
outputStream.write(jsonMessage.getBytes(StandardCharsets.UTF_8));
outputStream.write("\n".getBytes(StandardCharsets.UTF_8));
outputStream.flush();
}
sink.next(message);
}
catch (IOException e) {
if (!isClosing.get()) {
logger.error("Error writing message", e);
sink.error(new RuntimeException(e));
}
else {
logger.debug("Stream closed during shutdown", e);
}
}
}
else if (isClosing.get()) {
sink.complete();
}
})
.doOnComplete(() -> {
isClosing.set(true);
outboundScheduler.dispose();
})
.doOnError(e -> {
if (!isClosing.get()) {
logger.error("Error in outbound processing", e);
isClosing.set(true);
outboundScheduler.dispose();
}
})
.map(msg -> (JSONRPCMessage) msg);
outboundConsumer.apply(outboundSink.asFlux()).subscribe();
} // @formatter:on
private void logIfNotClosing(String message, Exception e) {
if (!isClosing.get()) {
logger.error(message, e);
}
}
}

WebFluxMcpSessionTransport

WebFluxSseServerTransportProvider的内部类

private class WebFluxMcpSessionTransport implements McpServerTransport {
private final FluxSink<ServerSentEvent<?>> sink;
public WebFluxMcpSessionTransport(FluxSink<ServerSentEvent<?>> sink) {
this.sink = sink;
}
@Override
public Mono<Void> sendMessage(McpSchema.JSONRPCMessage message) {
return Mono.fromSupplier(() -> {
try {
return objectMapper.writeValueAsString(message);
}
catch (IOException e) {
throw Exceptions.propagate(e);
}
}).doOnNext(jsonText -> {
ServerSentEvent<Object> event = ServerSentEvent.builder()
.event(MESSAGE_EVENT_TYPE)
.data(jsonText)
.build();
sink.next(event);
}).doOnError(e -> {
// TODO log with sessionid
Throwable exception = Exceptions.unwrap(e);
sink.error(exception);
}).then();
}
@Override
public <T> T unmarshalFrom(Object data, TypeReference<T> typeRef) {
return objectMapper.convertValue(data, typeRef);
}
@Override
public Mono<Void> closeGracefully() {
return Mono.fromRunnable(sink::complete);
}
@Override
public void close() {
sink.complete();
}
}

HttpServletMcpSessionTransport

HttpServletSseServerTransportProvider的内部类

private class HttpServletMcpSessionTransport implements McpServerTransport {
private final String sessionId;
private final AsyncContext asyncContext;
private final PrintWriter writer;
HttpServletMcpSessionTransport(String sessionId, AsyncContext asyncContext, PrintWriter writer) {
this.sessionId = sessionId;
this.asyncContext = asyncContext;
this.writer = writer;
logger.debug("Session transport {} initialized with SSE writer", sessionId);
}
@Override
public Mono<Void> sendMessage(McpSchema.JSONRPCMessage message) {
return Mono.fromRunnable(() -> {
try {
String jsonText = objectMapper.writeValueAsString(message);
sendEvent(writer, MESSAGE_EVENT_TYPE, jsonText);
logger.debug("Message sent to session {}", sessionId);
}
catch (Exception e) {
logger.error("Failed to send message to session {}: {}", sessionId, e.getMessage());
sessions.remove(sessionId);
asyncContext.complete();
}
});
}
@Override
public <T> T unmarshalFrom(Object data, TypeReference<T> typeRef) {
return objectMapper.convertValue(data, typeRef);
}
@Override
public Mono<Void> closeGracefully() {
return Mono.fromRunnable(() -> {
logger.debug("Closing session transport: {}", sessionId);
try {
sessions.remove(sessionId);
asyncContext.complete();
logger.debug("Successfully completed async context for session {}", sessionId);
}
catch (Exception e) {
logger.warn("Failed to complete async context for session {}: {}", sessionId, e.getMessage());
}
});
}
@Override
public void close() {
try {
sessions.remove(sessionId);
asyncContext.complete();
logger.debug("Successfully completed async context for session {}", sessionId);
}
catch (Exception e) {
logger.warn("Failed to complete async context for session {}: {}", sessionId, e.getMessage());
}
}
}

WebMvcMcpSessionTransport

WebMvcSseServerTransportProvider的内部类

private class WebMvcMcpSessionTransport implements McpServerTransport {
private final String sessionId;
private final SseBuilder sseBuilder;
WebMvcMcpSessionTransport(String sessionId, SseBuilder sseBuilder) {
this.sessionId = sessionId;
this.sseBuilder = sseBuilder;
logger.debug("Session transport {} initialized with SSE builder", sessionId);
}
@Override
public Mono<Void> sendMessage(McpSchema.JSONRPCMessage message) {
return Mono.fromRunnable(() -> {
try {
String jsonText = objectMapper.writeValueAsString(message);
sseBuilder.id(sessionId).event(MESSAGE_EVENT_TYPE).data(jsonText);
logger.debug("Message sent to session {}", sessionId);
}
catch (Exception e) {
logger.error("Failed to send message to session {}: {}", sessionId, e.getMessage());
sseBuilder.error(e);
}
});
}
@Override
public <T> T unmarshalFrom(Object data, TypeReference<T> typeRef) {
return objectMapper.convertValue(data, typeRef);
}
@Override
public Mono<Void> closeGracefully() {
return Mono.fromRunnable(() -> {
logger.debug("Closing session transport: {}", sessionId);
try {
sseBuilder.complete();
logger.debug("Successfully completed SSE builder for session {}", sessionId);
}
catch (Exception e) {
logger.warn("Failed to complete SSE builder for session {}: {}", sessionId, e.getMessage());
}
});
}
@Override
public void close() {
try {
sseBuilder.complete();
logger.debug("Successfully completed SSE builder for session {}", sessionId);
}
catch (Exception e) {
logger.warn("Failed to complete SSE builder for session {}: {}", sessionId, e.getMessage());
}
}
}

McpServerTransportProvider(创建、管理McpServerTransport实例)

创建和管理McpServerTransport实例

public interface McpServerTransportProvider {
// 设置会话工厂,用于创建新的客户端会话
void setSessionFactory(McpServerSession.Factory sessionFactory);
// 面向所有连接的客户端发送通知
Mono<Void> notifyClients(String method, Map<String, Object> params);
// 立即关闭所有传输连接并释放资源
default void close() {
this.closeGracefully().subscribe();
}
// 异步地优雅关闭所有传输连接并释放资源
Mono<Void> closeGracefully();
}

StdioServerTransportProvider

创建StdioMcpSessionTransport实例类,通过标准输入输出流进行通信

public class StdioServerTransportProvider implements McpServerTransportProvider {
private static final Logger logger = LoggerFactory.getLogger(StdioServerTransportProvider.class);
private final ObjectMapper objectMapper;
private final InputStream inputStream;
private final OutputStream outputStream;
private McpServerSession session;
private final AtomicBoolean isClosing = new AtomicBoolean(false);
private final Sinks.One<Void> inboundReady = Sinks.one();
public StdioServerTransportProvider() {
this(new ObjectMapper());
}
public StdioServerTransportProvider(ObjectMapper objectMapper) {
this(objectMapper, System.in, System.out);
}
public StdioServerTransportProvider(ObjectMapper objectMapper, InputStream inputStream, OutputStream outputStream) {
Assert.notNull(objectMapper, "The ObjectMapper can not be null");
Assert.notNull(inputStream, "The InputStream can not be null");
Assert.notNull(outputStream, "The OutputStream can not be null");
this.objectMapper = objectMapper;
this.inputStream = inputStream;
this.outputStream = outputStream;
}
@Override
public void setSessionFactory(McpServerSession.Factory sessionFactory) {
// Create a single session for the stdio connection
var transport = new StdioMcpSessionTransport();
this.session = sessionFactory.create(transport);
transport.initProcessing();
}
@Override
public Mono<Void> notifyClients(String method, Map<String, Object> params) {
if (this.session == null) {
return Mono.error(new McpError("No session to close"));
}
return this.session.sendNotification(method, params)
.doOnError(e -> logger.error("Failed to send notification: {}", e.getMessage()));
}
@Override
public Mono<Void> closeGracefully() {
if (this.session == null) {
return Mono.empty();
}
return this.session.closeGracefully();
}
}

WebFluxSseServerTransportProvider

创建WebFluxMcpSessionTransport实例,提供基于WebFlux的传输层实现。

  • getRouterFunction:返回WebFlux的路由函数,定义了传输层的HTTP端点。
    • GET/see:用于建立SSE连接
    • POST/message:用于接收客户端消息
public class WebFluxSseServerTransportProvider implements McpServerTransportProvider {
private static final Logger logger = LoggerFactory.getLogger(WebFluxSseServerTransportProvider.class);
public static final String MESSAGE_EVENT_TYPE = "message";
public static final String ENDPOINT_EVENT_TYPE = "endpoint";
public static final String DEFAULT_SSE_ENDPOINT = "/sse";
private final ObjectMapper objectMapper;
private final String messageEndpoint;
private final String sseEndpoint;
private final RouterFunction<?> routerFunction;
private McpServerSession.Factory sessionFactory;
private final ConcurrentHashMap<String, McpServerSession> sessions = new ConcurrentHashMap<>();
private volatile boolean isClosing = false;
public WebFluxSseServerTransportProvider(ObjectMapper objectMapper, String messageEndpoint, String sseEndpoint) {
Assert.notNull(objectMapper, "ObjectMapper must not be null");
Assert.notNull(messageEndpoint, "Message endpoint must not be null");
Assert.notNull(sseEndpoint, "SSE endpoint must not be null");
this.objectMapper = objectMapper;
this.messageEndpoint = messageEndpoint;
this.sseEndpoint = sseEndpoint;
this.routerFunction = RouterFunctions.route()
.GET(this.sseEndpoint, this::handleSseConnection)
.POST(this.messageEndpoint, this::handleMessage)
.build();
}
public WebFluxSseServerTransportProvider(ObjectMapper objectMapper, String messageEndpoint) {
this(objectMapper, messageEndpoint, DEFAULT_SSE_ENDPOINT);
}
@Override
public void setSessionFactory(McpServerSession.Factory sessionFactory) {
this.sessionFactory = sessionFactory;
}
@Override
public Mono<Void> notifyClients(String method, Map<String, Object> params) {
if (sessions.isEmpty()) {
logger.debug("No active sessions to broadcast message to");
return Mono.empty();
}
logger.debug("Attempting to broadcast message to {} active sessions", sessions.size());
return Flux.fromStream(sessions.values().stream())
.flatMap(session -> session.sendNotification(method, params)
.doOnError(e -> logger.error("Failed to " + "send message to session " + "{}: {}", session.getId(),
e.getMessage()))
.onErrorComplete())
.then();
}
@Override
public Mono<Void> closeGracefully() {
return Flux.fromIterable(sessions.values())
.doFirst(() -> logger.debug("Initiating graceful shutdown with {} active sessions", sessions.size()))
.flatMap(McpServerSession::closeGracefully)
.then();
}
public RouterFunction<?> getRouterFunction() {
return this.routerFunction;
}
private Mono<ServerResponse> handleSseConnection(ServerRequest request) {
if (isClosing) {
return ServerResponse.status(HttpStatus.SERVICE_UNAVAILABLE).bodyValue("Server is shutting down");
}
return ServerResponse.ok()
.contentType(MediaType.TEXT_EVENT_STREAM)
.body(Flux.<ServerSentEvent<?>>create(sink -> {
WebFluxMcpSessionTransport sessionTransport = new WebFluxMcpSessionTransport(sink);
McpServerSession session = sessionFactory.create(sessionTransport);
String sessionId = session.getId();
logger.debug("Created new SSE connection for session: {}", sessionId);
sessions.put(sessionId, session);
// Send initial endpoint event
logger.debug("Sending initial endpoint event to session: {}", sessionId);
sink.next(ServerSentEvent.builder()
.event(ENDPOINT_EVENT_TYPE)
.data(messageEndpoint + "?sessionId=" + sessionId)
.build());
sink.onCancel(() -> {
logger.debug("Session {} cancelled", sessionId);
sessions.remove(sessionId);
});
}), ServerSentEvent.class);
}
private Mono<ServerResponse> handleMessage(ServerRequest request) {
if (isClosing) {
return ServerResponse.status(HttpStatus.SERVICE_UNAVAILABLE).bodyValue("Server is shutting down");
}
if (request.queryParam("sessionId").isEmpty()) {
return ServerResponse.badRequest().bodyValue(new McpError("Session ID missing in message endpoint"));
}
McpServerSession session = sessions.get(request.queryParam("sessionId").get());
return request.bodyToMono(String.class).flatMap(body -> {
try {
McpSchema.JSONRPCMessage message = McpSchema.deserializeJsonRpcMessage(objectMapper, body);
return session.handle(message).flatMap(response -> ServerResponse.ok().build()).onErrorResume(error -> {
logger.error("Error processing message: {}", error.getMessage());
// TODO: instead of signalling the error, just respond with 200 OK
// - the error is signalled on the SSE connection
// return ServerResponse.ok().build();
return ServerResponse.status(HttpStatus.INTERNAL_SERVER_ERROR)
.bodyValue(new McpError(error.getMessage()));
});
}
catch (IllegalArgumentException | IOException e) {
logger.error("Failed to deserialize message: {}", e.getMessage());
return ServerResponse.badRequest().bodyValue(new McpError("Invalid message format"));
}
});
}
}

HttpServletSseServerTransportProvider

创建HttpServletMcpSessionTransport实例,基于Servlet API的HTTP服务器传输提供者

  • doGet:处理客户端的GET请求,建立SSE连接
  • doPost:处理客户端的POST请求,接收和处理客户端发送的消息
@WebServlet(asyncSupported = true)
public class HttpServletSseServerTransportProvider extends HttpServlet implements McpServerTransportProvider {
private static final Logger logger = LoggerFactory.getLogger(HttpServletSseServerTransportProvider.class);
public static final String UTF_8 = "UTF-8";
public static final String APPLICATION_JSON = "application/json";
public static final String FAILED_TO_SEND_ERROR_RESPONSE = "Failed to send error response: {}";
public static final String DEFAULT_SSE_ENDPOINT = "/sse";
public static final String MESSAGE_EVENT_TYPE = "message";
public static final String ENDPOINT_EVENT_TYPE = "endpoint";
private final ObjectMapper objectMapper;
private final String messageEndpoint;
private final String sseEndpoint;
private final Map<String, McpServerSession> sessions = new ConcurrentHashMap<>();
private final AtomicBoolean isClosing = new AtomicBoolean(false);
private McpServerSession.Factory sessionFactory;
public HttpServletSseServerTransportProvider(ObjectMapper objectMapper, String messageEndpoint,
String sseEndpoint) {
this.objectMapper = objectMapper;
this.messageEndpoint = messageEndpoint;
this.sseEndpoint = sseEndpoint;
}
public HttpServletSseServerTransportProvider(ObjectMapper objectMapper, String messageEndpoint) {
this(objectMapper, messageEndpoint, DEFAULT_SSE_ENDPOINT);
}
@Override
public void setSessionFactory(McpServerSession.Factory sessionFactory) {
this.sessionFactory = sessionFactory;
}
@Override
public Mono<Void> notifyClients(String method, Map<String, Object> params) {
if (sessions.isEmpty()) {
logger.debug("No active sessions to broadcast message to");
return Mono.empty();
}
logger.debug("Attempting to broadcast message to {} active sessions", sessions.size());
return Flux.fromIterable(sessions.values())
.flatMap(session -> session.sendNotification(method, params)
.doOnError(
e -> logger.error("Failed to send message to session {}: {}", session.getId(), e.getMessage()))
.onErrorComplete())
.then();
}
@Override
protected void doGet(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
String requestURI = request.getRequestURI();
if (!requestURI.endsWith(sseEndpoint)) {
response.sendError(HttpServletResponse.SC_NOT_FOUND);
return;
}
if (isClosing.get()) {
response.sendError(HttpServletResponse.SC_SERVICE_UNAVAILABLE, "Server is shutting down");
return;
}
response.setContentType("text/event-stream");
response.setCharacterEncoding(UTF_8);
response.setHeader("Cache-Control", "no-cache");
response.setHeader("Connection", "keep-alive");
response.setHeader("Access-Control-Allow-Origin", "*");
String sessionId = UUID.randomUUID().toString();
AsyncContext asyncContext = request.startAsync();
asyncContext.setTimeout(0);
PrintWriter writer = response.getWriter();
// Create a new session transport
HttpServletMcpSessionTransport sessionTransport = new HttpServletMcpSessionTransport(sessionId, asyncContext,
writer);
// Create a new session using the session factory
McpServerSession session = sessionFactory.create(sessionTransport);
this.sessions.put(sessionId, session);
// Send initial endpoint event
this.sendEvent(writer, ENDPOINT_EVENT_TYPE, messageEndpoint + "?sessionId=" + sessionId);
}
@Override
protected void doPost(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
if (isClosing.get()) {
response.sendError(HttpServletResponse.SC_SERVICE_UNAVAILABLE, "Server is shutting down");
return;
}
String requestURI = request.getRequestURI();
if (!requestURI.endsWith(messageEndpoint)) {
response.sendError(HttpServletResponse.SC_NOT_FOUND);
return;
}
// Get the session ID from the request parameter
String sessionId = request.getParameter("sessionId");
if (sessionId == null) {
response.setContentType(APPLICATION_JSON);
response.setCharacterEncoding(UTF_8);
response.setStatus(HttpServletResponse.SC_BAD_REQUEST);
String jsonError = objectMapper.writeValueAsString(new McpError("Session ID missing in message endpoint"));
PrintWriter writer = response.getWriter();
writer.write(jsonError);
writer.flush();
return;
}
// Get the session from the sessions map
McpServerSession session = sessions.get(sessionId);
if (session == null) {
response.setContentType(APPLICATION_JSON);
response.setCharacterEncoding(UTF_8);
response.setStatus(HttpServletResponse.SC_NOT_FOUND);
String jsonError = objectMapper.writeValueAsString(new McpError("Session not found: " + sessionId));
PrintWriter writer = response.getWriter();
writer.write(jsonError);
writer.flush();
return;
}
try {
BufferedReader reader = request.getReader();
StringBuilder body = new StringBuilder();
String line;
while ((line = reader.readLine()) != null) {
body.append(line);
}
McpSchema.JSONRPCMessage message = McpSchema.deserializeJsonRpcMessage(objectMapper, body.toString());
// Process the message through the session's handle method
session.handle(message).block(); // Block for Servlet compatibility
response.setStatus(HttpServletResponse.SC_OK);
}
catch (Exception e) {
logger.error("Error processing message: {}", e.getMessage());
try {
McpError mcpError = new McpError(e.getMessage());
response.setContentType(APPLICATION_JSON);
response.setCharacterEncoding(UTF_8);
response.setStatus(HttpServletResponse.SC_INTERNAL_SERVER_ERROR);
String jsonError = objectMapper.writeValueAsString(mcpError);
PrintWriter writer = response.getWriter();
writer.write(jsonError);
writer.flush();
}
catch (IOException ex) {
logger.error(FAILED_TO_SEND_ERROR_RESPONSE, ex.getMessage());
response.sendError(HttpServletResponse.SC_INTERNAL_SERVER_ERROR, "Error processing message");
}
}
}
@Override
public Mono<Void> closeGracefully() {
isClosing.set(true);
logger.debug("Initiating graceful shutdown with {} active sessions", sessions.size());
return Flux.fromIterable(sessions.values()).flatMap(McpServerSession::closeGracefully).then();
}
private void sendEvent(PrintWriter writer, String eventType, String data) throws IOException {
writer.write("event: " + eventType + "\n");
writer.write("data: " + data + "\n\n");
writer.flush();
if (writer.checkError()) {
throw new IOException("Client disconnected");
}
}
@Override
public void destroy() {
closeGracefully().block();
super.destroy();
}
}

WebMvcSseServerTransportProvider

创建WebMvcMcpSessionTransport实例,基于Spring WebMVC的服务端传输提供者,支持通过SSE实现服务端与客户端之间的双向通信

  • getRouterFunction:返回Web MVC的路由函数,定义了传输层的HTTP端点。
    • GET/see:用于建立SSE连接
    • POST/message:用于接收客户端消息
public class WebMvcSseServerTransportProvider implements McpServerTransportProvider {
private static final Logger logger = LoggerFactory.getLogger(WebMvcSseServerTransportProvider.class);
public static final String MESSAGE_EVENT_TYPE = "message";
public static final String ENDPOINT_EVENT_TYPE = "endpoint";
public static final String DEFAULT_SSE_ENDPOINT = "/sse";
private final ObjectMapper objectMapper;
private final String messageEndpoint;
private final String sseEndpoint;
private final RouterFunction<ServerResponse> routerFunction;
private McpServerSession.Factory sessionFactory;
private final ConcurrentHashMap<String, McpServerSession> sessions = new ConcurrentHashMap<>();
private volatile boolean isClosing = false;
public WebMvcSseServerTransportProvider(ObjectMapper objectMapper, String messageEndpoint, String sseEndpoint) {
Assert.notNull(objectMapper, "ObjectMapper must not be null");
Assert.notNull(messageEndpoint, "Message endpoint must not be null");
Assert.notNull(sseEndpoint, "SSE endpoint must not be null");
this.objectMapper = objectMapper;
this.messageEndpoint = messageEndpoint;
this.sseEndpoint = sseEndpoint;
this.routerFunction = RouterFunctions.route()
.GET(this.sseEndpoint, this::handleSseConnection)
.POST(this.messageEndpoint, this::handleMessage)
.build();
}
public WebMvcSseServerTransportProvider(ObjectMapper objectMapper, String messageEndpoint) {
this(objectMapper, messageEndpoint, DEFAULT_SSE_ENDPOINT);
}
@Override
public void setSessionFactory(McpServerSession.Factory sessionFactory) {
this.sessionFactory = sessionFactory;
}
@Override
public Mono<Void> notifyClients(String method, Map<String, Object> params) {
if (sessions.isEmpty()) {
logger.debug("No active sessions to broadcast message to");
return Mono.empty();
}
logger.debug("Attempting to broadcast message to {} active sessions", sessions.size());
return Flux.fromIterable(sessions.values())
.flatMap(session -> session.sendNotification(method, params)
.doOnError(
e -> logger.error("Failed to send message to session {}: {}", session.getId(), e.getMessage()))
.onErrorComplete())
.then();
}
@Override
public Mono<Void> closeGracefully() {
return Flux.fromIterable(sessions.values()).doFirst(() -> {
this.isClosing = true;
logger.debug("Initiating graceful shutdown with {} active sessions", sessions.size());
})
.flatMap(McpServerSession::closeGracefully)
.then()
.doOnSuccess(v -> logger.debug("Graceful shutdown completed"));
}
public RouterFunction<ServerResponse> getRouterFunction() {
return this.routerFunction;
}
private ServerResponse handleSseConnection(ServerRequest request) {
if (this.isClosing) {
return ServerResponse.status(HttpStatus.SERVICE_UNAVAILABLE).body("Server is shutting down");
}
String sessionId = UUID.randomUUID().toString();
logger.debug("Creating new SSE connection for session: {}", sessionId);
// Send initial endpoint event
try {
return ServerResponse.sse(sseBuilder -> {
sseBuilder.onComplete(() -> {
logger.debug("SSE connection completed for session: {}", sessionId);
sessions.remove(sessionId);
});
sseBuilder.onTimeout(() -> {
logger.debug("SSE connection timed out for session: {}", sessionId);
sessions.remove(sessionId);
});
WebMvcMcpSessionTransport sessionTransport = new WebMvcMcpSessionTransport(sessionId, sseBuilder);
McpServerSession session = sessionFactory.create(sessionTransport);
this.sessions.put(sessionId, session);
try {
sseBuilder.id(sessionId)
.event(ENDPOINT_EVENT_TYPE)
.data(messageEndpoint + "?sessionId=" + sessionId);
}
catch (Exception e) {
logger.error("Failed to send initial endpoint event: {}", e.getMessage());
sseBuilder.error(e);
}
}, Duration.ZERO);
}
catch (Exception e) {
logger.error("Failed to send initial endpoint event to session {}: {}", sessionId, e.getMessage());
sessions.remove(sessionId);
return ServerResponse.status(HttpStatus.INTERNAL_SERVER_ERROR).build();
}
}
private ServerResponse handleMessage(ServerRequest request) {
if (this.isClosing) {
return ServerResponse.status(HttpStatus.SERVICE_UNAVAILABLE).body("Server is shutting down");
}
if (!request.param("sessionId").isPresent()) {
return ServerResponse.badRequest().body(new McpError("Session ID missing in message endpoint"));
}
String sessionId = request.param("sessionId").get();
McpServerSession session = sessions.get(sessionId);
if (session == null) {
return ServerResponse.status(HttpStatus.NOT_FOUND).body(new McpError("Session not found: " + sessionId));
}
try {
String body = request.body(String.class);
McpSchema.JSONRPCMessage message = McpSchema.deserializeJsonRpcMessage(objectMapper, body);
// Process the message through the session's handle method
session.handle(message).block(); // Block for WebMVC compatibility
return ServerResponse.ok().build();
}
catch (IllegalArgumentException | IOException e) {
logger.error("Failed to deserialize message: {}", e.getMessage());
return ServerResponse.badRequest().body(new McpError("Invalid message format"));
}
catch (Exception e) {
logger.error("Error handling message: {}", e.getMessage());
return ServerResponse.status(HttpStatus.INTERNAL_SERVER_ERROR).body(new McpError(e.getMessage()));
}
}
}

MCPSeesion(会话层)

处理客户端与服务器之间的通信,支持请求-响应、通知等两种模式,支持同步、异步的会话管理

  • sendRequest:向模型端发送请求,返回指定类型的响应
  • sendNotification:向客户端或服务端发送通知,适用于不需要响应的通知模式
  • closeGracefully:异步关闭会话并释放资源
  • close:同步关闭会话并释放相关资源
public interface McpSession {
<T> Mono<T> sendRequest(String method, Object requestParams, TypeReference<T> typeRef);
default Mono<Void> sendNotification(String method) {
return sendNotification(method, null);
}
Mono<Void> sendNotification(String method, Map<String, Object> params);
Mono<Void> closeGracefully();
void close();
}

McpClientSession

客户端会话实现类,负责管理与服务端之间的双向JSON-RPC通信,提供了如下核心功能

  • 管理通信:处理客户端与服务器之间的请求,响应和通知
  • 异步操作:基于Project Reactor的Mono实现非阻塞通信
  • 会话管理:支持会话的创建、关闭(优雅关闭、立即关闭)
  • 消息处理:管理请求的响应超时、消息的路由和错误处理

内部类的作用:

  • RequestHandler内部接口类:处理传入的JSON-RPC请求
  • NotificationHandler内部接口类:处理传入的JSON-RPC通知

构造器部分的作用

  1. 初始化成员变量:RequestHandler、NotificationHandler的实例对象复制到内部的ConcurrentHashMap中
  2. 建立传输层连接:通过mono.doOnNext方法注册消息处理器
  3. 消息处理逻辑:根据接收到的消息类型,调用不同的处理器
  4. 订阅连接:通过subscribe方法订阅连接,启动消息的接收和处理流程
public class McpClientSession implements McpSession {
private static final Logger logger = LoggerFactory.getLogger(McpClientSession.class);
private final Duration requestTimeout;
private final McpClientTransport transport;
private final ConcurrentHashMap<Object, MonoSink<McpSchema.JSONRPCResponse>> pendingResponses = new ConcurrentHashMap<>();
private final ConcurrentHashMap<String, RequestHandler<?>> requestHandlers = new ConcurrentHashMap<>();
private final ConcurrentHashMap<String, NotificationHandler> notificationHandlers = new ConcurrentHashMap<>();
private final String sessionPrefix = UUID.randomUUID().toString().substring(0, 8);
private final AtomicLong requestCounter = new AtomicLong(0);
private final Disposable connection;
@FunctionalInterface
public interface RequestHandler<T> {
Mono<T> handle(Object params);
}
@FunctionalInterface
public interface NotificationHandler {
Mono<Void> handle(Object params);
}
public McpClientSession(Duration requestTimeout, McpClientTransport transport,
Map<String, RequestHandler<?>> requestHandlers, Map<String, NotificationHandler> notificationHandlers) {
Assert.notNull(requestTimeout, "The requstTimeout can not be null");
Assert.notNull(transport, "The transport can not be null");
Assert.notNull(requestHandlers, "The requestHandlers can not be null");
Assert.notNull(notificationHandlers, "The notificationHandlers can not be null");
this.requestTimeout = requestTimeout;
this.transport = transport;
this.requestHandlers.putAll(requestHandlers);
this.notificationHandlers.putAll(notificationHandlers);
this.connection = this.transport.connect(mono -> mono.doOnNext(message -> {
if (message instanceof McpSchema.JSONRPCResponse response) {
logger.debug("Received Response: {}", response);
var sink = pendingResponses.remove(response.id());
if (sink == null) {
logger.warn("Unexpected response for unkown id {}", response.id());
}
else {
sink.success(response);
}
}
else if (message instanceof McpSchema.JSONRPCRequest request) {
logger.debug("Received request: {}", request);
handleIncomingRequest(request).subscribe(response -> transport.sendMessage(response).subscribe(),
error -> {
var errorResponse = new McpSchema.JSONRPCResponse(McpSchema.JSONRPC_VERSION, request.id(),
null, new McpSchema.JSONRPCResponse.JSONRPCError(
McpSchema.ErrorCodes.INTERNAL_ERROR, error.getMessage(), null));
transport.sendMessage(errorResponse).subscribe();
});
}
else if (message instanceof McpSchema.JSONRPCNotification notification) {
logger.debug("Received notification: {}", notification);
handleIncomingNotification(notification).subscribe(null,
error -> logger.error("Error handling notification: {}", error.getMessage()));
}
})).subscribe();
}
private Mono<McpSchema.JSONRPCResponse> handleIncomingRequest(McpSchema.JSONRPCRequest request) {
return Mono.defer(() -> {
var handler = this.requestHandlers.get(request.method());
if (handler == null) {
MethodNotFoundError error = getMethodNotFoundError(request.method());
return Mono.just(new McpSchema.JSONRPCResponse(McpSchema.JSONRPC_VERSION, request.id(), null,
new McpSchema.JSONRPCResponse.JSONRPCError(McpSchema.ErrorCodes.METHOD_NOT_FOUND,
error.message(), error.data())));
}
return handler.handle(request.params())
.map(result -> new McpSchema.JSONRPCResponse(McpSchema.JSONRPC_VERSION, request.id(), result, null))
.onErrorResume(error -> Mono.just(new McpSchema.JSONRPCResponse(McpSchema.JSONRPC_VERSION, request.id(),
null, new McpSchema.JSONRPCResponse.JSONRPCError(McpSchema.ErrorCodes.INTERNAL_ERROR,
error.getMessage(), null)))); // TODO: add error message
// through the data field
});
}
record MethodNotFoundError(String method, String message, Object data) {
}
public static MethodNotFoundError getMethodNotFoundError(String method) {
switch (method) {
case McpSchema.METHOD_ROOTS_LIST:
return new MethodNotFoundError(method, "Roots not supported",
Map.of("reason", "Client does not have roots capability"));
default:
return new MethodNotFoundError(method, "Method not found: " + method, null);
}
}
private Mono<Void> handleIncomingNotification(McpSchema.JSONRPCNotification notification) {
return Mono.defer(() -> {
var handler = notificationHandlers.get(notification.method());
if (handler == null) {
logger.error("No handler registered for notification method: {}", notification.method());
return Mono.empty();
}
return handler.handle(notification.params());
});
}
private String generateRequestId() {
return this.sessionPrefix + "-" + this.requestCounter.getAndIncrement();
}
@Override
public <T> Mono<T> sendRequest(String method, Object requestParams, TypeReference<T> typeRef) {
String requestId = this.generateRequestId();
return Mono.<McpSchema.JSONRPCResponse>create(sink -> {
this.pendingResponses.put(requestId, sink);
McpSchema.JSONRPCRequest jsonrpcRequest = new McpSchema.JSONRPCRequest(McpSchema.JSONRPC_VERSION, method,
requestId, requestParams);
this.transport.sendMessage(jsonrpcRequest)
// TODO: It's most efficient to create a dedicated Subscriber here
.subscribe(v -> {
}, error -> {
this.pendingResponses.remove(requestId);
sink.error(error);
});
}).timeout(this.requestTimeout).handle((jsonRpcResponse, sink) -> {
if (jsonRpcResponse.error() != null) {
sink.error(new McpError(jsonRpcResponse.error()));
}
else {
if (typeRef.getType().equals(Void.class)) {
sink.complete();
}
else {
sink.next(this.transport.unmarshalFrom(jsonRpcResponse.result(), typeRef));
}
}
});
}
@Override
public Mono<Void> sendNotification(String method, Map<String, Object> params) {
McpSchema.JSONRPCNotification jsonrpcNotification = new McpSchema.JSONRPCNotification(McpSchema.JSONRPC_VERSION,
method, params);
return this.transport.sendMessage(jsonrpcNotification);
}
@Override
public Mono<Void> closeGracefully() {
return Mono.defer(() -> {
this.connection.dispose();
return transport.closeGracefully();
});
}
@Override
public void close() {
this.connection.dispose();
transport.close();
}
}

McpServerSession

服务端会话管理类,负责管理与客户端的双向JSON-RPC通信,提供了如下核心功能

  • 管理会话周期:会话的初始化、消息处理、关闭等
  • 处理JSON-RPC消息:请求、响应和通知的处理
  • 维护会话状态:通过状态机管理会话的初始化状态(未初始化0、初始化中1、已初始化2)
  • 与传输层交互:通过McpServerServerTransport与客户端进行消息的发送和接收

内部类的作用:

  • InitRequestHandler:初始化客户端的请求处理
  • InitNotificationHandler:初始化客户端的通知处理
  • RequestHandler:客户端请求的处理
  • Factory:创建McpServerSession实例

对外暴露的方法,用于与客户端进行交互和管理会话

  • McpServerSession构造器:初始化会话。接收会话id、服务端传输层、初始化处理器、请求处理器、通知处理器
  • getId:当前会话唯一标识符
  • init:在客户端和服务器成功初始化后调用,设置客户端的能力和信息
  • handle:处理来自客户端的JSON-RPC消息,根据消息类型调用相应的处理器
public class McpServerSession implements McpSession {
private static final Logger logger = LoggerFactory.getLogger(McpServerSession.class);
private final ConcurrentHashMap<Object, MonoSink<McpSchema.JSONRPCResponse>> pendingResponses = new ConcurrentHashMap<>();
private final String id;
private final AtomicLong requestCounter = new AtomicLong(0);
private final InitRequestHandler initRequestHandler;
private final InitNotificationHandler initNotificationHandler;
private final Map<String, RequestHandler<?>> requestHandlers;
private final Map<String, NotificationHandler> notificationHandlers;
private final McpServerTransport transport;
private final Sinks.One<McpAsyncServerExchange> exchangeSink = Sinks.one();
private final AtomicReference<McpSchema.ClientCapabilities> clientCapabilities = new AtomicReference<>();
private final AtomicReference<McpSchema.Implementation> clientInfo = new AtomicReference<>();
private static final int STATE_UNINITIALIZED = 0;
private static final int STATE_INITIALIZING = 1;
private static final int STATE_INITIALIZED = 2;
private final AtomicInteger state = new AtomicInteger(STATE_UNINITIALIZED);
public McpServerSession(String id, McpServerTransport transport, InitRequestHandler initHandler,
InitNotificationHandler initNotificationHandler, Map<String, RequestHandler<?>> requestHandlers,
Map<String, NotificationHandler> notificationHandlers) {
this.id = id;
this.transport = transport;
this.initRequestHandler = initHandler;
this.initNotificationHandler = initNotificationHandler;
this.requestHandlers = requestHandlers;
this.notificationHandlers = notificationHandlers;
}
public String getId() {
return this.id;
}
public void init(McpSchema.ClientCapabilities clientCapabilities, McpSchema.Implementation clientInfo) {
this.clientCapabilities.lazySet(clientCapabilities);
this.clientInfo.lazySet(clientInfo);
}
private String generateRequestId() {
return this.id + "-" + this.requestCounter.getAndIncrement();
}
@Override
public <T> Mono<T> sendRequest(String method, Object requestParams, TypeReference<T> typeRef) {
String requestId = this.generateRequestId();
return Mono.<McpSchema.JSONRPCResponse>create(sink -> {
this.pendingResponses.put(requestId, sink);
McpSchema.JSONRPCRequest jsonrpcRequest = new McpSchema.JSONRPCRequest(McpSchema.JSONRPC_VERSION, method,
requestId, requestParams);
this.transport.sendMessage(jsonrpcRequest).subscribe(v -> {
}, error -> {
this.pendingResponses.remove(requestId);
sink.error(error);
});
}).timeout(Duration.ofSeconds(10)).handle((jsonRpcResponse, sink) -> {
if (jsonRpcResponse.error() != null) {
sink.error(new McpError(jsonRpcResponse.error()));
}
else {
if (typeRef.getType().equals(Void.class)) {
sink.complete();
}
else {
sink.next(this.transport.unmarshalFrom(jsonRpcResponse.result(), typeRef));
}
}
});
}
@Override
public Mono<Void> sendNotification(String method, Map<String, Object> params) {
McpSchema.JSONRPCNotification jsonrpcNotification = new McpSchema.JSONRPCNotification(McpSchema.JSONRPC_VERSION,
method, params);
return this.transport.sendMessage(jsonrpcNotification);
}
public Mono<Void> handle(McpSchema.JSONRPCMessage message) {
return Mono.defer(() -> {
// TODO handle errors for communication to without initialization happening
// first
if (message instanceof McpSchema.JSONRPCResponse response) {
logger.debug("Received Response: {}", response);
var sink = pendingResponses.remove(response.id());
if (sink == null) {
logger.warn("Unexpected response for unknown id {}", response.id());
}
else {
sink.success(response);
}
return Mono.empty();
}
else if (message instanceof McpSchema.JSONRPCRequest request) {
logger.debug("Received request: {}", request);
return handleIncomingRequest(request).onErrorResume(error -> {
var errorResponse = new McpSchema.JSONRPCResponse(McpSchema.JSONRPC_VERSION, request.id(), null,
new McpSchema.JSONRPCResponse.JSONRPCError(McpSchema.ErrorCodes.INTERNAL_ERROR,
error.getMessage(), null));
// TODO: Should the error go to SSE or back as POST return?
return this.transport.sendMessage(errorResponse).then(Mono.empty());
}).flatMap(this.transport::sendMessage);
}
else if (message instanceof McpSchema.JSONRPCNotification notification) {
// TODO handle errors for communication to without initialization
// happening first
logger.debug("Received notification: {}", notification);
// TODO: in case of error, should the POST request be signalled?
return handleIncomingNotification(notification)
.doOnError(error -> logger.error("Error handling notification: {}", error.getMessage()));
}
else {
logger.warn("Received unknown message type: {}", message);
return Mono.empty();
}
});
}
private Mono<McpSchema.JSONRPCResponse> handleIncomingRequest(McpSchema.JSONRPCRequest request) {
return Mono.defer(() -> {
Mono<?> resultMono;
if (McpSchema.METHOD_INITIALIZE.equals(request.method())) {
// TODO handle situation where already initialized!
McpSchema.InitializeRequest initializeRequest = transport.unmarshalFrom(request.params(),
new TypeReference<McpSchema.InitializeRequest>() {
});
this.state.lazySet(STATE_INITIALIZING);
this.init(initializeRequest.capabilities(), initializeRequest.clientInfo());
resultMono = this.initRequestHandler.handle(initializeRequest);
}
else {
// TODO handle errors for communication to this session without
// initialization happening first
var handler = this.requestHandlers.get(request.method());
if (handler == null) {
MethodNotFoundError error = getMethodNotFoundError(request.method());
return Mono.just(new McpSchema.JSONRPCResponse(McpSchema.JSONRPC_VERSION, request.id(), null,
new McpSchema.JSONRPCResponse.JSONRPCError(McpSchema.ErrorCodes.METHOD_NOT_FOUND,
error.message(), error.data())));
}
resultMono = this.exchangeSink.asMono().flatMap(exchange -> handler.handle(exchange, request.params()));
}
return resultMono
.map(result -> new McpSchema.JSONRPCResponse(McpSchema.JSONRPC_VERSION, request.id(), result, null))
.onErrorResume(error -> Mono.just(new McpSchema.JSONRPCResponse(McpSchema.JSONRPC_VERSION, request.id(),
null, new McpSchema.JSONRPCResponse.JSONRPCError(McpSchema.ErrorCodes.INTERNAL_ERROR,
error.getMessage(), null)))); // TODO: add error message
// through the data field
});
}
private Mono<Void> handleIncomingNotification(McpSchema.JSONRPCNotification notification) {
return Mono.defer(() -> {
if (McpSchema.METHOD_NOTIFICATION_INITIALIZED.equals(notification.method())) {
this.state.lazySet(STATE_INITIALIZED);
exchangeSink.tryEmitValue(new McpAsyncServerExchange(this, clientCapabilities.get(), clientInfo.get()));
return this.initNotificationHandler.handle();
}
var handler = notificationHandlers.get(notification.method());
if (handler == null) {
logger.error("No handler registered for notification method: {}", notification.method());
return Mono.empty();
}
return this.exchangeSink.asMono().flatMap(exchange -> handler.handle(exchange, notification.params()));
});
}
record MethodNotFoundError(String method, String message, Object data) {
}
static MethodNotFoundError getMethodNotFoundError(String method) {
switch (method) {
case McpSchema.METHOD_ROOTS_LIST:
return new MethodNotFoundError(method, "Roots not supported",
Map.of("reason", "Client does not have roots capability"));
default:
return new MethodNotFoundError(method, "Method not found: " + method, null);
}
}
@Override
public Mono<Void> closeGracefully() {
return this.transport.closeGracefully();
}
@Override
public void close() {
this.transport.close();
}
public interface InitRequestHandler {
Mono<McpSchema.InitializeResult> handle(McpSchema.InitializeRequest initializeRequest);
}
public interface InitNotificationHandler {
Mono<Void> handle();
}
public interface NotificationHandler {
Mono<Void> handle(McpAsyncServerExchange exchange, Object params);
}
public interface RequestHandler<T> {
Mono<T> handle(McpAsyncServerExchange exchange, Object params);
}
@FunctionalInterface
public interface Factory {
McpServerSession create(McpServerTransport sessionTransport);
}
}

McpSchema(数据结构定义类)

MCP的核心数据结构定义类,它基于JSON-RPC2.0规范,并扩展MCP协议所需的特定消息类型、错误码、方法名称等,主要做了以下事情:

  1. 协议版本管理:定义MCP协议、JSON-RPC的版本
  2. 方法名称定义:定义了MCP协议中使用的各种方法名称,标识客户端与服务器之间的通信操作
  3. 错误码定义:定义标准了JSON-RPC错误码,用于处理通信中的错误情况
  4. 消息类型定义:定义MCP协议中使用的消息类型,包括请求(JSONRPCRequest)、通知(JSONRPCNotification)、响应(JSONRPCResponse)
  5. 功能模块数据结构:定义MCP协议中各个功能模块的数据结构,如资源管理、提示词管理、工具管理、采样管理等
public final class McpSchema {
private static final Logger logger = LoggerFactory.getLogger(McpSchema.class);
private McpSchema() {
}
public static final String LATEST_PROTOCOL_VERSION = "2024-11-05";
public static final String JSONRPC_VERSION = "2.0";
// ---------------------------
// Method Names
// ---------------------------
// Lifecycle Methods
public static final String METHOD_INITIALIZE = "initialize";
public static final String METHOD_NOTIFICATION_INITIALIZED = "notifications/initialized";
public static final String METHOD_PING = "ping";
// Tool Methods
public static final String METHOD_TOOLS_LIST = "tools/list";
public static final String METHOD_TOOLS_CALL = "tools/call";
public static final String METHOD_NOTIFICATION_TOOLS_LIST_CHANGED = "notifications/tools/list_changed";
// Resources Methods
public static final String METHOD_RESOURCES_LIST = "resources/list";
public static final String METHOD_RESOURCES_READ = "resources/read";
public static final String METHOD_NOTIFICATION_RESOURCES_LIST_CHANGED = "notifications/resources/list_changed";
public static final String METHOD_RESOURCES_TEMPLATES_LIST = "resources/templates/list";
public static final String METHOD_RESOURCES_SUBSCRIBE = "resources/subscribe";
public static final String METHOD_RESOURCES_UNSUBSCRIBE = "resources/unsubscribe";
// Prompt Methods
public static final String METHOD_PROMPT_LIST = "prompts/list";
public static final String METHOD_PROMPT_GET = "prompts/get";
public static final String METHOD_NOTIFICATION_PROMPTS_LIST_CHANGED = "notifications/prompts/list_changed";
// Logging Methods
public static final String METHOD_LOGGING_SET_LEVEL = "logging/setLevel";
public static final String METHOD_NOTIFICATION_MESSAGE = "notifications/message";
// Roots Methods
public static final String METHOD_ROOTS_LIST = "roots/list";
public static final String METHOD_NOTIFICATION_ROOTS_LIST_CHANGED = "notifications/roots/list_changed";
// Sampling Methods
public static final String METHOD_SAMPLING_CREATE_MESSAGE = "sampling/createMessage";
private static final ObjectMapper OBJECT_MAPPER = new ObjectMapper();
// ---------------------------
// JSON-RPC Error Codes
// ---------------------------
public static final class ErrorCodes {
public static final int PARSE_ERROR = -32700;
public static final int INVALID_REQUEST = -32600;
public static final int METHOD_NOT_FOUND = -32601;
public static final int INVALID_PARAMS = -32602;
public static final int INTERNAL_ERROR = -32603;
}
public sealed interface Request
permits InitializeRequest, CallToolRequest, CreateMessageRequest, CompleteRequest, GetPromptRequest {
}
private static final TypeReference<HashMap<String, Object>> MAP_TYPE_REF = new TypeReference<>() {
};
public static JSONRPCMessage deserializeJsonRpcMessage(ObjectMapper objectMapper, String jsonText)
throws IOException {
logger.debug("Received JSON message: {}", jsonText);
var map = objectMapper.readValue(jsonText, MAP_TYPE_REF);
// Determine message type based on specific JSON structure
if (map.containsKey("method") && map.containsKey("id")) {
return objectMapper.convertValue(map, JSONRPCRequest.class);
}
else if (map.containsKey("method") && !map.containsKey("id")) {
return objectMapper.convertValue(map, JSONRPCNotification.class);
}
else if (map.containsKey("result") || map.containsKey("error")) {
return objectMapper.convertValue(map, JSONRPCResponse.class);
}
throw new IllegalArgumentException("Cannot deserialize JSONRPCMessage: " + jsonText);
}
// ---------------------------
// JSON-RPC Message Types
// ---------------------------
public sealed interface JSONRPCMessage permits JSONRPCRequest, JSONRPCNotification, JSONRPCResponse {
String jsonrpc();
}
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record JSONRPCRequest( // @formatter:off
@JsonProperty("jsonrpc") String jsonrpc,
@JsonProperty("method") String method,
@JsonProperty("id") Object id,
@JsonProperty("params") Object params) implements JSONRPCMessage {
} // @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record JSONRPCNotification( // @formatter:off
@JsonProperty("jsonrpc") String jsonrpc,
@JsonProperty("method") String method,
@JsonProperty("params") Map<String, Object> params) implements JSONRPCMessage {
} // @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record JSONRPCResponse( // @formatter:off
@JsonProperty("jsonrpc") String jsonrpc,
@JsonProperty("id") Object id,
@JsonProperty("result") Object result,
@JsonProperty("error") JSONRPCError error) implements JSONRPCMessage {
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record JSONRPCError(
@JsonProperty("code") int code,
@JsonProperty("message") String message,
@JsonProperty("data") Object data) {
}
}// @formatter:on
// ---------------------------
// Initialization
// ---------------------------
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record InitializeRequest( // @formatter:off
@JsonProperty("protocolVersion") String protocolVersion,
@JsonProperty("capabilities") ClientCapabilities capabilities,
@JsonProperty("clientInfo") Implementation clientInfo) implements Request {
} // @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record InitializeResult( // @formatter:off
@JsonProperty("protocolVersion") String protocolVersion,
@JsonProperty("capabilities") ServerCapabilities capabilities,
@JsonProperty("serverInfo") Implementation serverInfo,
@JsonProperty("instructions") String instructions) {
} // @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record ClientCapabilities( // @formatter:off
@JsonProperty("experimental") Map<String, Object> experimental,
@JsonProperty("roots") RootCapabilities roots,
@JsonProperty("sampling") Sampling sampling) {
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record RootCapabilities(
@JsonProperty("listChanged") Boolean listChanged) {
}
@JsonInclude(JsonInclude.Include.NON_ABSENT)
public record Sampling() {
}
public static Builder builder() {
return new Builder();
}
public static class Builder {
private Map<String, Object> experimental;
private RootCapabilities roots;
private Sampling sampling;
public Builder experimental(Map<String, Object> experimental) {
this.experimental = experimental;
return this;
}
public Builder roots(Boolean listChanged) {
this.roots = new RootCapabilities(listChanged);
return this;
}
public Builder sampling() {
this.sampling = new Sampling();
return this;
}
public ClientCapabilities build() {
return new ClientCapabilities(experimental, roots, sampling);
}
}
}// @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record ServerCapabilities( // @formatter:off
@JsonProperty("experimental") Map<String, Object> experimental,
@JsonProperty("logging") LoggingCapabilities logging,
@JsonProperty("prompts") PromptCapabilities prompts,
@JsonProperty("resources") ResourceCapabilities resources,
@JsonProperty("tools") ToolCapabilities tools) {
@JsonInclude(JsonInclude.Include.NON_ABSENT)
public record LoggingCapabilities() {
}
@JsonInclude(JsonInclude.Include.NON_ABSENT)
public record PromptCapabilities(
@JsonProperty("listChanged") Boolean listChanged) {
}
@JsonInclude(JsonInclude.Include.NON_ABSENT)
public record ResourceCapabilities(
@JsonProperty("subscribe") Boolean subscribe,
@JsonProperty("listChanged") Boolean listChanged) {
}
@JsonInclude(JsonInclude.Include.NON_ABSENT)
public record ToolCapabilities(
@JsonProperty("listChanged") Boolean listChanged) {
}
public static Builder builder() {
return new Builder();
}
public static class Builder {
private Map<String, Object> experimental;
private LoggingCapabilities logging = new LoggingCapabilities();
private PromptCapabilities prompts;
private ResourceCapabilities resources;
private ToolCapabilities tools;
public Builder experimental(Map<String, Object> experimental) {
this.experimental = experimental;
return this;
}
public Builder logging() {
this.logging = new LoggingCapabilities();
return this;
}
public Builder prompts(Boolean listChanged) {
this.prompts = new PromptCapabilities(listChanged);
return this;
}
public Builder resources(Boolean subscribe, Boolean listChanged) {
this.resources = new ResourceCapabilities(subscribe, listChanged);
return this;
}
public Builder tools(Boolean listChanged) {
this.tools = new ToolCapabilities(listChanged);
return this;
}
public ServerCapabilities build() {
return new ServerCapabilities(experimental, logging, prompts, resources, tools);
}
}
} // @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record Implementation(// @formatter:off
@JsonProperty("name") String name,
@JsonProperty("version") String version) {
} // @formatter:on
// Existing Enums and Base Types (from previous implementation)
public enum Role {// @formatter:off
@JsonProperty("user") USER,
@JsonProperty("assistant") ASSISTANT
}// @formatter:on
// ---------------------------
// Resource Interfaces
// ---------------------------
public interface Annotated {
Annotations annotations();
}
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record Annotations( // @formatter:off
@JsonProperty("audience") List<Role> audience,
@JsonProperty("priority") Double priority) {
} // @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record Resource( // @formatter:off
@JsonProperty("uri") String uri,
@JsonProperty("name") String name,
@JsonProperty("description") String description,
@JsonProperty("mimeType") String mimeType,
@JsonProperty("annotations") Annotations annotations) implements Annotated {
} // @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record ResourceTemplate( // @formatter:off
@JsonProperty("uriTemplate") String uriTemplate,
@JsonProperty("name") String name,
@JsonProperty("description") String description,
@JsonProperty("mimeType") String mimeType,
@JsonProperty("annotations") Annotations annotations) implements Annotated {
} // @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record ListResourcesResult( // @formatter:off
@JsonProperty("resources") List<Resource> resources,
@JsonProperty("nextCursor") String nextCursor) {
} // @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record ListResourceTemplatesResult( // @formatter:off
@JsonProperty("resourceTemplates") List<ResourceTemplate> resourceTemplates,
@JsonProperty("nextCursor") String nextCursor) {
} // @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record ReadResourceRequest( // @formatter:off
@JsonProperty("uri") String uri){
} // @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record ReadResourceResult( // @formatter:off
@JsonProperty("contents") List<ResourceContents> contents){
} // @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record SubscribeRequest( // @formatter:off
@JsonProperty("uri") String uri){
} // @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record UnsubscribeRequest( // @formatter:off
@JsonProperty("uri") String uri){
} // @formatter:on
@JsonTypeInfo(use = JsonTypeInfo.Id.DEDUCTION, include = As.PROPERTY)
@JsonSubTypes({ @JsonSubTypes.Type(value = TextResourceContents.class, name = "text"),
@JsonSubTypes.Type(value = BlobResourceContents.class, name = "blob") })
public sealed interface ResourceContents permits TextResourceContents, BlobResourceContents {
String uri();
String mimeType();
}
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record TextResourceContents( // @formatter:off
@JsonProperty("uri") String uri,
@JsonProperty("mimeType") String mimeType,
@JsonProperty("text") String text) implements ResourceContents {
} // @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record BlobResourceContents( // @formatter:off
@JsonProperty("uri") String uri,
@JsonProperty("mimeType") String mimeType,
@JsonProperty("blob") String blob) implements ResourceContents {
} // @formatter:on
// ---------------------------
// Prompt Interfaces
// ---------------------------
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record Prompt( // @formatter:off
@JsonProperty("name") String name,
@JsonProperty("description") String description,
@JsonProperty("arguments") List<PromptArgument> arguments) {
} // @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record PromptArgument( // @formatter:off
@JsonProperty("name") String name,
@JsonProperty("description") String description,
@JsonProperty("required") Boolean required) {
}// @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record PromptMessage( // @formatter:off
@JsonProperty("role") Role role,
@JsonProperty("content") Content content) {
} // @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record ListPromptsResult( // @formatter:off
@JsonProperty("prompts") List<Prompt> prompts,
@JsonProperty("nextCursor") String nextCursor) {
}// @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record GetPromptRequest(// @formatter:off
@JsonProperty("name") String name,
@JsonProperty("arguments") Map<String, Object> arguments) implements Request {
}// @formatter:off
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record GetPromptResult( // @formatter:off
@JsonProperty("description") String description,
@JsonProperty("messages") List<PromptMessage> messages) {
} // @formatter:on
// ---------------------------
// Tool Interfaces
// ---------------------------
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record ListToolsResult( // @formatter:off
@JsonProperty("tools") List<Tool> tools,
@JsonProperty("nextCursor") String nextCursor) {
}// @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record JsonSchema( // @formatter:off
@JsonProperty("type") String type,
@JsonProperty("properties") Map<String, Object> properties,
@JsonProperty("required") List<String> required,
@JsonProperty("additionalProperties") Boolean additionalProperties) {
} // @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record Tool( // @formatter:off
@JsonProperty("name") String name,
@JsonProperty("description") String description,
@JsonProperty("inputSchema") JsonSchema inputSchema) {
public Tool(String name, String description, String schema) {
this(name, description, parseSchema(schema));
}
} // @formatter:on
private static JsonSchema parseSchema(String schema) {
try {
return OBJECT_MAPPER.readValue(schema, JsonSchema.class);
}
catch (IOException e) {
throw new IllegalArgumentException("Invalid schema: " + schema, e);
}
}
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record CallToolRequest(// @formatter:off
@JsonProperty("name") String name,
@JsonProperty("arguments") Map<String, Object> arguments) implements Request {
}// @formatter:off
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record CallToolResult( // @formatter:off
@JsonProperty("content") List<Content> content,
@JsonProperty("isError") Boolean isError) {
} // @formatter:on
// ---------------------------
// Sampling Interfaces
// ---------------------------
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record ModelPreferences(// @formatter:off
@JsonProperty("hints") List<ModelHint> hints,
@JsonProperty("costPriority") Double costPriority,
@JsonProperty("speedPriority") Double speedPriority,
@JsonProperty("intelligencePriority") Double intelligencePriority) {
public static Builder builder() {
return new Builder();
}
public static class Builder {
private List<ModelHint> hints;
private Double costPriority;
private Double speedPriority;
private Double intelligencePriority;
public Builder hints(List<ModelHint> hints) {
this.hints = hints;
return this;
}
public Builder addHint(String name) {
if (this.hints == null) {
this.hints = new ArrayList<>();
}
this.hints.add(new ModelHint(name));
return this;
}
public Builder costPriority(Double costPriority) {
this.costPriority = costPriority;
return this;
}
public Builder speedPriority(Double speedPriority) {
this.speedPriority = speedPriority;
return this;
}
public Builder intelligencePriority(Double intelligencePriority) {
this.intelligencePriority = intelligencePriority;
return this;
}
public ModelPreferences build() {
return new ModelPreferences(hints, costPriority, speedPriority, intelligencePriority);
}
}
} // @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record ModelHint(@JsonProperty("name") String name) {
public static ModelHint of(String name) {
return new ModelHint(name);
}
}
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record SamplingMessage(// @formatter:off
@JsonProperty("role") Role role,
@JsonProperty("content") Content content) {
} // @formatter:on
// Sampling and Message Creation
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record CreateMessageRequest(// @formatter:off
@JsonProperty("messages") List<SamplingMessage> messages,
@JsonProperty("modelPreferences") ModelPreferences modelPreferences,
@JsonProperty("systemPrompt") String systemPrompt,
@JsonProperty("includeContext") ContextInclusionStrategy includeContext,
@JsonProperty("temperature") Double temperature,
@JsonProperty("maxTokens") int maxTokens,
@JsonProperty("stopSequences") List<String> stopSequences,
@JsonProperty("metadata") Map<String, Object> metadata) implements Request {
public enum ContextInclusionStrategy {
@JsonProperty("none") NONE,
@JsonProperty("thisServer") THIS_SERVER,
@JsonProperty("allServers") ALL_SERVERS
}
public static Builder builder() {
return new Builder();
}
public static class Builder {
private List<SamplingMessage> messages;
private ModelPreferences modelPreferences;
private String systemPrompt;
private ContextInclusionStrategy includeContext;
private Double temperature;
private int maxTokens;
private List<String> stopSequences;
private Map<String, Object> metadata;
public Builder messages(List<SamplingMessage> messages) {
this.messages = messages;
return this;
}
public Builder modelPreferences(ModelPreferences modelPreferences) {
this.modelPreferences = modelPreferences;
return this;
}
public Builder systemPrompt(String systemPrompt) {
this.systemPrompt = systemPrompt;
return this;
}
public Builder includeContext(ContextInclusionStrategy includeContext) {
this.includeContext = includeContext;
return this;
}
public Builder temperature(Double temperature) {
this.temperature = temperature;
return this;
}
public Builder maxTokens(int maxTokens) {
this.maxTokens = maxTokens;
return this;
}
public Builder stopSequences(List<String> stopSequences) {
this.stopSequences = stopSequences;
return this;
}
public Builder metadata(Map<String, Object> metadata) {
this.metadata = metadata;
return this;
}
public CreateMessageRequest build() {
return new CreateMessageRequest(messages, modelPreferences, systemPrompt,
includeContext, temperature, maxTokens, stopSequences, metadata);
}
}
}// @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record CreateMessageResult(// @formatter:off
@JsonProperty("role") Role role,
@JsonProperty("content") Content content,
@JsonProperty("model") String model,
@JsonProperty("stopReason") StopReason stopReason) {
public enum StopReason {
@JsonProperty("endTurn") END_TURN,
@JsonProperty("stopSequence") STOP_SEQUENCE,
@JsonProperty("maxTokens") MAX_TOKENS
}
public static Builder builder() {
return new Builder();
}
public static class Builder {
private Role role = Role.ASSISTANT;
private Content content;
private String model;
private StopReason stopReason = StopReason.END_TURN;
public Builder role(Role role) {
this.role = role;
return this;
}
public Builder content(Content content) {
this.content = content;
return this;
}
public Builder model(String model) {
this.model = model;
return this;
}
public Builder stopReason(StopReason stopReason) {
this.stopReason = stopReason;
return this;
}
public Builder message(String message) {
this.content = new TextContent(message);
return this;
}
public CreateMessageResult build() {
return new CreateMessageResult(role, content, model, stopReason);
}
}
}// @formatter:on
// ---------------------------
// Pagination Interfaces
// ---------------------------
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record PaginatedRequest(@JsonProperty("cursor") String cursor) {
}
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record PaginatedResult(@JsonProperty("nextCursor") String nextCursor) {
}
// ---------------------------
// Progress and Logging
// ---------------------------
@JsonIgnoreProperties(ignoreUnknown = true)
public record ProgressNotification(// @formatter:off
@JsonProperty("progressToken") String progressToken,
@JsonProperty("progress") double progress,
@JsonProperty("total") Double total) {
}// @formatter:on
@JsonIgnoreProperties(ignoreUnknown = true)
public record LoggingMessageNotification(// @formatter:off
@JsonProperty("level") LoggingLevel level,
@JsonProperty("logger") String logger,
@JsonProperty("data") String data) {
public static Builder builder() {
return new Builder();
}
public static class Builder {
private LoggingLevel level = LoggingLevel.INFO;
private String logger = "server";
private String data;
public Builder level(LoggingLevel level) {
this.level = level;
return this;
}
public Builder logger(String logger) {
this.logger = logger;
return this;
}
public Builder data(String data) {
this.data = data;
return this;
}
public LoggingMessageNotification build() {
return new LoggingMessageNotification(level, logger, data);
}
}
}// @formatter:on
public enum LoggingLevel {// @formatter:off
@JsonProperty("debug") DEBUG(0),
@JsonProperty("info") INFO(1),
@JsonProperty("notice") NOTICE(2),
@JsonProperty("warning") WARNING(3),
@JsonProperty("error") ERROR(4),
@JsonProperty("critical") CRITICAL(5),
@JsonProperty("alert") ALERT(6),
@JsonProperty("emergency") EMERGENCY(7);
private final int level;
LoggingLevel(int level) {
this.level = level;
}
public int level() {
return level;
}
} // @formatter:on
// ---------------------------
// Autocomplete
// ---------------------------
public record CompleteRequest(PromptOrResourceReference ref, CompleteArgument argument) implements Request {
public sealed interface PromptOrResourceReference permits PromptReference, ResourceReference {
String type();
}
public record PromptReference(// @formatter:off
@JsonProperty("type") String type,
@JsonProperty("name") String name) implements PromptOrResourceReference {
}// @formatter:on
public record ResourceReference(// @formatter:off
@JsonProperty("type") String type,
@JsonProperty("uri") String uri) implements PromptOrResourceReference {
}// @formatter:on
public record CompleteArgument(// @formatter:off
@JsonProperty("name") String name,
@JsonProperty("value") String value) {
}// @formatter:on
}
public record CompleteResult(CompleteCompletion completion) {
public record CompleteCompletion(// @formatter:off
@JsonProperty("values") List<String> values,
@JsonProperty("total") Integer total,
@JsonProperty("hasMore") Boolean hasMore) {
}// @formatter:on
}
// ---------------------------
// Content Types
// ---------------------------
@JsonTypeInfo(use = JsonTypeInfo.Id.NAME, include = JsonTypeInfo.As.PROPERTY, property = "type")
@JsonSubTypes({ @JsonSubTypes.Type(value = TextContent.class, name = "text"),
@JsonSubTypes.Type(value = ImageContent.class, name = "image"),
@JsonSubTypes.Type(value = EmbeddedResource.class, name = "resource") })
public sealed interface Content permits TextContent, ImageContent, EmbeddedResource {
default String type() {
if (this instanceof TextContent) {
return "text";
}
else if (this instanceof ImageContent) {
return "image";
}
else if (this instanceof EmbeddedResource) {
return "resource";
}
throw new IllegalArgumentException("Unknown content type: " + this);
}
}
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record TextContent( // @formatter:off
@JsonProperty("audience") List<Role> audience,
@JsonProperty("priority") Double priority,
@JsonProperty("text") String text) implements Content { // @formatter:on
public TextContent(String content) {
this(null, null, content);
}
}
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record ImageContent( // @formatter:off
@JsonProperty("audience") List<Role> audience,
@JsonProperty("priority") Double priority,
@JsonProperty("data") String data,
@JsonProperty("mimeType") String mimeType) implements Content { // @formatter:on
}
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record EmbeddedResource( // @formatter:off
@JsonProperty("audience") List<Role> audience,
@JsonProperty("priority") Double priority,
@JsonProperty("resource") ResourceContents resource) implements Content { // @formatter:on
}
// ---------------------------
// Roots
// ---------------------------
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record Root( // @formatter:off
@JsonProperty("uri") String uri,
@JsonProperty("name") String name) {
} // @formatter:on
@JsonInclude(JsonInclude.Include.NON_ABSENT)
@JsonIgnoreProperties(ignoreUnknown = true)
public record ListRootsResult( // @formatter:off
@JsonProperty("roots") List<Root> roots) {
} // @formatter:on
}

消息类型

  • JSONRPCMessage:JSON-RPC消息的基接口
  • JSONRPCRequest:JSON-RPC请求消息
  • JSONRPCNotification:JSON-RPC通知消息
  • JSONRPCResponse:JSON-RPC响应消息

错误码

  • ErrorCodes:定义了标准的JSON-RPC错误码,用于在响应中标识错误类型

功能模块数据结构

资源管理(Resources)

  • Resource:服务器可以读取的资源
  • ResourceTemplate:参数化的资源模版
  • ListResourcesResult:资源列表的查询结果
  • ReadResourceRequest:读取资源的请求
  • ReadResourceResult:读取资源的结果

提示词管理(Prompts)

  • Prompt:服务器提供的提示词或提示词模版
  • ListPromptsResult:提示词列表的查询结果
  • GetPromptRequest:获取提示词的请求
  • GetPromptResult:获取提示词的结果

工具管理(Tools)

  • Tool:表示服务器提供的工具
  • ListToolsResult:工具列表的查询结果
  • CallToolRequest:调用工具的请求
  • CallToolResult:调用工具的结果

采样管理(Sampling)

  • SamplingMessage:采样消息
  • CreateMessageRequest:创建采样消息的请求
  • CreateMessageResult:创建采样消息的结果

客户端和服务端能力

  • ClientCapabilitie:客户端的能力,如实验性功能、根目录能力和采样能力
  • ServerCapabilities:服务器的能力,如日志记录、提示词和工具管理能力

日志和进度

  • LoggingMessageNotification:服务器发送给客户端的日志消息
  • ProgressNotification:服务器发送给客户端的进度通知

分页和自动补全

  • PaginatedRequest:分页请求,包含游标字段
  • PaginatedResult:分页结果,包含下一个游标字段
  • CompleteRequest:自动补全请求
  • CompleteResult:自动补全结果

内容类型

  • Content:消息内容的基接口,支持文本、图片和嵌入资源
  • TextContent:文本内容
  • ImageContent:图片内容
  • EmbeddedResource:嵌入的资源内容

根目录管理

  • Root:服务器可以操作的根目录或文件
  • ListRootsResult:根目录列表的查询结果

MCP实战

Stdio

Server

写法同下文Webflux端Server保持一致。完成后打成jar包形式

Client

mcp-servers-config.json

{
"mcpServers": {
"time-weather": {
"command": "java",
"args": [
"-Dspring.ai.mcp.server.stdio=true",
"-Dspring.main.web-application-type=none",
"-Dlogging.pattern.console=",
"-jar",
"/Users/guotao/IdeaProjects/SpringAI-Alibaba-Quickstart/Mcp/mcp-server-stdio/target/mcp-server-stdio-1.0-SNAPSHOT.jar"
],
"env": {}
}
}
}

注意填上Server端jar包的绝对路径

application.yml

server:
port: 8084
spring:
application:
name: mcp-client-stdio
ai:
dashscope:
api-key: ${DASHSCOPE_API_KEY}
mcp:
client:
stdio:
servers-configuration: classpath:/mcp-servers-config.json

启动类

@SpringBootApplication
public class ClientStdioApplication {
public static void main(String[] args) {
SpringApplication.run(ClientStdioApplication.class, args);
}
@Bean
public CommandLineRunner predefinedQuestions(ChatClient.Builder chatClientBuilder, ToolCallbackProvider tools,
ConfigurableApplicationContext context) {
return args -> {
var chatClient = chatClientBuilder
.defaultTools(tools)
.build();
Scanner scanner = new Scanner(System.in);
while (true) {
System.out.print("\n>>> QUESTION: ");
String userInput = scanner.nextLine();
if (userInput.equalsIgnoreCase("exit")) {
break;
}
System.out.println("\n>>> ASSISTANT: " + chatClient.prompt(userInput).call().content());
}
scanner.close();
context.close();
};
}
}

效果展示

Webflux

Server

定义时间服务

@Service
public class TimeService {
private static final Logger logger = LoggerFactory.getLogger(TimeService.class);
@Tool(description = "Get the time of a specified city.")
public String getCityTimeMethod(@ToolParam(description = "Time zone id, such as Asia/Shanghai") String timeZoneId) {
logger.info("The current time zone is {}", timeZoneId);
return String.format("The current time zone is %s and the current time is " + "%s", timeZoneId,
getTimeByZoneId(timeZoneId));
}
private String getTimeByZoneId(String zoneId) {
// Get the time zone using ZoneId
ZoneId zid = ZoneId.of(zoneId);
// Get the current time in this time zone
ZonedDateTime zonedDateTime = ZonedDateTime.now(zid);
// Defining a formatter
DateTimeFormatter formatter = DateTimeFormatter.ofPattern("yyyy-MM-dd HH:mm:ss z");
// Format ZonedDateTime as a string
String formattedDateTime = zonedDateTime.format(formatter);
return formattedDateTime;
}
}

定义天气服务

import com.fasterxml.jackson.annotation.JsonIgnoreProperties;
import com.fasterxml.jackson.annotation.JsonProperty;
import com.yingzi.mcp.server.webflux.component.time.TimeService;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.ai.tool.annotation.Tool;
import org.springframework.ai.tool.annotation.ToolParam;
import org.springframework.stereotype.Service;
import org.springframework.web.client.RestClient;
import org.springframework.web.client.RestClientException;
import java.time.LocalDate;
import java.time.format.DateTimeFormatter;
import java.util.List;
@Service
public class OpenMeteoService {
private static final Logger logger = LoggerFactory.getLogger(OpenMeteoService.class);
// OpenMeteo免费天气API基础URL
private static final String BASE_URL = "https://api.open-meteo.com/v1";
private final RestClient restClient;
public OpenMeteoService() {
this.restClient = RestClient.builder()
.baseUrl(BASE_URL)
.defaultHeader("Accept", "application/json")
.defaultHeader("User-Agent", "OpenMeteoClient/1.0")
.build();
}
// OpenMeteo天气数据模型
@JsonIgnoreProperties(ignoreUnknown = true)
public record WeatherData(
@JsonProperty("latitude") Double latitude,
@JsonProperty("longitude") Double longitude,
@JsonProperty("timezone") String timezone,
@JsonProperty("current") CurrentWeather current,
@JsonProperty("daily") DailyForecast daily,
@JsonProperty("current_units") CurrentUnits currentUnits) {
@JsonIgnoreProperties(ignoreUnknown = true)
public record CurrentWeather(
@JsonProperty("time") String time,
@JsonProperty("temperature_2m") Double temperature,
@JsonProperty("apparent_temperature") Double feelsLike,
@JsonProperty("relative_humidity_2m") Integer humidity,
@JsonProperty("precipitation") Double precipitation,
@JsonProperty("weather_code") Integer weatherCode,
@JsonProperty("wind_speed_10m") Double windSpeed,
@JsonProperty("wind_direction_10m") Integer windDirection) {
}
@JsonIgnoreProperties(ignoreUnknown = true)
public record CurrentUnits(
@JsonProperty("time") String timeUnit,
@JsonProperty("temperature_2m") String temperatureUnit,
@JsonProperty("relative_humidity_2m") String humidityUnit,
@JsonProperty("wind_speed_10m") String windSpeedUnit) {
}
@JsonIgnoreProperties(ignoreUnknown = true)
public record DailyForecast(
@JsonProperty("time") List<String> time,
@JsonProperty("temperature_2m_max") List<Double> tempMax,
@JsonProperty("temperature_2m_min") List<Double> tempMin,
@JsonProperty("precipitation_sum") List<Double> precipitationSum,
@JsonProperty("weather_code") List<Integer> weatherCode,
@JsonProperty("wind_speed_10m_max") List<Double> windSpeedMax,
@JsonProperty("wind_direction_10m_dominant") List<Integer> windDirection) {
}
}
private String getWeatherDescription(int code) {
return switch (code) {
case 0 -> "晴朗";
case 1, 2, 3 -> "多云";
case 45, 48 -> "雾";
case 51, 53, 55 -> "毛毛雨";
case 56, 57 -> "冻雨";
case 61, 63, 65 -> "雨";
case 66, 67 -> "冻雨";
case 71, 73, 75 -> "雪";
case 77 -> "雪粒";
case 80, 81, 82 -> "阵雨";
case 85, 86 -> "阵雪";
case 95 -> "雷暴";
case 96, 99 -> "雷暴伴有冰雹";
default -> "未知天气";
};
}
private String getWindDirection(int degrees) {
if (degrees >= 337.5 || degrees < 22.5)
return "北风";
if (degrees >= 22.5 && degrees < 67.5)
return "东北风";
if (degrees >= 67.5 && degrees < 112.5)
return "东风";
if (degrees >= 112.5 && degrees < 157.5)
return "东南风";
if (degrees >= 157.5 && degrees < 202.5)
return "南风";
if (degrees >= 202.5 && degrees < 247.5)
return "西南风";
if (degrees >= 247.5 && degrees < 292.5)
return "西风";
return "西北风";
}
@Tool(description = "获取指定经纬度的天气预报")
public String getWeatherForecastByLocation(double latitude, double longitude) {
logger.info("天气预报,当前地区的纬度: {}, 经度: {}", latitude, longitude);
// 获取天气数据(当前和未来7天)
var weatherData = restClient.get()
.uri("/forecast?latitude={latitude}&longitude={longitude}&current=temperature_2m,apparent_temperature,relative_humidity_2m,precipitation,weather_code,wind_speed_10m,wind_direction_10m&daily=temperature_2m_max,temperature_2m_min,precipitation_sum,weather_code,wind_speed_10m_max,wind_direction_10m_dominant&timezone=auto&forecast_days=7",
latitude, longitude)
.retrieve()
.body(WeatherData.class);
// 拼接天气信息
StringBuilder weatherInfo = new StringBuilder();
// 添加当前天气信息
WeatherData.CurrentWeather current = weatherData.current();
String temperatureUnit = weatherData.currentUnits() != null ? weatherData.currentUnits().temperatureUnit()
: "°C";
String windSpeedUnit = weatherData.currentUnits() != null ? weatherData.currentUnits().windSpeedUnit() : "km/h";
String humidityUnit = weatherData.currentUnits() != null ? weatherData.currentUnits().humidityUnit() : "%";
weatherInfo.append(String.format("""
当前天气:
温度: %.1f%s (体感温度: %.1f%s)
天气: %s
风向: %s (%.1f %s)
湿度: %d%s
降水量: %.1f 毫米
""",
current.temperature(),
temperatureUnit,
current.feelsLike(),
temperatureUnit,
getWeatherDescription(current.weatherCode()),
getWindDirection(current.windDirection()),
current.windSpeed(),
windSpeedUnit,
current.humidity(),
humidityUnit,
current.precipitation()));
// 添加未来天气预报
weatherInfo.append("未来天气预报:\n");
WeatherData.DailyForecast daily = weatherData.daily();
for (int i = 0; i < daily.time().size(); i++) {
String date = daily.time().get(i);
double tempMin = daily.tempMin().get(i);
double tempMax = daily.tempMax().get(i);
int weatherCode = daily.weatherCode().get(i);
double windSpeed = daily.windSpeedMax().get(i);
int windDir = daily.windDirection().get(i);
double precip = daily.precipitationSum().get(i);
// 格式化日期
LocalDate localDate = LocalDate.parse(date);
String formattedDate = localDate.format(DateTimeFormatter.ofPattern("yyyy-MM-dd (EEE)"));
weatherInfo.append(String.format("""
%s:
温度: %.1f%s ~ %.1f%s
天气: %s
风向: %s (%.1f %s)
降水量: %.1f 毫米
""",
formattedDate,
tempMin, temperatureUnit,
tempMax, temperatureUnit,
getWeatherDescription(weatherCode),
getWindDirection(windDir),
windSpeed, windSpeedUnit,
precip));
}
return weatherInfo.toString();
}
@Tool(description = "获取指定位置的空气质量信息(模拟数据)")
public String getAirQuality(@ToolParam(description = "纬度") double latitude,
@ToolParam(description = "经度") double longitude) {
logger.info("空气质量信息,当前地区的纬度: {}, 经度: {}", latitude, longitude);
try {
// 从天气数据中获取基本信息
var weatherData = restClient.get()
.uri("/forecast?latitude={latitude}&longitude={longitude}&current=temperature_2m&timezone=auto",
latitude, longitude)
.retrieve()
.body(WeatherData.class);
// 模拟空气质量数据 - 实际情况下应该从真实API获取
// 根据经纬度生成一些随机但相对合理的数据
int europeanAqi = (int) (Math.random() * 100) + 1;
int usAqi = (int) (europeanAqi * 1.5);
double pm10 = Math.random() * 50 + 5;
double pm25 = Math.random() * 25 + 2;
double co = Math.random() * 500 + 100;
double no2 = Math.random() * 40 + 5;
double so2 = Math.random() * 20 + 1;
double o3 = Math.random() * 80 + 20;
// 根据AQI评估空气质量等级
String europeanAqiLevel = getAqiLevel(europeanAqi);
String usAqiLevel = getUsAqiLevel(usAqi);
return String.format("""
空气质量信息(模拟数据):
位置: 纬度 %.4f, 经度 %.4f
欧洲空气质量指数: %d (%s)
美国空气质量指数: %d (%s)
PM10: %.1f μg/m³
PM2.5: %.1f μg/m³
一氧化碳(CO): %.1f μg/m³
二氧化氮(NO2): %.1f μg/m³
二氧化硫(SO2): %.1f μg/m³
臭氧(O3): %.1f μg/m³
数据更新时间: %s
注意: 由于OpenMeteo空气质量API限制,此处显示模拟数据,仅供参考。
""",
latitude, longitude,
europeanAqi, europeanAqiLevel,
usAqi, usAqiLevel,
pm10,
pm25,
co,
no2,
so2,
o3,
weatherData.current().time());
} catch (Exception e) {
// 如果获取基本天气数据失败,返回完全模拟的数据
return String.format("""
空气质量信息(完全模拟数据):
位置: 纬度 %.4f, 经度 %.4f
欧洲空气质量指数: %d (%s)
美国空气质量指数: %d (%s)
PM10: %.1f μg/m³
PM2.5: %.1f μg/m³
一氧化碳(CO): %.1f μg/m³
二氧化氮(NO2): %.1f μg/m³
二氧化硫(SO2): %.1f μg/m³
臭氧(O3): %.1f μg/m³
注意: 由于API限制,此处显示完全模拟数据,仅供参考。
""",
latitude, longitude,
50, getAqiLevel(50),
75, getUsAqiLevel(75),
25.0,
15.0,
300.0,
20.0,
5.0,
40.0);
}
}
private String getAqiLevel(Integer aqi) {
if (aqi == null)
return "未知";
if (aqi <= 20)
return "优";
else if (aqi <= 40)
return "良";
else if (aqi <= 60)
return "中等";
else if (aqi <= 80)
return "较差";
else if (aqi <= 100)
return "差";
else
return "极差";
}
private String getUsAqiLevel(Integer aqi) {
if (aqi == null)
return "未知";
if (aqi <= 50)
return "优";
else if (aqi <= 100)
return "中等";
else if (aqi <= 150)
return "对敏感人群不健康";
else if (aqi <= 200)
return "不健康";
else if (aqi <= 300)
return "非常不健康";
else
return "危险";
}
public static void main(String[] args) {
OpenMeteoService client = new OpenMeteoService();
// 北京坐标
System.out.println(client.getWeatherForecastByLocation(39.9042, 116.4074));
// 北京空气质量(模拟数据)
System.out.println(client.getAirQuality(39.9042, 116.4074));
}
}

工具服务统一放在一个配置类中

@Configuration
public class ToolConfiguration {
@Bean
public ToolCallbackProvider weatherTools(OpenMeteoService openMeteoService, TimeService timeService) {
return MethodToolCallbackProvider.builder().toolObjects(openMeteoService, timeService).build();
}
}

启动server端

@SpringBootApplication
@Import(ToolConfiguration.class)
public class ServerWebfluxApplication {
public static void main(String[] args) {
SpringApplication.run(ServerWebfluxApplication.class, args);
}
}

Client

import org.springframework.ai.chat.client.ChatClient;
import org.springframework.ai.tool.ToolCallbackProvider;
import org.springframework.boot.CommandLineRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.ConfigurableApplicationContext;
import org.springframework.context.annotation.Bean;
import java.util.Scanner;
@SpringBootApplication(exclude = {
org.springframework.ai.autoconfigure.mcp.client.SseHttpClientTransportAutoConfiguration.class
})
public class ClientWebfluxApplication {
public static void main(String[] args) {
SpringApplication.run(ClientWebfluxApplication.class, args);
}
@Bean
public CommandLineRunner predefinedQuestions(ChatClient.Builder chatClientBuilder, ToolCallbackProvider tools,
ConfigurableApplicationContext context) {
return args -> {
var chatClient = chatClientBuilder
.defaultTools(tools)
.build();
Scanner scanner = new Scanner(System.in);
while (true) {
System.out.print("\n>>> QUESTION: ");
String userInput = scanner.nextLine();
if (userInput.equalsIgnoreCase("exit")) {
break;
}
System.out.println("\n>>> ASSISTANT: " + chatClient.prompt(userInput).call().content());
}
scanner.close();
context.close();
};
}
}

效果展示

先启动server端,再启动client端,在client端端命令行中可进行多轮问答,触发在server配置过的MCP服务

参考资料

https://docs.spring.io/spring-ai/reference/api/mcp/mcp-overview.html

Spring AI 1.0.0 M6新特性MCP

deepseek-v3
