子图作为节点操作

在 Spring AI Alibaba Graph 中，可以将一个完整的 Graph 作为另一个 Graph 的节点，实现工作流的模块化设计。

概念

将子图作为 NodeAction 使用，可以：

• 模块化: 将复杂工作流拆分为可重用的子模块
• 封装: 隐藏子图的内部实现细节
• 组合: 构建层次化的工作流结构

基本示例

定义子图

import com.alibaba.cloud.ai.graph.StateGraph;
import com.alibaba.cloud.ai.graph.CompiledGraph;
import com.alibaba.cloud.ai.graph.action.NodeAction;
import java.util.Map;
import static com.alibaba.cloud.ai.graph.action.AsyncNodeAction.nodeasync;

// 创建子图 - 简单的两步处理
public CompiledGraph createSubGraph(KeyStrategyFactory keyStrategyFactory) {
    StateGraph subGraph = new StateGraph(keyStrategyFactory)
        .addNode("substep1", nodeasync(state -> {
            String input = (String) state.value("input").orElse("");
            return Map.of("result", "SubStep1:" + input);
        }))
        .addNode("substep2", nodeasync(state -> {
            String prev = (String) state.value("result").orElse("");
            return Map.of("result", prev + "->SubStep2");
        }))
        .addEdge(StateGraph.START, "substep1")
        .addEdge("substep1", "substep2")
        .addEdge("substep2", StateGraph.END);

    return subGraph.compile();
}

将子图包装为 NodeAction

// 将 CompiledGraph 包装为 NodeAction
public class SubGraphNode implements NodeAction {

    private final CompiledGraph subGraph;

    public SubGraphNode(CompiledGraph subGraph) {
        this.subGraph = subGraph;
    }

    @Override
    public Map<String, Object> apply(OverAllState state) {
        // 从父状态提取子图需要的数据
        String input = (String) state.value("data").orElse("");

        // 执行子图
        Map<String, Object> subInput = Map.of("input", input);
        OverAllState subResult = subGraph.invoke(subInput);

        // 返回结果给父图
        String result = (String) subResult.value("result").orElse("");
        return Map.of("processed", result);
    }
}

在父图中使用

// 创建父图
CompiledGraph subGraph = createSubGraph(keyStrategyFactory);
SubGraphNode subGraphNode = new SubGraphNode(subGraph);

StateGraph parentGraph = new StateGraph(keyStrategyFactory)
    .addNode("prepare", nodeasync(state -> {
        return Map.of("data", "Input Data");
    }))
    .addNode("process", nodeasync(subGraphNode))  // 使用子图作为节点
    .addNode("finalize", nodeasync(state -> {
        String processed = (String) state.value("processed").orElse("");
        return Map.of("final", "Final:" + processed);
    }))
    .addEdge(StateGraph.START, "prepare")
    .addEdge("prepare", "process")
    .addEdge("process", "finalize")
    .addEdge("finalize", StateGraph.END);

CompiledGraph compiledParent = parentGraph.compile();

执行父图

// 执行
OverAllState result = compiledParent.invoke(Map.of());
System.out.println("Final result: " + result.value("final").orElse(""));

// 输出: Final result: Final:SubStep1:Input Data->SubStep2

高级示例 - 带参数的子图

// 可配置的子图节点
public class ConfigurableSubGraphNode implements NodeAction {

    private final CompiledGraph subGraph;
    private final String inputKey;
    private final String outputKey;

    public ConfigurableSubGraphNode(
        CompiledGraph subGraph,
        String inputKey,
        String outputKey
    ) {
        this.subGraph = subGraph;
        this.inputKey = inputKey;
        this.outputKey = outputKey;
    }

    @Override
    public Map<String, Object> apply(OverAllState state) {
        // 从父状态读取指定键的数据
        Object input = state.value(inputKey).orElse(null);

        // 执行子图
        OverAllState subResult = subGraph.invoke(Map.of("input", input));

        // 将结果写入指定键
        Object output = subResult.value("result").orElse(null);
        return Map.of(outputKey, output);
    }
}

// 使用
CompiledGraph subGraph = createSubGraph(keyStrategyFactory);
NodeAction configurableNode = new ConfigurableSubGraphNode(
    subGraph,
    "userInput",    // 从父状态读取 userInput
    "processedOutput"  // 写入 processedOutput
);

状态映射

处理父子图之间的状态映射：

public class SubGraphNodeWithMapping implements NodeAction {

    private final CompiledGraph subGraph;
    private final Function<OverAllState, Map<String, Object>> inputMapper;
    private final BiFunction<OverAllState, OverAllState, Map<String, Object>> outputMapper;

    public SubGraphNodeWithMapping(
        CompiledGraph subGraph,
        Function<OverAllState, Map<String, Object>> inputMapper,
        BiFunction<OverAllState, OverAllState, Map<String, Object>> outputMapper
    ) {
        this.subGraph = subGraph;
        this.inputMapper = inputMapper;
        this.outputMapper = outputMapper;
    }

    @Override
    public Map<String, Object> apply(OverAllState parentState) {
        // 使用 mapper 转换父状态到子状态
        Map<String, Object> subInput = inputMapper.apply(parentState);

        // 执行子图
        OverAllState subResult = subGraph.invoke(subInput);

        // 使用 mapper 转换子状态到父状态
        return outputMapper.apply(parentState, subResult);
    }
}

应用场景

1. 数据处理管道: 将数据清洗、转换、验证等步骤封装为独立子图
2. 微服务编排: 每个微服务调用封装为子图
3. 条件处理: 根据不同条件选择不同的子图执行
4. 并行处理: 多个子图并行执行不同任务
5. 版本控制: 不同版本的处理逻辑封装为不同子图

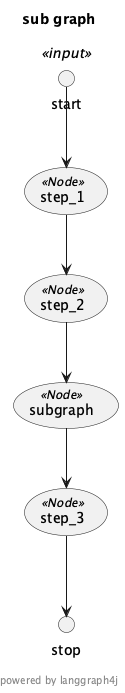

附图
