子图作为 CompiledGraph

在 Spring AI Alibaba 中，可以先编译 StateGraph 得到 CompiledGraph，然后在其他 Graph 中复用，这种方式性能更好且更灵活。

CompiledGraph vs StateGraph​

特性StateGraphCompiledGraph
定义时机构建时编译后
性能需要每次编译预编译，性能更好
灵活性可修改不可修改
复用可以但需重新编译直接复用

基本用法​

创建并编译子图​

创建并编译子图查看完整代码
import com.alibaba.cloud.ai.graph.CompiledGraph;
import com.alibaba.cloud.ai.graph.KeyStrategy;
import com.alibaba.cloud.ai.graph.KeyStrategyFactory;
import com.alibaba.cloud.ai.graph.StateGraph;
import com.alibaba.cloud.ai.graph.exception.GraphStateException;
import com.alibaba.cloud.ai.graph.state.strategy.ReplaceStrategy;

import java.util.HashMap;
import java.util.Map;

import static com.alibaba.cloud.ai.graph.StateGraph.END;
import static com.alibaba.cloud.ai.graph.StateGraph.START;
import static com.alibaba.cloud.ai.graph.action.AsyncNodeAction.node_async;

/**
* 创建并编译子图
*/
public static CompiledGraph createAndCompileSubGraph() throws GraphStateException {
KeyStrategyFactory subKeyFactory = () -> {
  HashMap<String, KeyStrategy> strategies = new HashMap<>();
  strategies.put("input", new ReplaceStrategy());
  strategies.put("output", new ReplaceStrategy());
  return strategies;
};

// 定义并编译子图
StateGraph subGraphDef = new StateGraph(subKeyFactory)
          .addNode("process", node_async(state -> {
      String input = (String) state.value("input").orElse("");
      String output = "Processed: " + input.toUpperCase();
      return Map.of("output", output);
  }))
          .addEdge(START, "process")
          .addEdge("process", END);

// 编译子图
  return subGraphDef.compile();
}

在节点中使用 CompiledGraph​

在节点中使用 CompiledGraph查看完整代码
import com.alibaba.cloud.ai.graph.CompiledGraph;
import com.alibaba.cloud.ai.graph.OverAllState;
import com.alibaba.cloud.ai.graph.RunnableConfig;
import com.alibaba.cloud.ai.graph.action.NodeAction;

import java.util.Map;

/**
* 在节点中使用 CompiledGraph
*/
public static class CompiledSubGraphNode implements NodeAction {

  private final CompiledGraph compiledGraph;

  public CompiledSubGraphNode(CompiledGraph compiledGraph) {
      this.compiledGraph = compiledGraph;
  }

  @Override
  public Map<String, Object> apply(OverAllState state) {
      // 从父状态提取输入
      String input = (String) state.value("data").orElse("");

      // 执行编译好的子图
      Map<String, Object> subInput = Map.of("input", input);
      OverAllState subResult = compiledGraph.invoke(subInput, RunnableConfig.builder().build()).orElseThrow();

      // 提取子图输出
      String output = (String) subResult.value("output").orElse("");
      return Map.of("result", output);
  }
}

在父图中使用​

在父图中使用查看完整代码
import com.alibaba.cloud.ai.graph.CompiledGraph;
import com.alibaba.cloud.ai.graph.StateGraph;

import static com.alibaba.cloud.ai.graph.StateGraph.END;
import static com.alibaba.cloud.ai.graph.StateGraph.START;
import static com.alibaba.cloud.ai.graph.action.AsyncNodeAction.node_async;

/**
* 在父图中使用
*/
public static CompiledGraph useInParentGraph(CompiledGraph compiledSubGraph) throws GraphStateException {
KeyStrategyFactory parentKeyFactory = () -> {
  HashMap<String, KeyStrategy> strategies = new HashMap<>();
  strategies.put("data", new ReplaceStrategy());
  strategies.put("result", new ReplaceStrategy());
  return strategies;
};

StateGraph parentGraph = new StateGraph(parentKeyFactory)
          .addNode("prepare", node_async(state ->
      Map.of("data", "hello world")))
          .addNode("subgraph", compiledSubGraph)
          .addNode("finalize", node_async(state -> {
      String result = (String) state.value("result").orElse("");
      return Map.of("final", "Done: " + result);
  }))
          .addEdge(START, "prepare")
  .addEdge("prepare", "subgraph")
  .addEdge("subgraph", "finalize")
          .addEdge("finalize", END);

  return parentGraph.compile();
}

多个子图复用​

同一个 CompiledGraph 可以在多个地方复用：

多个子图复用查看完整代码
/**
* 多个子图复用
*/
public static CompiledGraph reuseMultipleSubGraphs(CompiledGraph dataProcessor) throws GraphStateException {
  KeyStrategyFactory keyFactory = () -> {
      HashMap<String, KeyStrategy> strategies = new HashMap<>();
      strategies.put("data", new ReplaceStrategy());
      strategies.put("result", new ReplaceStrategy());
      return strategies;
  };

  // 在多个节点中复用
  StateGraph mainGraph = new StateGraph(keyFactory)
          .addNode("process1", dataProcessor)
          .addNode("process2", dataProcessor)
          .addNode("process3", dataProcessor)
          .addEdge(START, "process1")
          .addEdge("process1", "process2")
          .addEdge("process2", "process3")
          .addEdge("process3", END);

  return mainGraph.compile();
}

// 在多个节点中复用
StateGraph mainGraph = new StateGraph(keyFactory)
  .addNode("process1", nodeasync(new CompiledSubGraphNode(dataProcessor)))
  .addNode("process2", nodeasync(new CompiledSubGraphNode(dataProcessor)))
  .addNode("process3", nodeasync(new CompiledSubGraphNode(dataProcessor)))
  .addEdge(StateGraph.START, "process1")
  .addEdge("process1", "process2")
  .addEdge("process2", "process3")
  .addEdge("process3", StateGraph.END);

带配置的子图​

可配置的 CompiledGraph 包装器​

可配置的 CompiledGraph 包装器查看完整代码
public class ConfigurableCompiledSubGraph implements NodeAction {

  private final CompiledGraph compiledGraph;
  private final Map<String, String> inputMapping;
  private final Map<String, String> outputMapping;

  public ConfigurableCompiledSubGraph(
      CompiledGraph compiledGraph,
      Map<String, String> inputMapping,   // parentKey -> subKey
      Map<String, String> outputMapping   // subKey -> parentKey
  ) {
      this.compiledGraph = compiledGraph;
      this.inputMapping = inputMapping;
      this.outputMapping = outputMapping;
  }

  @Override
  public Map<String, Object> apply(OverAllState parentState) {
      // 映射输入
      Map<String, Object> subInput = new HashMap<>();
      inputMapping.forEach((parentKey, subKey) -> {
          parentState.value(parentKey).ifPresent(value ->
              subInput.put(subKey, value));
      });

      // 执行子图
      OverAllState subResult = compiledGraph.invoke(subInput);

      // 映射输出
      Map<String, Object> parentOutput = new HashMap<>();
      outputMapping.forEach((subKey, parentKey) -> {
          subResult.value(subKey).ifPresent(value ->
              parentOutput.put(parentKey, value));
      });

      return parentOutput;
  }
}

// 使用
CompiledGraph processor = createProcessorGraph().compile();

NodeAction node1 = new ConfigurableCompiledSubGraph(
  processor,
  Map.of("userInput", "input"),      // userInput -> input
  Map.of("output", "processedData")  // output -> processedData
);

NodeAction node2 = new ConfigurableCompiledSubGraph(
  processor,
  Map.of("rawData", "input"),        // rawData -> input
  Map.of("output", "cleanedData")    // output -> cleanedData
);

并行执行多个 CompiledGraph​

并行执行多个 CompiledGraph查看完整代码
import java.util.concurrent.CompletableFuture;
import java.util.List;

public class ParallelCompiledGraphNode implements NodeAction {

  private final List<CompiledGraph> graphs;

  public ParallelCompiledGraphNode(List<CompiledGraph> graphs) {
      this.graphs = graphs;
  }

  @Override
  public Map<String, Object> apply(OverAllState state) {
      String input = (String) state.value("input").orElse("");

      // 并行执行所有子图
      List<CompletableFuture<OverAllState>> futures = graphs.stream()
          .map(graph -> CompletableFuture.supplyAsync(() ->
              graph.invoke(Map.of("input", input))))
          .toList();

      // 等待所有完成
      List<OverAllState> results = futures.stream()
          .map(CompletableFuture::join)
          .toList();

      // 合并结果
      List<String> outputs = results.stream()
          .map(r -> (String) r.value("output").orElse(""))
          .toList();

      return Map.of("results", outputs);
  }
}

// 使用
CompiledGraph graph1 = createGraph1().compile();
CompiledGraph graph2 = createGraph2().compile();
CompiledGraph graph3 = createGraph3().compile();

NodeAction parallelNode = new ParallelCompiledGraphNode(
  List.of(graph1, graph2, graph3)
);

带 Checkpoint 的子图​

CompiledGraph 可以有自己独立的 checkpoint：

带 Checkpoint 的子图查看完整代码
import com.alibaba.cloud.ai.graph.checkpoint.MemorySaver;
import com.alibaba.cloud.ai.graph.CompileConfig;

// 子图使用独立的 checkpoint
var subCheckpointer = new MemorySaver();
var subCompileConfig = CompileConfig.builder()
  .checkpointSaver(subCheckpointer)
  .build();

CompiledGraph compiledSubGraph = subGraphDef.compile(subCompileConfig);

// 执行时指定子图的 threadId
public class CheckpointedSubGraphNode implements NodeAction {

  private final CompiledGraph compiledGraph;
  private final String subThreadIdPrefix;

  public CheckpointedSubGraphNode(
      CompiledGraph compiledGraph,
      String subThreadIdPrefix
  ) {
      this.compiledGraph = compiledGraph;
      this.subThreadIdPrefix = subThreadIdPrefix;
  }

  @Override
  public Map<String, Object> apply(OverAllState state) {
      String input = (String) state.value("input").orElse("");

      // 为子图创建独立的运行配置
      var subConfig = RunnableConfig.builder()
          .threadId(subThreadIdPrefix + "-" + System.currentTimeMillis())
          .build();

      // 执行子图
      OverAllState result = compiledGraph.invoke(
          Map.of("input", input),
          subConfig
      );

      return Map.of("output", result.value("output").orElse(""));
  }
}

性能优化​

预编译策略​

预编译策略查看完整代码
// 服务启动时预编译所有子图
@Configuration
public class GraphConfiguration {

  @Bean
  public CompiledGraph validationGraph() {
      StateGraph def = createValidationGraph();
      return def.compile();  // 启动时编译一次
  }

  @Bean
  public CompiledGraph transformGraph() {
      StateGraph def = createTransformGraph();
      return def.compile();
  }

  @Bean
  public CompiledGraph aggregationGraph() {
      StateGraph def = createAggregationGraph();
      return def.compile();
  }
}

// 在运行时直接使用预编译的图
@Service
public class WorkflowService {

  @Autowired
  private CompiledGraph validationGraph;

  @Autowired
  private CompiledGraph transformGraph;

  @Autowired
  private CompiledGraph aggregationGraph;

  public void processData(String data) {
      // 直接使用，无需重新编译
      var result1 = validationGraph.invoke(Map.of("input", data));
      var result2 = transformGraph.invoke(Map.of("input", data));
      var result3 = aggregationGraph.invoke(Map.of("input", data));
  }
}

完整示例​

完整示例查看完整代码
// 1. 定义数据验证子图
public CompiledGraph createValidationGraph() {
  KeyStrategyFactory keyFactory = () -> {
      HashMap<String, KeyStrategy> strategies = new HashMap<>();
      strategies.put("data", new ReplaceStrategy());
      strategies.put("isValid", new ReplaceStrategy());
      return strategies;
  };

  StateGraph graph = new StateGraph(keyFactory)
      .addNode("validate", nodeasync(state -> {
          String data = (String) state.value("data").orElse("");
          boolean valid = data != null && !data.isEmpty();
          return Map.of("isValid", valid);
      }))
      .addEdge(StateGraph.START, "validate")
      .addEdge("validate", StateGraph.END);

  return graph.compile();
}

// 2. 定义数据转换子图
public CompiledGraph createTransformGraph() {
  KeyStrategyFactory keyFactory = () -> {
      HashMap<String, KeyStrategy> strategies = new HashMap<>();
      strategies.put("data", new ReplaceStrategy());
      strategies.put("transformed", new ReplaceStrategy());
      return strategies;
  };

  StateGraph graph = new StateGraph(keyFactory)
      .addNode("transform", nodeasync(state -> {
          String data = (String) state.value("data").orElse("");
          return Map.of("transformed", data.toUpperCase());
      }))
      .addEdge(StateGraph.START, "transform")
      .addEdge("transform", StateGraph.END);

  return graph.compile();
}

// 3. 组合使用
CompiledGraph validationGraph = createValidationGraph();
CompiledGraph transformGraph = createTransformGraph();

StateGraph mainGraph = new StateGraph(keyFactory)
  .addNode("validate", nodeasync(state -> {
      String data = (String) state.value("input").orElse("");
      OverAllState result = validationGraph.invoke(Map.of("data", data));
      return Map.of("isValid", result.value("isValid").orElse(false));
  }))
  .addNode("transform", nodeasync(state -> {
      String data = (String) state.value("input").orElse("");
      OverAllState result = transformGraph.invoke(Map.of("data", data));
      return Map.of("output", result.value("transformed").orElse(""));
  }))
  .addEdge(StateGraph.START, "validate")
  .addConditionalEdges("validate",
      edgeasync(state -> {
          Boolean valid = (Boolean) state.value("isValid").orElse(false);
          return valid ? "continue" : "error";
      }),
      Map.of("continue", "transform", "error", StateGraph.END))
  .addEdge("transform", StateGraph.END);

CompiledGraph main = mainGraph.compile();

// 执行
OverAllState result = main.invoke(Map.of("input", "test data"));
System.out.println("Output: " + result.value("output").orElse(""));

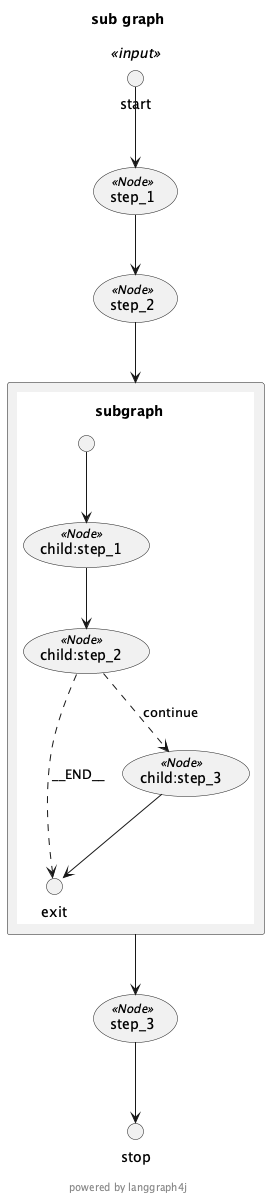

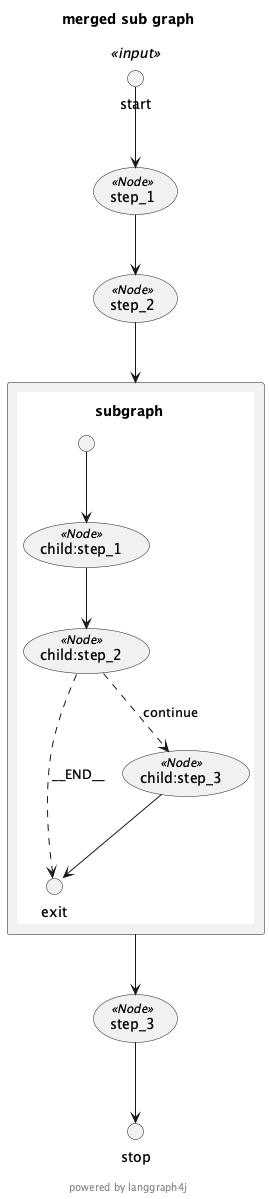

附图​

png

png

相关文档​

Spring AI Alibaba 开源项目基于 Spring AI 构建，是阿里云通义系列模型及服务在 Java AI 应用开发领域的最佳实践，提供高层次的 AI API 抽象与云原生基础设施集成方案，帮助开发者快速构建 AI 应用。

浙ICP备2021005855号-33
