第二章：advisor 增强

  • 作者：影子, Spring AI Alibaba Committer
  • 本文档基于 Spring AI 1.0.0 版本，Spring AI Alibaba 1.0.0.2 版本
  • 本章包含快速上手（基于内存、sqlite、mysql、redis的历史消息存储）+ 源码解读（advisor基础、BaseChatMemoryAdvisor解读、AdvisorChain链）

基于内存的消息存储快速上手

用于在 AI 模型的请求和响应流程中插入自定义逻辑。实战代码可见：https://github.com/GTyingzi/spring-ai-tutorial 下的advisor目录

以下实现了 advisor 中有基于内存的历史消息存储的 chat 交互

pom 文件

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>


    <dependency>
        <groupId>org.springframework.ai</groupId>
        <artifactId>spring-ai-autoconfigure-model-openai</artifactId>
    </dependency>


    <dependency>
        <groupId>org.springframework.ai</groupId>
        <artifactId>spring-ai-autoconfigure-model-chat-client</artifactId>
    </dependency>


</dependencies>

application.yml

server:
  port: 8080


spring:
  application:
    name: advisor-base


  ai:
    openai:
      api-key: ${DASHSCOPEAPIKEY}
      base-url: https://dashscope.aliyuncs.com/compatible-mode
      chat:
        options:
          model: qwen-max

controller

MemoryMessageAdvisorController

package com.spring.ai.tutorial.advisor.controller;


import org.springframework.ai.chat.client.ChatClient;
import org.springframework.ai.chat.client.advisor.MessageChatMemoryAdvisor;
import org.springframework.ai.chat.memory.InMemoryChatMemoryRepository;
import org.springframework.ai.chat.memory.MessageWindowChatMemory;
import org.springframework.ai.chat.messages.Message;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;


import java.util.List;


import static org.springframework.ai.chat.memory.ChatMemory.CONVERSATIONID;


@RestController
@RequestMapping("/advisor/memory/message")
public class MemoryMessageAdvisorController {


    private final ChatClient chatClient;
    private final InMemoryChatMemoryRepository chatMemoryRepository = new InMemoryChatMemoryRepository();
    private final int MAXMESSAGES = 100;
    private final MessageWindowChatMemory messageWindowChatMemory = MessageWindowChatMemory.builder()
            .chatMemoryRepository(chatMemoryRepository)
            .maxMessages(MAXMESSAGES)
            .build();


    public MemoryMessageAdvisorController(ChatClient.Builder builder) {
        this.chatClient = builder
                .defaultAdvisors(
                        MessageChatMemoryAdvisor.builder(messageWindowChatMemory)
                                .build()
                )
                .build();
    }


    @GetMapping("/call")
    public String call(@RequestParam(value = "query", defaultValue = "你好，我的外号是影子，请记住呀") String query,
                       @RequestParam(value = "conversationid", defaultValue = "yingzi") String conversationId
                       ) {
        return chatClient.prompt(query)
                .advisors(
                        a -> a.param(CONVERSATIONID, conversationId)
                )
                .call().content();
    }


    @GetMapping("/messages")
    public List<Message> messages(@RequestParam(value = "conversationid", defaultValue = "yingzi") String conversationId) {
        return messageWindowChatMemory.get(conversationId);
    }


}
效果

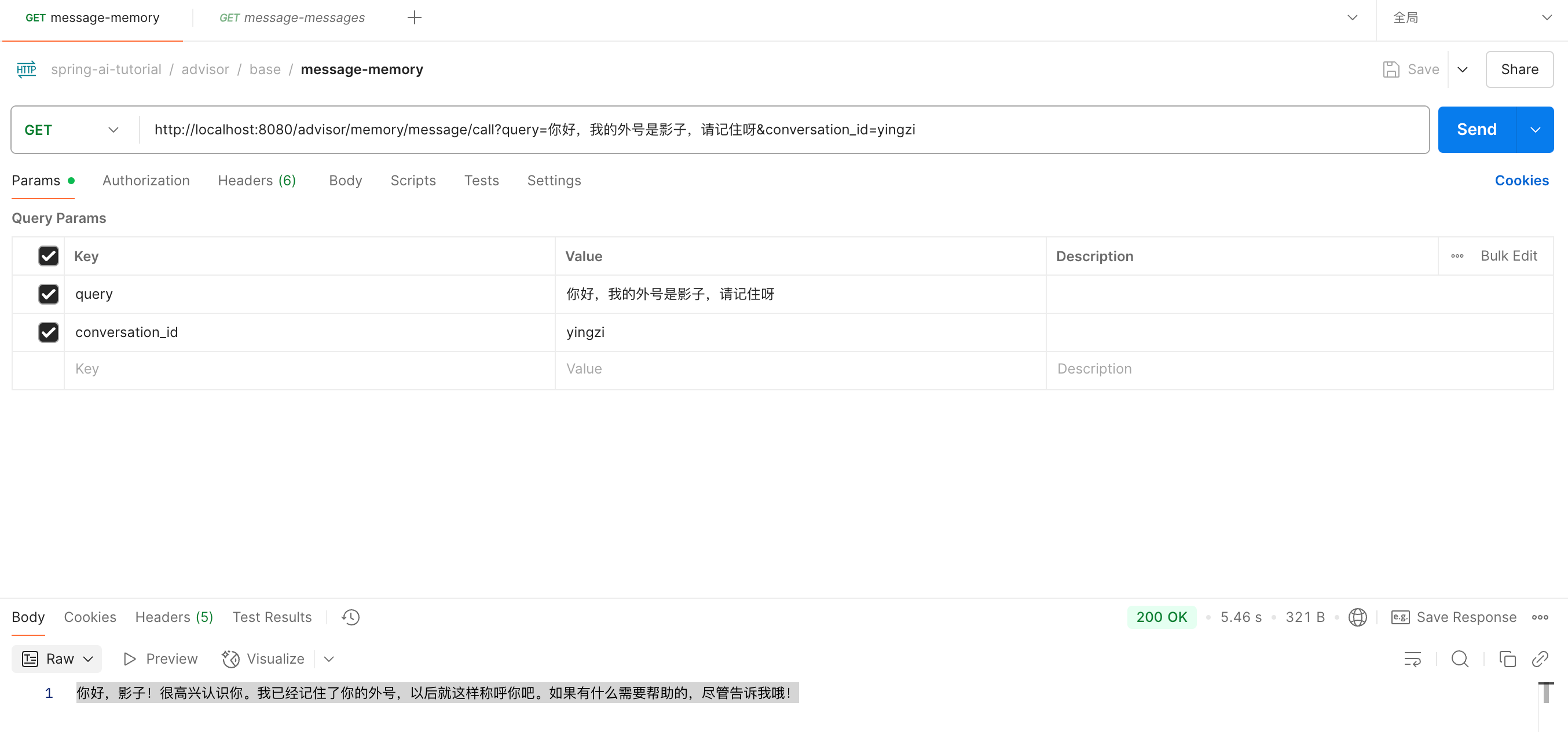

以会话 Id=“yingzi”，先告知模型我的名字

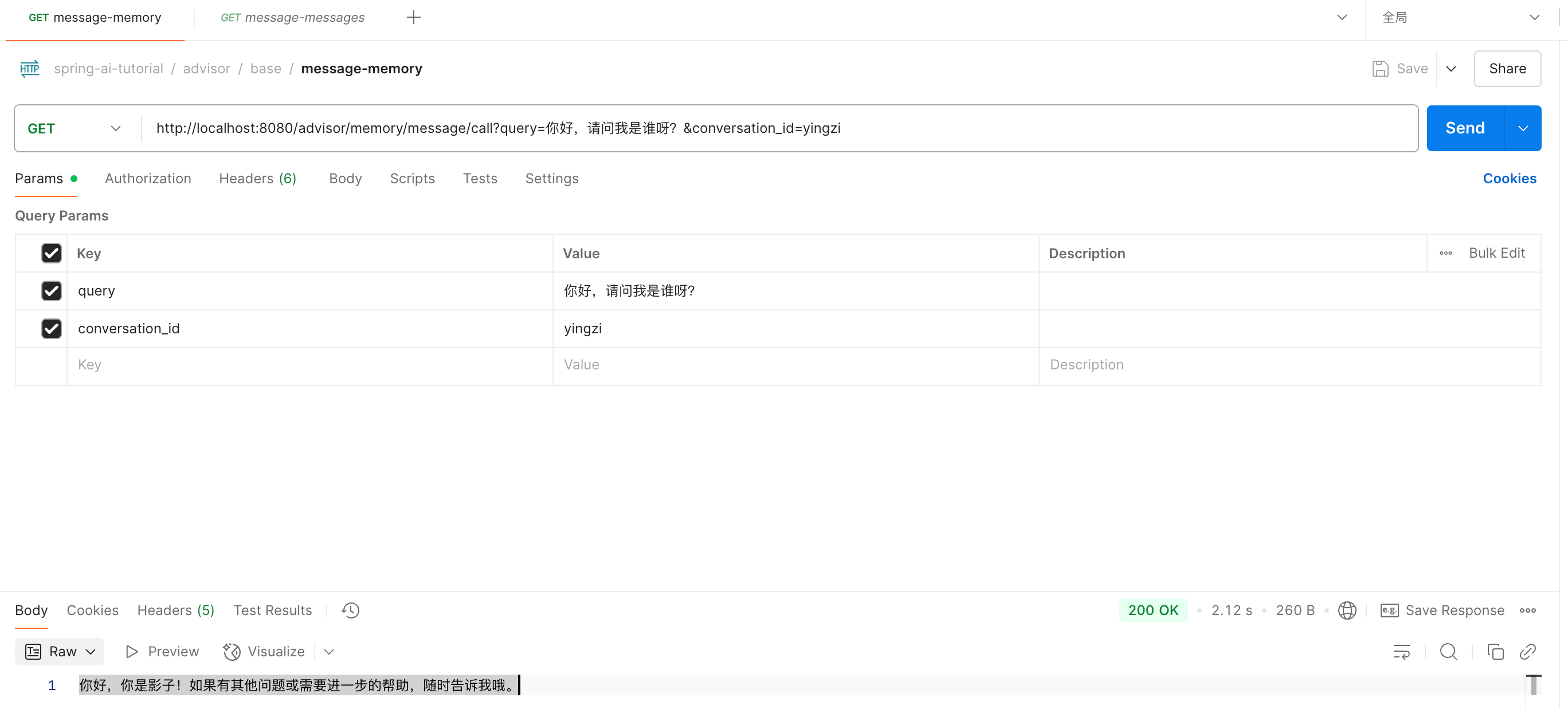

再以同一个会话 Id=“yingzi”，模型能根据以往的消息记住了我的名字

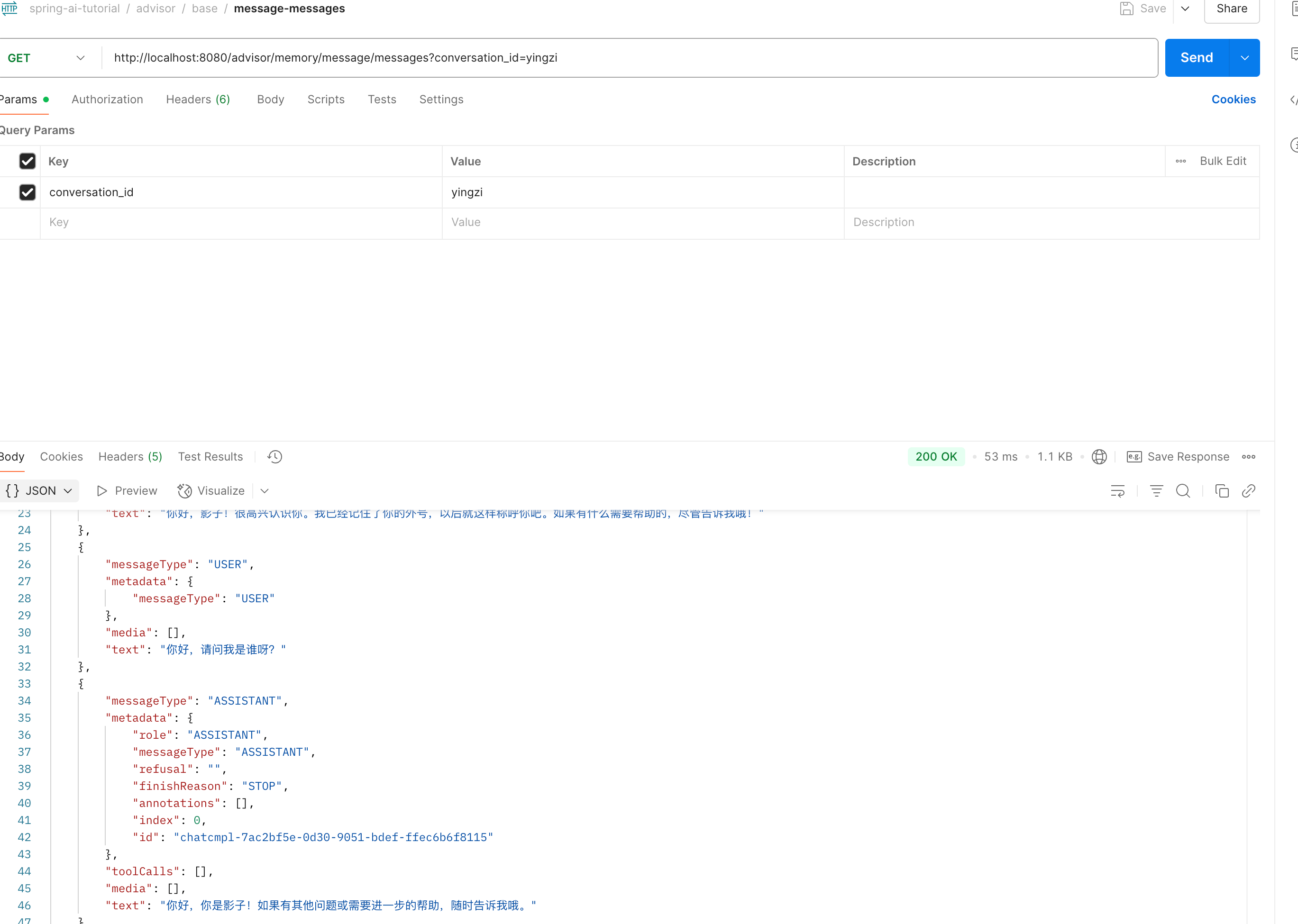

获取历史消息记录，我们能得到历史消息记录

MemoryPromptAdvisorController

package com.spring.ai.tutorial.advisor.controller;


import org.springframework.ai.chat.client.ChatClient;
import org.springframework.ai.chat.client.advisor.PromptChatMemoryAdvisor;
import org.springframework.ai.chat.memory.InMemoryChatMemoryRepository;
import org.springframework.ai.chat.memory.MessageWindowChatMemory;
import org.springframework.ai.chat.messages.Message;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;


import java.util.List;


import static org.springframework.ai.chat.memory.ChatMemory.CONVERSATIONID;


@RestController
@RequestMapping("/advisor/memory/prompt")
public class MemoryPromptAdvisorController {


    private final ChatClient chatClient;
    private final InMemoryChatMemoryRepository chatMemoryRepository = new InMemoryChatMemoryRepository();
    private final int MAXMESSAGES = 100;
    private final MessageWindowChatMemory messageWindowChatMemory = MessageWindowChatMemory.builder()
            .chatMemoryRepository(chatMemoryRepository)
            .maxMessages(MAXMESSAGES)
            .build();


    public MemoryPromptAdvisorController(ChatClient.Builder builder) {
        this.chatClient = builder
                .defaultAdvisors(
                        PromptChatMemoryAdvisor.builder(messageWindowChatMemory)
                                .build()
                )
                .build();
    }


    @GetMapping("/call")
    public String call(@RequestParam(value = "query", defaultValue = "你好，我的外号是影子，请记住呀") String query,
                       @RequestParam(value = "conversationid", defaultValue = "yingzi") String conversationId
    ) {
        return chatClient.prompt(query)
                .advisors(
                        a -> a.param(CONVERSATIONID, conversationId)
                )
                .call().content();
    }


    @GetMapping("/messages")
    public List<Message> messages(@RequestParam(value = "conversationid", defaultValue = "yingzi") String conversationId) {
        return messageWindowChatMemory.get(conversationId);
    }
}
效果

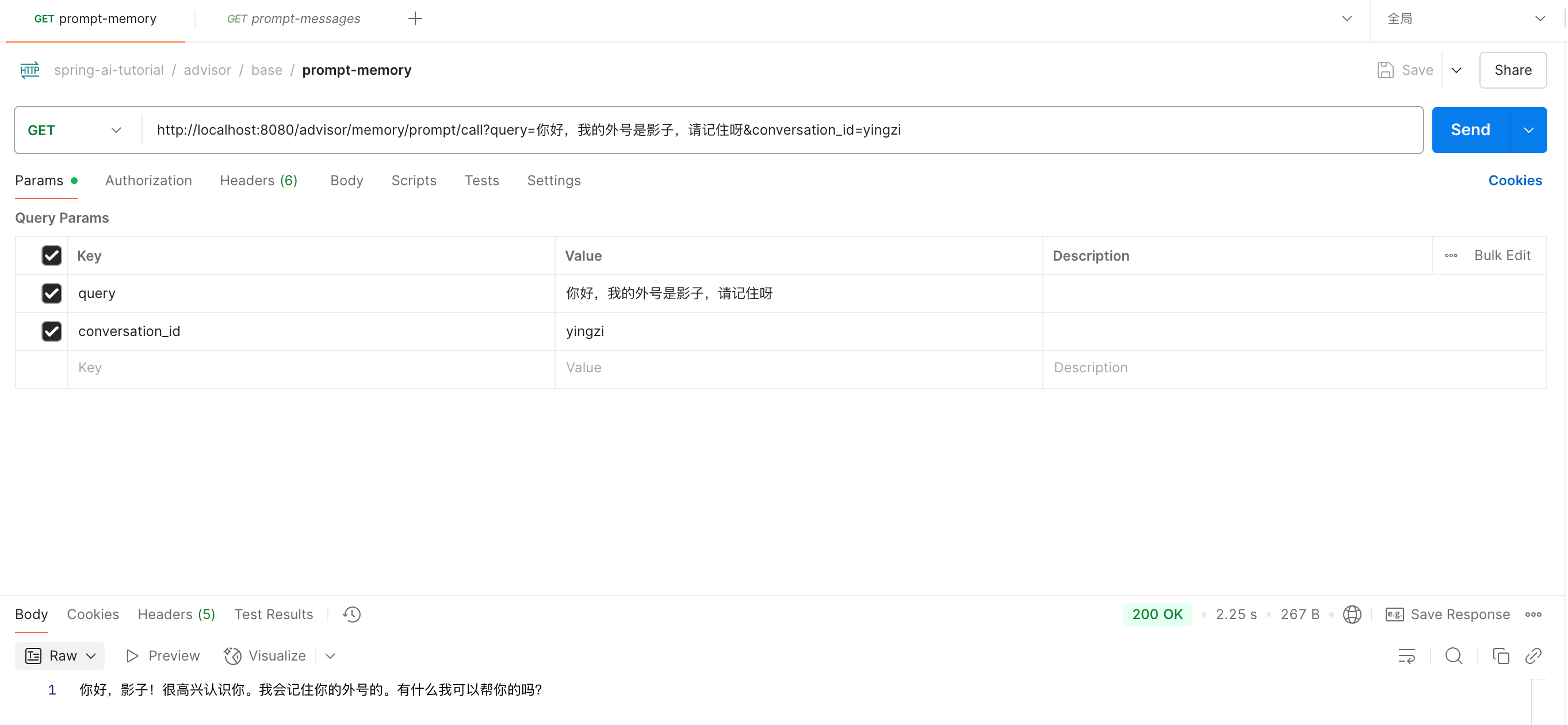

以会话 Id=“yingzi”，先告知模型我的名字

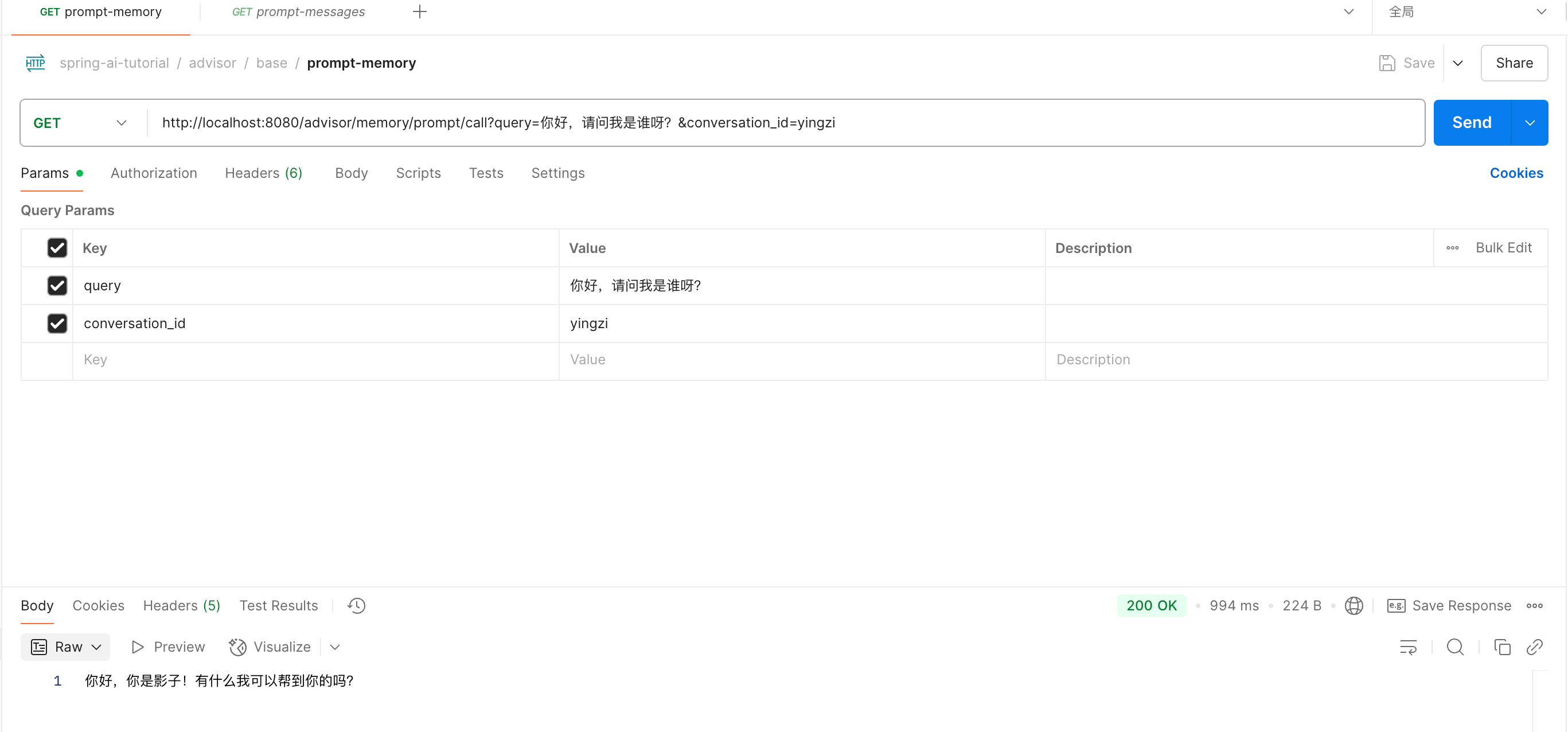

再以同一个会话 Id=“yingzi”，模型能根据以往的消息记住了我的名字

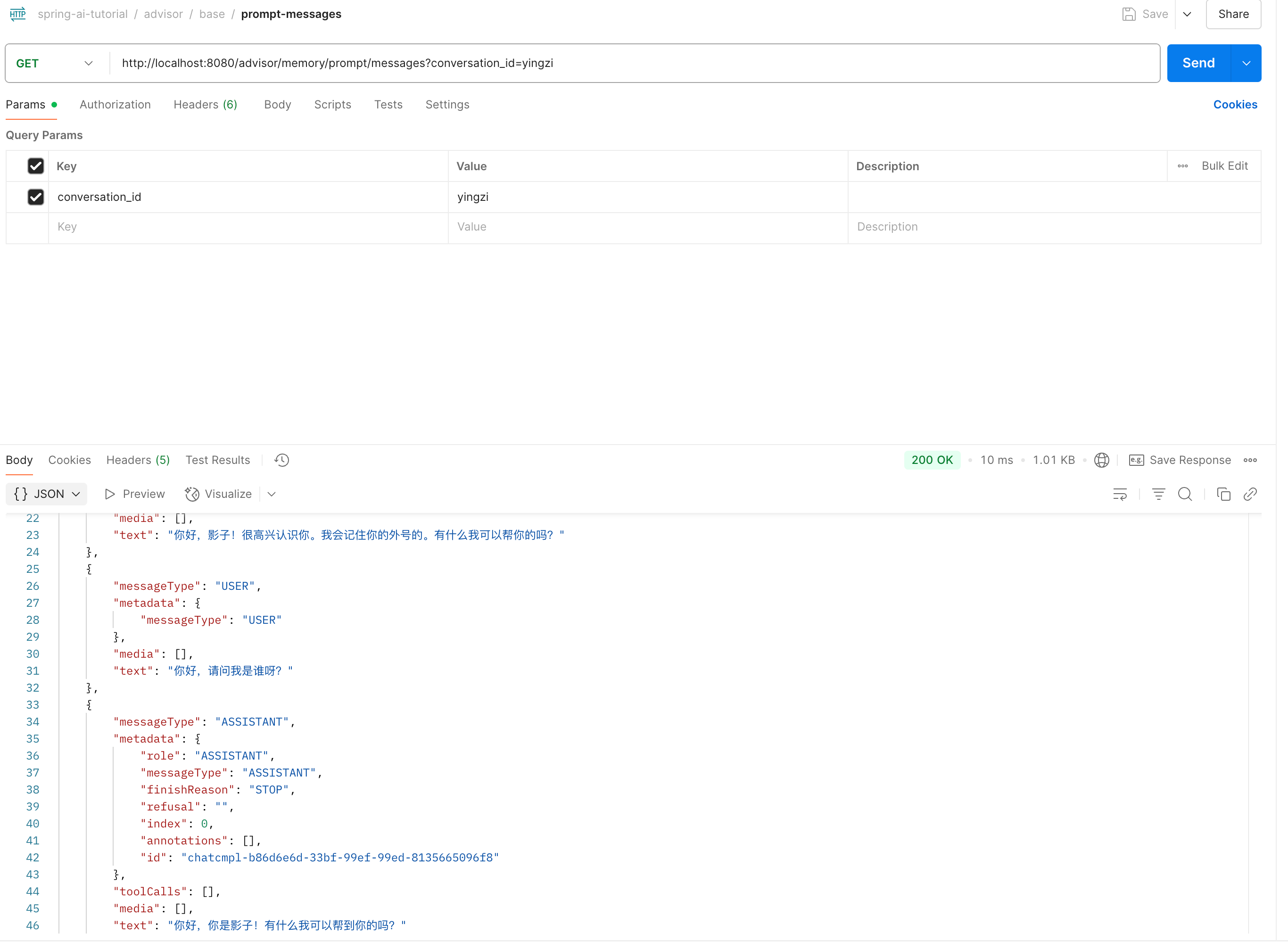

获取历史消息记录，我们能得到历史消息记录

（增强）基于 sqlite、mysql、redis 的消息存储

实现了基于 sqlite、mysql、redis 的消息存储

pom 文件

<properties>
    <sqlite.version>3.49.1.0</sqlite.version>
    <mysql.version>8.0.32</mysql.version>
    <jedis.version>5.2.0</jedis.version>
</properties>




<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>


    <dependency>
        <groupId>org.springframework.ai</groupId>
        <artifactId>spring-ai-autoconfigure-model-openai</artifactId>
    </dependency>


    <dependency>
        <groupId>org.springframework.ai</groupId>
        <artifactId>spring-ai-autoconfigure-model-chat-client</artifactId>
    </dependency>




    <dependency>
        <groupId>com.alibaba.cloud.ai</groupId>
        <artifactId>spring-ai-alibaba-starter-memory</artifactId>
    </dependency>


    <dependency>
        <groupId>com.alibaba.cloud.ai</groupId>
        <artifactId>spring-ai-alibaba-starter-memory-jdbc</artifactId>
    </dependency>


    <dependency>
        <groupId>com.alibaba.cloud.ai</groupId>
        <artifactId>spring-ai-alibaba-starter-memory-redis</artifactId>
    </dependency>


    <dependency>
        <groupId>org.xerial</groupId>
        <artifactId>sqlite-jdbc</artifactId>
        <version>${sqlite.version}</version>
    </dependency>


    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>${mysql.version}</version>
    </dependency>


    <dependency>
        <groupId>redis.clients</groupId>
        <artifactId>jedis</artifactId>
        <version>${jedis.version}</version>
    </dependency>


</dependencies>

application.yml

server:
  port: 8080


spring:
  application:
    name: advisor-memory-mysql


  ai:
    openai:
      api-key: ${DASHSCOPEAPIKEY}
      base-url: https://dashscope.aliyuncs.com/compatible-mode
      chat:
        options:
          model: qwen-max


    chat:
      memory:
        repository:
          jdbc:
            mysql:
              jdbc-url: jdbc:mysql://localhost:3306/spring_ai_alibaba_mysql?useUnicode=true&characterEncoding=utf-8&useSSL=false&allowPublicKeyRetrieval=true&zeroDateTimeBehavior=convertToNull&transformedBitIsBoolean=true&allowMultiQueries=true&tinyInt1isBit=false&allowLoadLocalInfile=true&allowLocalInfile=true&allowUrl
              username: root
              password: root
              driver-class-name: com.mysql.cj.jdbc.Driver
              enabled: true


    memory:
      redis:
        host: localhost
        port: 6379
        timeout:  5000
        password:

Sqlite

SqliteMemoryConfig

package com.spring.ai.tutorial.advisor.memory.config;


import com.alibaba.cloud.ai.memory.jdbc.SQLiteChatMemoryRepository;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.jdbc.datasource.DriverManagerDataSource;


@Configuration
public class SqliteMemoryConfig {


    @Bean
    public SQLiteChatMemoryRepository sqliteChatMemoryRepository() {
        DriverManagerDataSource dataSource = new DriverManagerDataSource();
        dataSource.setDriverClassName("org.sqlite.JDBC");
        dataSource.setUrl("jdbc:sqlite:advisor/advisor-memory-sqlite/src/main/resources/chat-memory.db");
        JdbcTemplate jdbcTemplate = new JdbcTemplate(dataSource);
        return SQLiteChatMemoryRepository.sqliteBuilder()
                .jdbcTemplate(jdbcTemplate)
                .build();
    }
}

SqliteMemoryController

package com.spring.ai.tutorial.advisor.memory.controller;


import com.alibaba.cloud.ai.memory.jdbc.SQLiteChatMemoryRepository;
import org.springframework.ai.chat.client.ChatClient;
import org.springframework.ai.chat.client.advisor.MessageChatMemoryAdvisor;
import org.springframework.ai.chat.memory.MessageWindowChatMemory;
import org.springframework.ai.chat.messages.Message;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;


import java.util.List;


import static org.springframework.ai.chat.memory.ChatMemory.CONVERSATIONID;


@RestController
@RequestMapping("/advisor/memory/sqlite")
public class SqliteMemoryController {


    private final ChatClient chatClient;
    private final int MAXMESSAGES = 100;
    private final MessageWindowChatMemory messageWindowChatMemory;


    public SqliteMemoryController(ChatClient.Builder builder, SQLiteChatMemoryRepository sqliteChatMemoryRepository) {
        this.messageWindowChatMemory = MessageWindowChatMemory.builder()
                .chatMemoryRepository(sqliteChatMemoryRepository)
                .maxMessages(MAXMESSAGES)
                .build();


        this.chatClient = builder
                .defaultAdvisors(
                        MessageChatMemoryAdvisor.builder(messageWindowChatMemory)
                                .build()
                )
                .build();
    }


    @GetMapping("/call")
    public String call(@RequestParam(value = "query", defaultValue = "你好，我的外号是影子，请记住呀") String query,
                       @RequestParam(value = "conversationid", defaultValue = "yingzi") String conversationId
    ) {
        return chatClient.prompt(query)
                .advisors(
                        a -> a.param(CONVERSATIONID, conversationId)
                )
                .call().content();
    }


    @GetMapping("/messages")
    public List<Message> messages(@RequestParam(value = "conversationid", defaultValue = "yingzi") String conversationId) {
        return messageWindowChatMemory.get(conversationId);
    }
}
效果

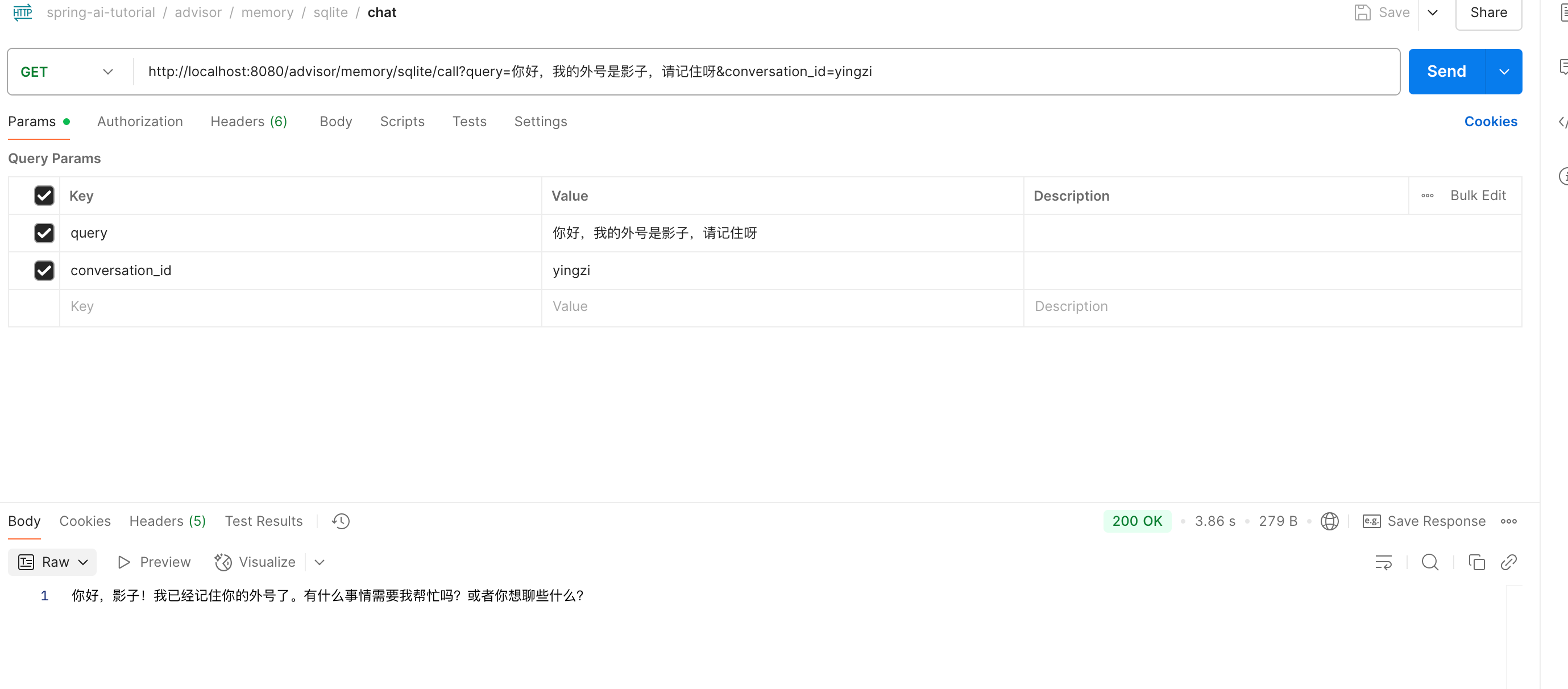

以会话”yingzi”发送消息，此时消息存储至 sqlite

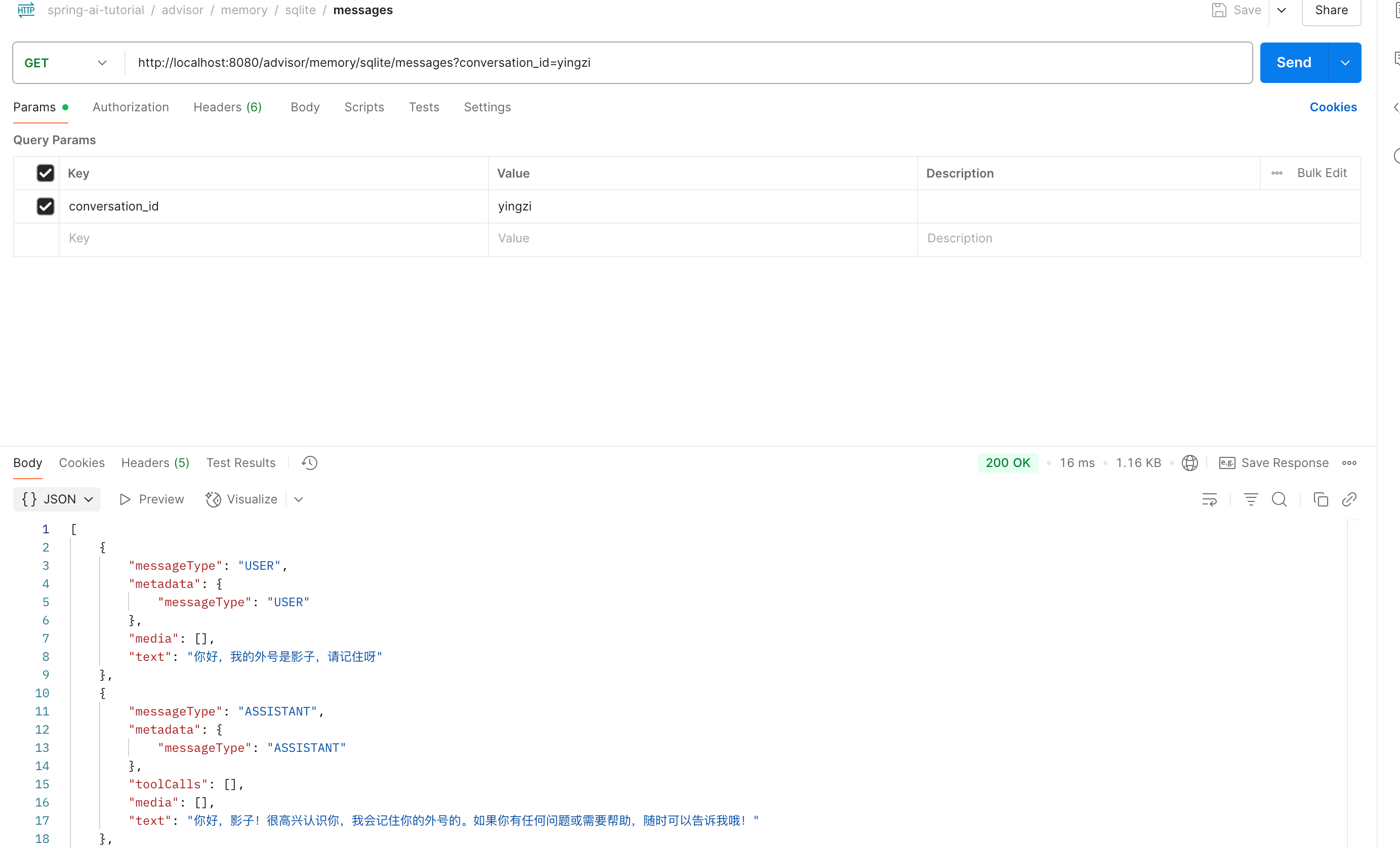

从 sqlite 获取会话”yingzi”对应的消息

Mysql

MysqlMemoryConfig

package com.spring.ai.tutorial.advisor.memory.config;


import com.alibaba.cloud.ai.memory.jdbc.MysqlChatMemoryRepository;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.jdbc.datasource.DriverManagerDataSource;


@Configuration
public class MysqlMemoryConfig {


    @Value("${spring.ai.chat.memory.repository.jdbc.mysql.jdbc-url}")
    private String mysqlJdbcUrl;
    @Value("${spring.ai.chat.memory.repository.jdbc.mysql.username}")
    private String mysqlUsername;
    @Value("${spring.ai.chat.memory.repository.jdbc.mysql.password}")
    private String mysqlPassword;
    @Value("${spring.ai.chat.memory.repository.jdbc.mysql.driver-class-name}")
    private String mysqlDriverClassName;


    @Bean
    public MysqlChatMemoryRepository mysqlChatMemoryRepository() {
        DriverManagerDataSource dataSource = new DriverManagerDataSource();
        dataSource.setDriverClassName(mysqlDriverClassName);
        dataSource.setUrl(mysqlJdbcUrl);
        dataSource.setUsername(mysqlUsername);
        dataSource.setPassword(mysqlPassword);
        JdbcTemplate jdbcTemplate = new JdbcTemplate(dataSource);
        return MysqlChatMemoryRepository.mysqlBuilder()
                .jdbcTemplate(jdbcTemplate)
                .build();
    }
}

MysqlMemoryController

package com.spring.ai.tutorial.advisor.memory.controller;


import com.alibaba.cloud.ai.memory.jdbc.MysqlChatMemoryRepository;
import org.springframework.ai.chat.client.ChatClient;
import org.springframework.ai.chat.client.advisor.MessageChatMemoryAdvisor;
import org.springframework.ai.chat.memory.MessageWindowChatMemory;
import org.springframework.ai.chat.messages.Message;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;


import java.util.List;


import static org.springframework.ai.chat.memory.ChatMemory.CONVERSATIONID;


@RestController
@RequestMapping("/advisor/memory/mysql")
public class MysqlMemoryController {


    private final ChatClient chatClient;
    private final int MAXMESSAGES = 100;
    private final MessageWindowChatMemory messageWindowChatMemory;


    public MysqlMemoryController(ChatClient.Builder builder, MysqlChatMemoryRepository mysqlChatMemoryRepository) {
        this.messageWindowChatMemory = MessageWindowChatMemory.builder()
                .chatMemoryRepository(mysqlChatMemoryRepository)
                .maxMessages(MAXMESSAGES)
                .build();


        this.chatClient = builder
                .defaultAdvisors(
                        MessageChatMemoryAdvisor.builder(messageWindowChatMemory)
                                .build()
                )
                .build();
    }


    @GetMapping("/call")
    public String call(@RequestParam(value = "query", defaultValue = "你好，我的外号是影子，请记住呀") String query,
                       @RequestParam(value = "conversationid", defaultValue = "yingzi") String conversationId
    ) {
        return chatClient.prompt(query)
                .advisors(
                        a -> a.param(CONVERSATIONID, conversationId)
                )
                .call().content();
    }


    @GetMapping("/messages")
    public List<Message> messages(@RequestParam(value = "conversationid", defaultValue = "yingzi") String conversationId) {
        return messageWindowChatMemory.get(conversationId);
    }
}
效果

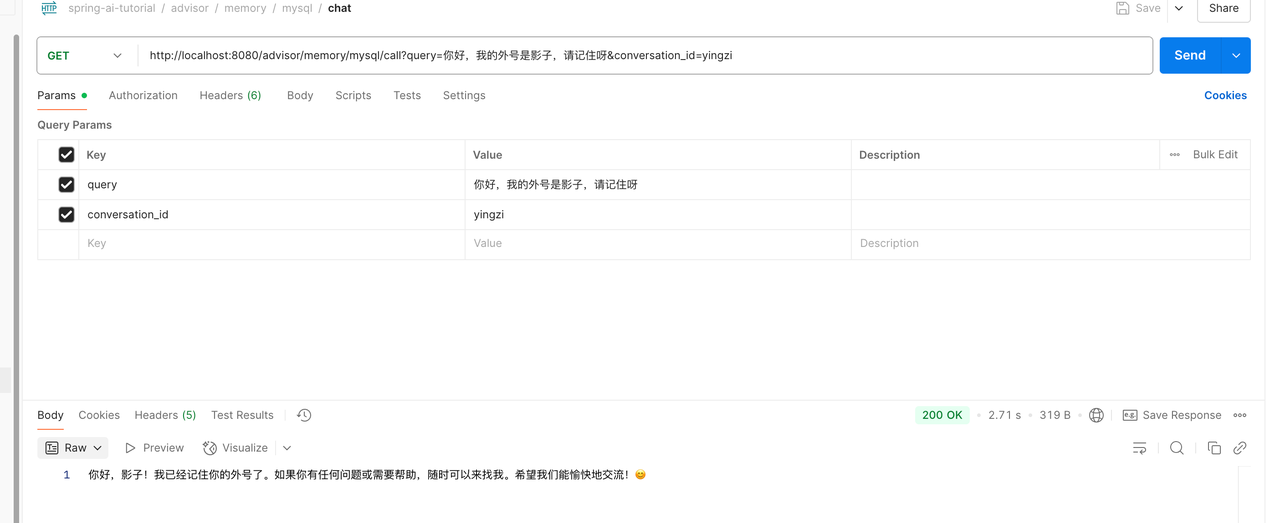

以会话”yingzi”发送消息，此时消息存储至 mysql

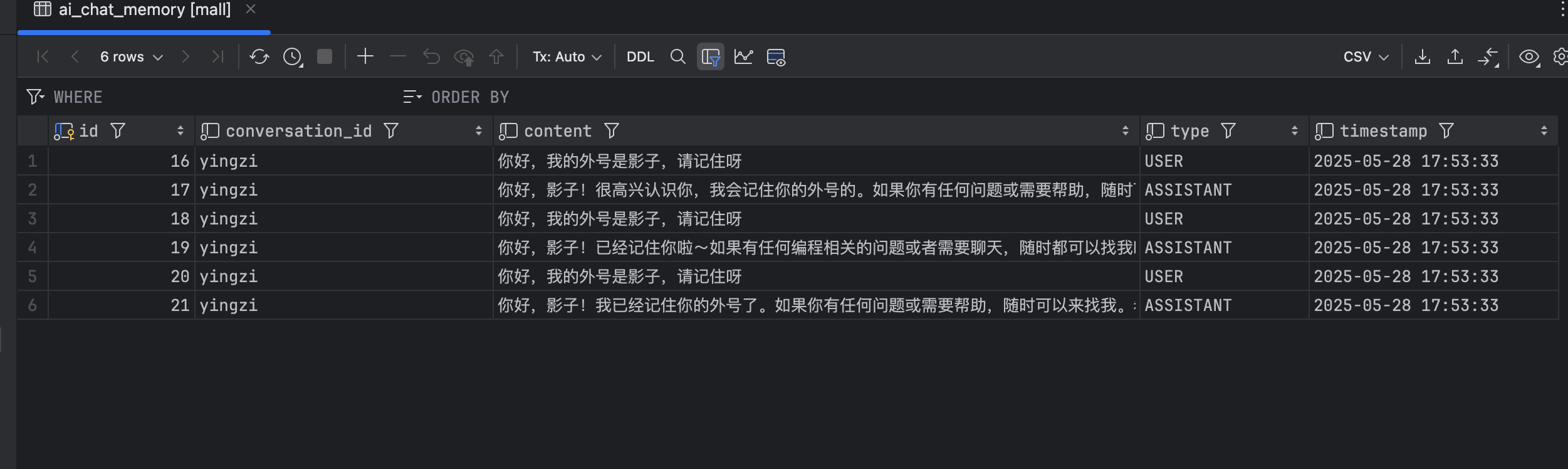

消息被存储至 mysql 中

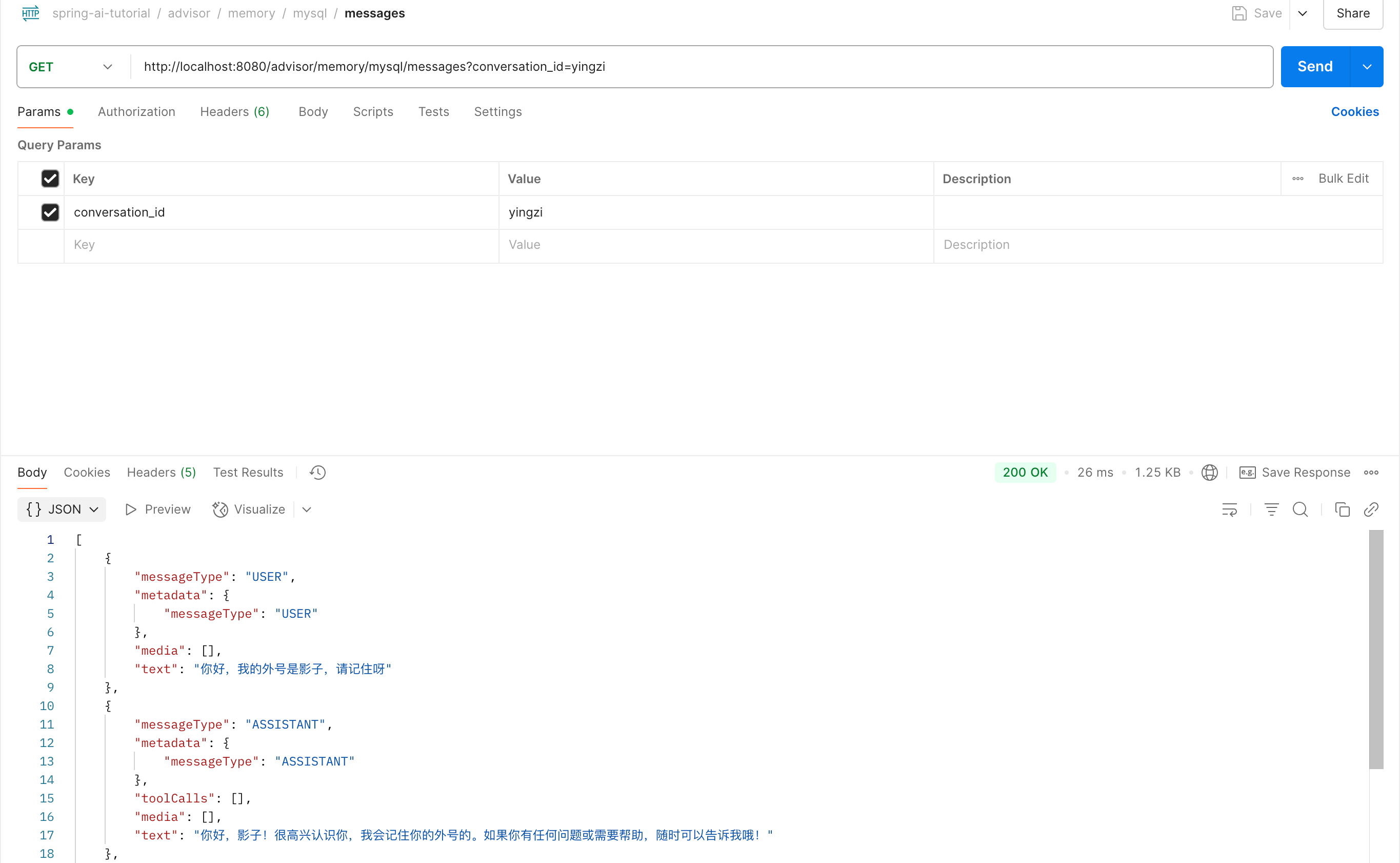

从 mysql 获取会话”yingzi”对应的消息

Redis

RedisMemoryConfig

package com.spring.ai.tutorial.advisor.memory.config;


import com.alibaba.cloud.ai.memory.redis.RedisChatMemoryRepository;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;


@Configuration
public class RedisMemoryConfig {


    @Value("${spring.ai.memory.redis.host}")
    private String redisHost;
    @Value("${spring.ai.memory.redis.port}")
    private int redisPort;
    @Value("${spring.ai.memory.redis.password}")
    private String redisPassword;
    @Value("${spring.ai.memory.redis.timeout}")
    private int redisTimeout;


    @Bean
    public RedisChatMemoryRepository redisChatMemoryRepository() {
        return RedisChatMemoryRepository.builder()
                .host(redisHost)
                .port(redisPort)
                // 若没有设置密码则注释该项
//           .password(redisPassword)
                .timeout(redisTimeout)
                .build();
    }
}

RedisMemoryController

package com.spring.ai.tutorial.advisor.memory.controller;


import com.alibaba.cloud.ai.memory.redis.RedisChatMemoryRepository;
import org.springframework.ai.chat.client.ChatClient;
import org.springframework.ai.chat.client.advisor.MessageChatMemoryAdvisor;
import org.springframework.ai.chat.memory.MessageWindowChatMemory;
import org.springframework.ai.chat.messages.Message;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;


import java.util.List;


import static org.springframework.ai.chat.memory.ChatMemory.CONVERSATIONID;


@RestController
@RequestMapping("/advisor/memory/redis")
public class RedisMemoryController {


    private final ChatClient chatClient;
    private final int MAXMESSAGES = 100;
    private final MessageWindowChatMemory messageWindowChatMemory;


    public RedisMemoryController(ChatClient.Builder builder, RedisChatMemoryRepository redisChatMemoryRepository) {
        this.messageWindowChatMemory = MessageWindowChatMemory.builder()
                .chatMemoryRepository(redisChatMemoryRepository)
                .maxMessages(MAXMESSAGES)
                .build();


        this.chatClient = builder
                .defaultAdvisors(
                        MessageChatMemoryAdvisor.builder(messageWindowChatMemory)
                                .build()
                )
                .build();
    }


    @GetMapping("/call")
    public String call(@RequestParam(value = "query", defaultValue = "你好，我的外号是影子，请记住呀") String query,
                       @RequestParam(value = "conversationid", defaultValue = "yingzi") String conversationId
    ) {
        return chatClient.prompt(query)
                .advisors(
                        a -> a.param(CONVERSATIONID, conversationId)
                )
                .call().content();
    }


    @GetMapping("/messages")
    public List<Message> messages(@RequestParam(value = "conversationid", defaultValue = "yingzi") String conversationId) {
        return messageWindowChatMemory.get(conversationId);
    }
}
效果

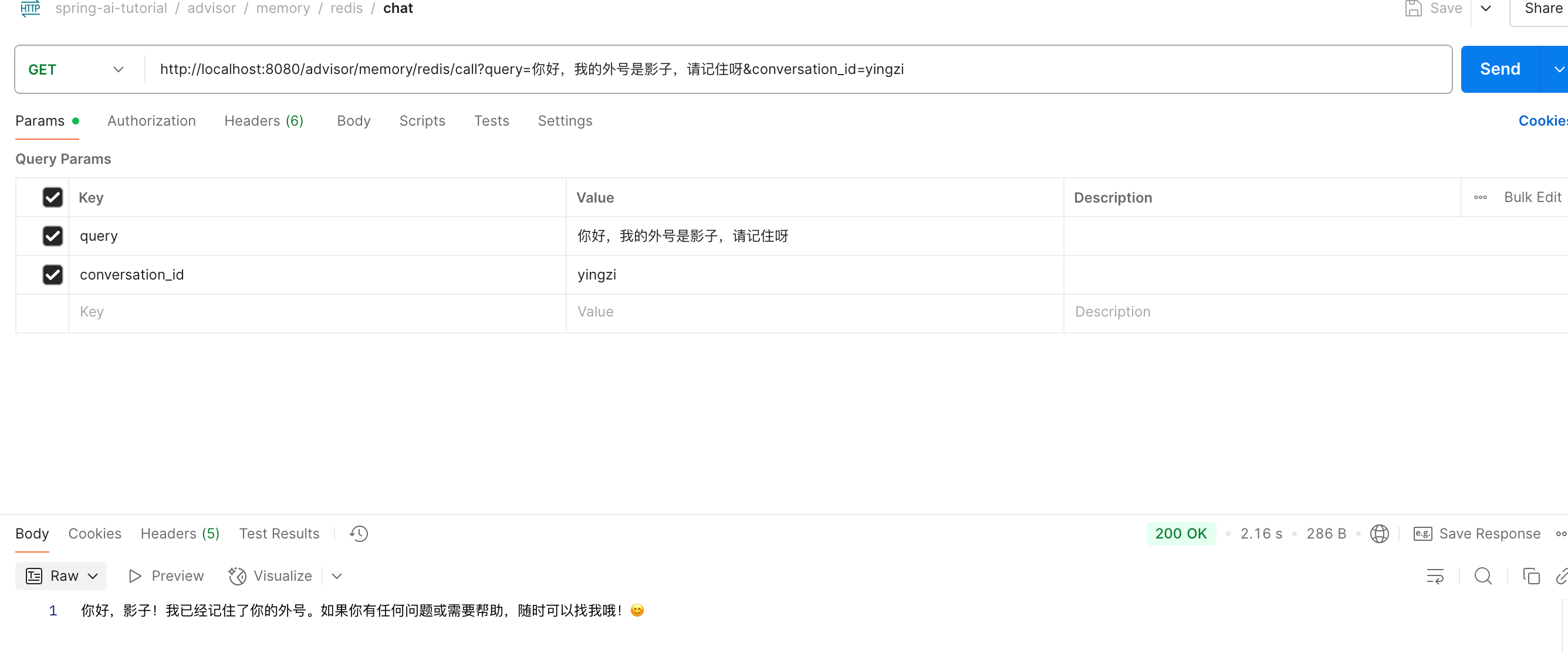

以会话”yingzi”发送消息，此时消息存储至 redis

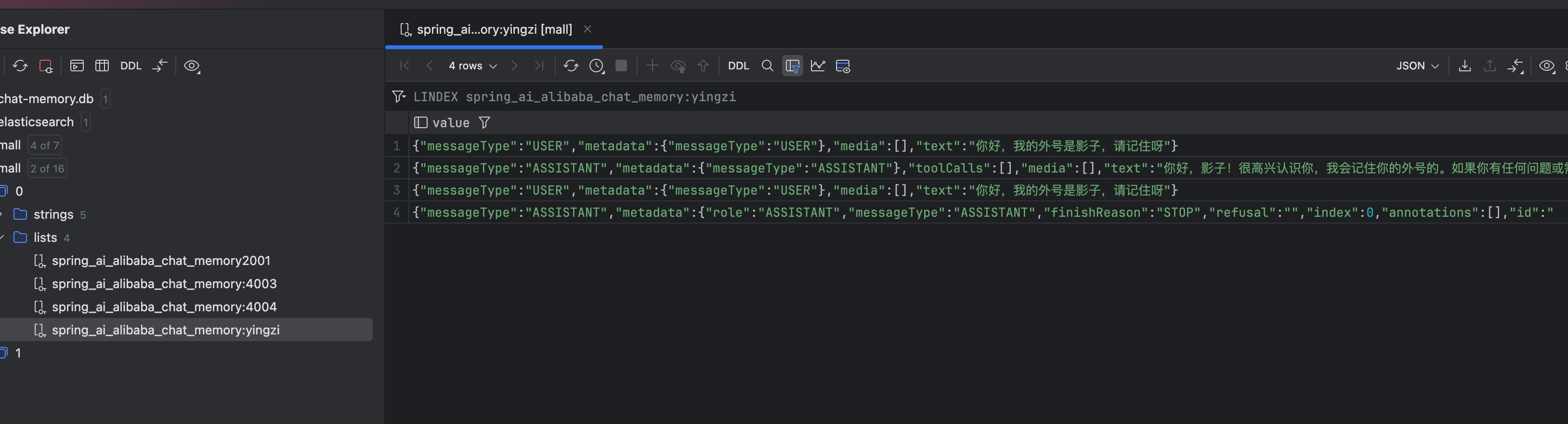

消息被存储至 redis 中

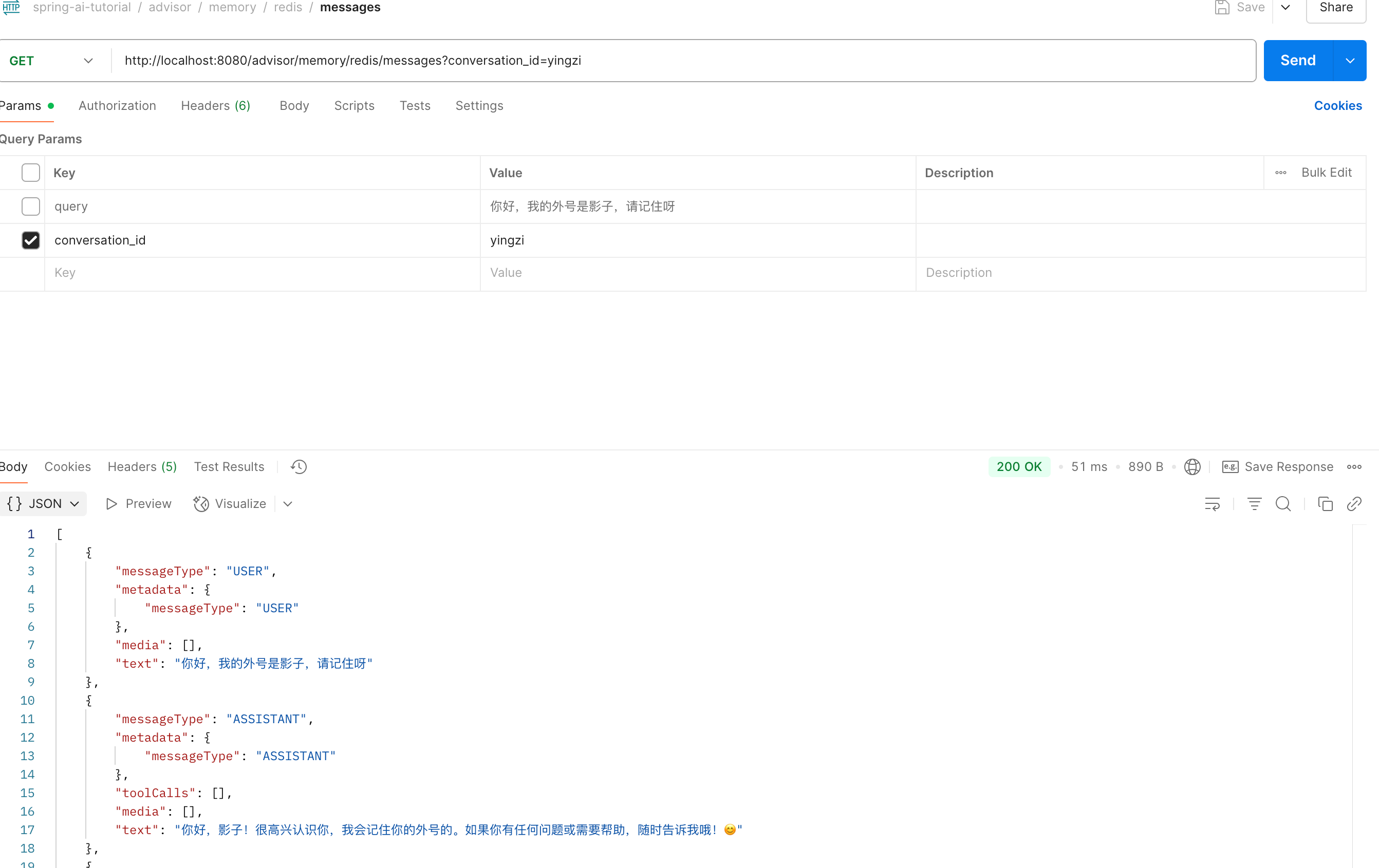

从 redis 获取会话”yingzi”对应的消息

Advisor 基础

基础提供了 SafeGuardAdvisor、SimpleLoggerAdvisor、ChatModelCallAdvisor、ChatModelStreamAdvisor、基于 BaseChatMemoryAdvisor 扩展的记忆功能

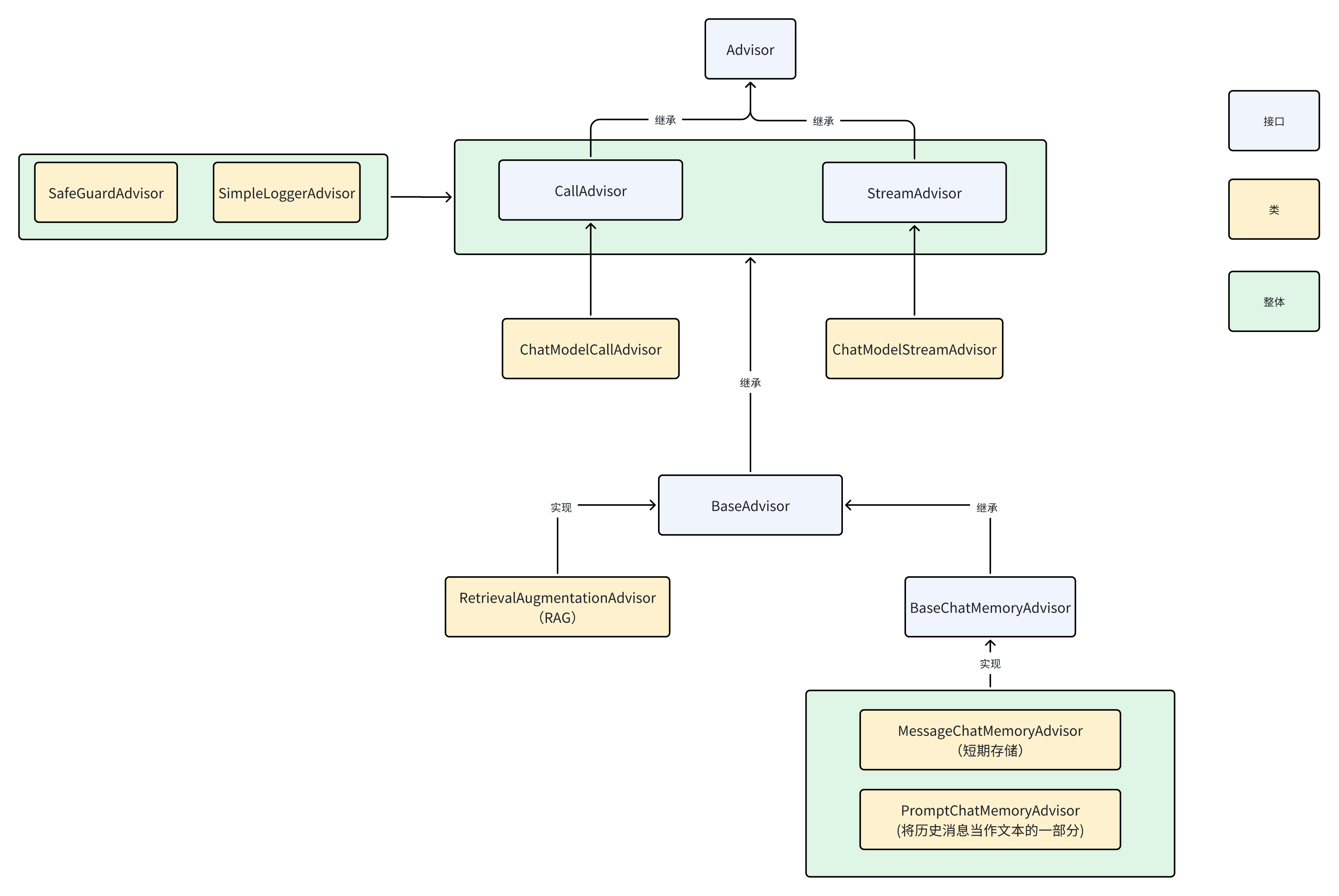

架构图

Advisor

advisor 基础信息配置

  • name：指定名字，确保唯一性
  • order：数值越小，执行越靠前
package org.springframework.ai.chat.client.advisor.api;


import org.springframework.core.Ordered;


public interface Advisor extends Ordered {
    int DEFAULTCHATMEMORYPRECEDENCEORDER = -2147482648;


    String getName();
}
package org.springframework.core;


public interface Ordered {
    int HIGHESTPRECEDENCE = Integer.MINVALUE;
    int LOWESTPRECEDENCE = Integer.MAXVALUE;


    int getOrder();
}

CallAdvisor

call 调用，跟 AI 模型交互前、后的一些逻辑

package org.springframework.ai.chat.client.advisor.api;


import org.springframework.ai.chat.client.ChatClientRequest;
import org.springframework.ai.chat.client.ChatClientResponse;


public interface CallAdvisor extends Advisor {
    ChatClientResponse adviseCall(ChatClientRequest chatClientRequest, CallAdvisorChain callAdvisorChain);
}

StreamAdvisor

Stream 调用，跟 AI 模型交互前、后的一些逻

package org.springframework.ai.chat.client.advisor.api;


import org.springframework.ai.chat.client.ChatClientRequest;
import org.springframework.ai.chat.client.ChatClientResponse;
import reactor.core.publisher.Flux;


public interface StreamAdvisor extends Advisor {
    Flux<ChatClientResponse> adviseStream(ChatClientRequest chatClientRequest, StreamAdvisorChain streamAdvisorChain);
}

BaseAdvisor

类说明：继承 CallAdvisor、StreamAdvisor，提供统一扩展点，统计拦截机制实现与 AI 模型请求和响应后的统一交互逻辑。

字段说明

字段名称
类型
描述
DEFAULTSCHEDULER
Scheduler
定义默认调度器Schedulers.boundedElastic()，用于流式处理时的线程调度

方法说明

方法名称
描述
adviseCall
同步调用，拦截call调用AI模型的请求和响应。子类实现before、after方法
adviseStream
流式调用，拦截stream调用AI模型的请求和响应。子类实现before、after方法
before
AI模型请求前的逻辑，需要子类实现
after
AI模型响应后的逻辑，需要子类实现
package org.springframework.ai.chat.client.advisor.api;


import java.util.Objects;
import org.springframework.ai.chat.client.ChatClientRequest;
import org.springframework.ai.chat.client.ChatClientResponse;
import org.springframework.ai.chat.client.advisor.AdvisorUtils;
import org.springframework.util.Assert;
import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;
import reactor.core.scheduler.Scheduler;
import reactor.core.scheduler.Schedulers;


public interface BaseAdvisor extends CallAdvisor, StreamAdvisor {
    Scheduler DEFAULTSCHEDULER = Schedulers.boundedElastic();


    default ChatClientResponse adviseCall(ChatClientRequest chatClientRequest, CallAdvisorChain callAdvisorChain) {
        Assert.notNull(chatClientRequest, "chatClientRequest cannot be null");
        Assert.notNull(callAdvisorChain, "callAdvisorChain cannot be null");
        ChatClientRequest processedChatClientRequest = this.before(chatClientRequest, callAdvisorChain);
        ChatClientResponse chatClientResponse = callAdvisorChain.nextCall(processedChatClientRequest);
        return this.after(chatClientResponse, callAdvisorChain);
    }


    default Flux<ChatClientResponse> adviseStream(ChatClientRequest chatClientRequest, StreamAdvisorChain streamAdvisorChain) {
        Assert.notNull(chatClientRequest, "chatClientRequest cannot be null");
        Assert.notNull(streamAdvisorChain, "streamAdvisorChain cannot be null");
        Assert.notNull(this.getScheduler(), "scheduler cannot be null");
        Mono var10000 = Mono.just(chatClientRequest).publishOn(this.getScheduler()).map((request) -> this.before(request, streamAdvisorChain));
        Objects.requireNonNull(streamAdvisorChain);
        Flux<ChatClientResponse> chatClientResponseFlux = var10000.flatMapMany(streamAdvisorChain::nextStream);
        return chatClientResponseFlux.map((response) -> {
            if (AdvisorUtils.onFinishReason().test(response)) {
                response = this.after(response, streamAdvisorChain);
            }


            return response;
        }).onErrorResume((error) -> Flux.error(new IllegalStateException("Stream processing failed", error)));
    }


    default String getName() {
        return this.getClass().getSimpleName();
    }


    ChatClientRequest before(ChatClientRequest chatClientRequest, AdvisorChain advisorChain);


    ChatClientResponse after(ChatClientResponse chatClientResponse, AdvisorChain advisorChain);


    default Scheduler getScheduler() {
        return DEFAULTSCHEDULER;
    }
}

SafeGuardAdvisor

类的作用：在用户输入中检测敏感词，并在发现敏感词时阻止调用模型并返回预设的失败响应

敏感词匹配规则，实现设置一系列敏感词列表，校验提示词中是否包含敏感词

if (!CollectionUtils.isEmpty(this.sensitiveWords)
       && this.sensitiveWords.stream().anyMatch(w -> chatClientRequest.prompt().getContents().contains(w))) {
    return createFailureResponse(chatClientRequest);
}
package org.springframework.ai.chat.client.advisor;


import java.util.List;
import java.util.Map;
import org.springframework.ai.chat.client.ChatClientRequest;
import org.springframework.ai.chat.client.ChatClientResponse;
import org.springframework.ai.chat.client.advisor.api.CallAdvisor;
import org.springframework.ai.chat.client.advisor.api.CallAdvisorChain;
import org.springframework.ai.chat.client.advisor.api.StreamAdvisor;
import org.springframework.ai.chat.client.advisor.api.StreamAdvisorChain;
import org.springframework.ai.chat.messages.AssistantMessage;
import org.springframework.ai.chat.model.ChatResponse;
import org.springframework.ai.chat.model.Generation;
import org.springframework.util.Assert;
import org.springframework.util.CollectionUtils;
import reactor.core.publisher.Flux;


public class SafeGuardAdvisor implements CallAdvisor, StreamAdvisor {
    private static final String DEFAULTFAILURERESPONSE = "I'm unable to respond to that due to sensitive content. Could we rephrase or discuss something else?";
    private static final int DEFAULTORDER = 0;
    private final String failureResponse;
    private final List<String> sensitiveWords;
    private final int order;


    public SafeGuardAdvisor(List<String> sensitiveWords) {
        this(sensitiveWords, "I'm unable to respond to that due to sensitive content. Could we rephrase or discuss something else?", 0);
    }


    public SafeGuardAdvisor(List<String> sensitiveWords, String failureResponse, int order) {
        Assert.notNull(sensitiveWords, "Sensitive words must not be null!");
        Assert.notNull(failureResponse, "Failure response must not be null!");
        this.sensitiveWords = sensitiveWords;
        this.failureResponse = failureResponse;
        this.order = order;
    }


    public static Builder builder() {
        return new Builder();
    }


    public String getName() {
        return this.getClass().getSimpleName();
    }


    public ChatClientResponse adviseCall(ChatClientRequest chatClientRequest, CallAdvisorChain callAdvisorChain) {
        return !CollectionUtils.isEmpty(this.sensitiveWords) && this.sensitiveWords.stream().anyMatch((w) -> chatClientRequest.prompt().getContents().contains(w)) ? this.createFailureResponse(chatClientRequest) : callAdvisorChain.nextCall(chatClientRequest);
    }


    public Flux<ChatClientResponse> adviseStream(ChatClientRequest chatClientRequest, StreamAdvisorChain streamAdvisorChain) {
        return !CollectionUtils.isEmpty(this.sensitiveWords) && this.sensitiveWords.stream().anyMatch((w) -> chatClientRequest.prompt().getContents().contains(w)) ? Flux.just(this.createFailureResponse(chatClientRequest)) : streamAdvisorChain.nextStream(chatClientRequest);
    }


    private ChatClientResponse createFailureResponse(ChatClientRequest chatClientRequest) {
        return ChatClientResponse.builder().chatResponse(ChatResponse.builder().generations(List.of(new Generation(new AssistantMessage(this.failureResponse)))).build()).context(Map.copyOf(chatClientRequest.context())).build();
    }


    public int getOrder() {
        return this.order;
    }


    public static final class Builder {
        private List<String> sensitiveWords;
        private String failureResponse = "I'm unable to respond to that due to sensitive content. Could we rephrase or discuss something else?";
        private int order = 0;


        private Builder() {
        }


        public Builder sensitiveWords(List<String> sensitiveWords) {
            this.sensitiveWords = sensitiveWords;
            return this;
        }


        public Builder failureResponse(String failureResponse) {
            this.failureResponse = failureResponse;
            return this;
        }


        public Builder order(int order) {
            this.order = order;
            return this;
        }


        public SafeGuardAdvisor build() {
            return new SafeGuardAdvisor(this.sensitiveWords, this.failureResponse, this.order);
        }
    }
}

SimpleLoggerAdvisor

类的作用：主要用于日志记录，打印请求、响应等信息，默认 JSON 格式化输出

package org.springframework.ai.chat.client.advisor;


import java.util.function.Function;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.ai.chat.client.ChatClientMessageAggregator;
import org.springframework.ai.chat.client.ChatClientRequest;
import org.springframework.ai.chat.client.ChatClientResponse;
import org.springframework.ai.chat.client.advisor.api.CallAdvisor;
import org.springframework.ai.chat.client.advisor.api.CallAdvisorChain;
import org.springframework.ai.chat.client.advisor.api.StreamAdvisor;
import org.springframework.ai.chat.client.advisor.api.StreamAdvisorChain;
import org.springframework.ai.chat.model.ChatResponse;
import org.springframework.ai.model.ModelOptionsUtils;
import org.springframework.lang.Nullable;
import reactor.core.publisher.Flux;


public class SimpleLoggerAdvisor implements CallAdvisor, StreamAdvisor {
    public static final Function<ChatClientRequest, String> DEFAULTREQUESTTOSTRING = ChatClientRequest::toString;
    public static final Function<ChatResponse, String> DEFAULTRESPONSETOSTRING = ModelOptionsUtils::toJsonStringPrettyPrinter;
    private static final Logger logger = LoggerFactory.getLogger(SimpleLoggerAdvisor.class);
    private final Function<ChatClientRequest, String> requestToString;
    private final Function<ChatResponse, String> responseToString;
    private final int order;


    public SimpleLoggerAdvisor() {
        this(DEFAULTREQUESTTOSTRING, DEFAULTRESPONSETOSTRING, 0);
    }


    public SimpleLoggerAdvisor(int order) {
        this(DEFAULTREQUESTTOSTRING, DEFAULTRESPONSETOSTRING, order);
    }


    public SimpleLoggerAdvisor(@Nullable Function<ChatClientRequest, String> requestToString, @Nullable Function<ChatResponse, String> responseToString, int order) {
        this.requestToString = requestToString != null ? requestToString : DEFAULTREQUESTTOSTRING;
        this.responseToString = responseToString != null ? responseToString : DEFAULTRESPONSETOSTRING;
        this.order = order;
    }


    public ChatClientResponse adviseCall(ChatClientRequest chatClientRequest, CallAdvisorChain callAdvisorChain) {
        this.logRequest(chatClientRequest);
        ChatClientResponse chatClientResponse = callAdvisorChain.nextCall(chatClientRequest);
        this.logResponse(chatClientResponse);
        return chatClientResponse;
    }


    public Flux<ChatClientResponse> adviseStream(ChatClientRequest chatClientRequest, StreamAdvisorChain streamAdvisorChain) {
        this.logRequest(chatClientRequest);
        Flux<ChatClientResponse> chatClientResponses = streamAdvisorChain.nextStream(chatClientRequest);
        return (new ChatClientMessageAggregator()).aggregateChatClientResponse(chatClientResponses, this::logResponse);
    }


    private void logRequest(ChatClientRequest request) {
        logger.debug("request: {}", this.requestToString.apply(request));
    }


    private void logResponse(ChatClientResponse chatClientResponse) {
        logger.debug("response: {}", this.responseToString.apply(chatClientResponse.chatResponse()));
    }


    public String getName() {
        return this.getClass().getSimpleName();
    }


    public int getOrder() {
        return this.order;
    }


    public String toString() {
        return SimpleLoggerAdvisor.class.getSimpleName();
    }


    public static Builder builder() {
        return new Builder();
    }


    public static final class Builder {
        private Function<ChatClientRequest, String> requestToString;
        private Function<ChatResponse, String> responseToString;
        private int order = 0;


        private Builder() {
        }


        public Builder requestToString(Function<ChatClientRequest, String> requestToString) {
            this.requestToString = requestToString;
            return this;
        }


        public Builder responseToString(Function<ChatResponse, String> responseToString) {
            this.responseToString = responseToString;
            return this;
        }


        public Builder order(int order) {
            this.order = order;
            return this;
        }


        public SimpleLoggerAdvisor build() {
            return new SimpleLoggerAdvisor(this.requestToString, this.responseToString, this.order);
        }
    }
}

ChatModelCallAdvisor

类的作用：使用注入的 ChatModel 实例执行 AI 模型 call 调用，若上下文中包含OUTPUTFORMAT，会将其附加到用户提示中，以指导模型生成符合预期格式的内容，通常作为增强器链的最后一个

package org.springframework.ai.chat.client.advisor;


import java.util.Map;
import org.springframework.ai.chat.client.ChatClientAttributes;
import org.springframework.ai.chat.client.ChatClientRequest;
import org.springframework.ai.chat.client.ChatClientResponse;
import org.springframework.ai.chat.client.advisor.api.CallAdvisor;
import org.springframework.ai.chat.client.advisor.api.CallAdvisorChain;
import org.springframework.ai.chat.messages.UserMessage;
import org.springframework.ai.chat.model.ChatModel;
import org.springframework.ai.chat.model.ChatResponse;
import org.springframework.ai.chat.prompt.Prompt;
import org.springframework.util.Assert;
import org.springframework.util.StringUtils;


public final class ChatModelCallAdvisor implements CallAdvisor {
    private final ChatModel chatModel;


    private ChatModelCallAdvisor(ChatModel chatModel) {
        Assert.notNull(chatModel, "chatModel cannot be null");
        this.chatModel = chatModel;
    }


    public ChatClientResponse adviseCall(ChatClientRequest chatClientRequest, CallAdvisorChain callAdvisorChain) {
        Assert.notNull(chatClientRequest, "the chatClientRequest cannot be null");
        ChatClientRequest formattedChatClientRequest = augmentWithFormatInstructions(chatClientRequest);
        ChatResponse chatResponse = this.chatModel.call(formattedChatClientRequest.prompt());
        return ChatClientResponse.builder().chatResponse(chatResponse).context(Map.copyOf(formattedChatClientRequest.context())).build();
    }


    private static ChatClientRequest augmentWithFormatInstructions(ChatClientRequest chatClientRequest) {
        String outputFormat = (String)chatClientRequest.context().get(ChatClientAttributes.OUTPUTFORMAT.getKey());
        if (!StringUtils.hasText(outputFormat)) {
            return chatClientRequest;
        } else {
            Prompt augmentedPrompt = chatClientRequest.prompt().augmentUserMessage((userMessage) -> {
                UserMessage.Builder var10000 = userMessage.mutate();
                String var10001 = userMessage.getText();
                return var10000.text(var10001 + System.lineSeparator() + outputFormat).build();
            });
            return ChatClientRequest.builder().prompt(augmentedPrompt).context(Map.copyOf(chatClientRequest.context())).build();
        }
    }


    public String getName() {
        return "call";
    }


    public int getOrder() {
        return Integer.MAXVALUE;
    }


    public static Builder builder() {
        return new Builder();
    }


    public static final class Builder {
        private ChatModel chatModel;


        private Builder() {
        }


        public Builder chatModel(ChatModel chatModel) {
            this.chatModel = chatModel;
            return this;
        }


        public ChatModelCallAdvisor build() {
            return new ChatModelCallAdvisor(this.chatModel);
        }
    }
}

ChatModelStreamAdvisor

类的作用：使用注入的 ChatModel 实例执行 AI 模型 Stream 调用，将模型返回的 Flux 转换为标准格式的 Flux，通常作为增强器链的最后一个

  • 默认使用 Schedulers.boundedElastic() 进行线程切换，以避免阻塞主线程或影响响应性
package org.springframework.ai.chat.client.advisor;


import java.util.Map;
import org.springframework.ai.chat.client.ChatClientRequest;
import org.springframework.ai.chat.client.ChatClientResponse;
import org.springframework.ai.chat.client.advisor.api.StreamAdvisor;
import org.springframework.ai.chat.client.advisor.api.StreamAdvisorChain;
import org.springframework.ai.chat.model.ChatModel;
import org.springframework.util.Assert;
import reactor.core.publisher.Flux;
import reactor.core.scheduler.Schedulers;


public final class ChatModelStreamAdvisor implements StreamAdvisor {
    private final ChatModel chatModel;


    private ChatModelStreamAdvisor(ChatModel chatModel) {
        Assert.notNull(chatModel, "chatModel cannot be null");
        this.chatModel = chatModel;
    }


    public Flux<ChatClientResponse> adviseStream(ChatClientRequest chatClientRequest, StreamAdvisorChain streamAdvisorChain) {
        Assert.notNull(chatClientRequest, "the chatClientRequest cannot be null");
        return this.chatModel.stream(chatClientRequest.prompt()).map((chatResponse) -> ChatClientResponse.builder().chatResponse(chatResponse).context(Map.copyOf(chatClientRequest.context())).build()).publishOn(Schedulers.boundedElastic());
    }


    public String getName() {
        return "stream";
    }


    public int getOrder() {
        return Integer.MAXVALUE;
    }


    public static Builder builder() {
        return new Builder();
    }


    public static final class Builder {
        private ChatModel chatModel;


        private Builder() {
        }


        public Builder chatModel(ChatModel chatModel) {
            this.chatModel = chatModel;
            return this;
        }


        public ChatModelStreamAdvisor build() {
            return new ChatModelStreamAdvisor(this.chatModel);
        }
    }
}

BaseChatMemoryAdvisor 解读篇

BaseChatMemoryAdvisor

类说明：从传入的上下文 Map 中提取会话 Id，若不存在则使用默认值

package org.springframework.ai.chat.client.advisor.api;


import java.util.Map;
import org.springframework.util.Assert;


public interface BaseChatMemoryAdvisor extends BaseAdvisor {
    default String getConversationId(Map<String, Object> context, String defaultConversationId) {
        Assert.notNull(context, "context cannot be null");
        Assert.noNullElements(context.keySet().toArray(), "context cannot contain null keys");
        Assert.hasText(defaultConversationId, "defaultConversationId cannot be null or empty");
        return context.containsKey("chatmemoryconversationid") ? context.get("chatmemoryconversationid").toString() : defaultConversationId;
    }
}

MessageChatMemoryAdvisor

类的说明：消息记忆存储的 Advisor 类

字段说明

字段名称
类型
描述
order
int
指定顺序
defaultConversationId
String
默认会话Id
chatMemory
ChatMemory
聊天记忆接口
scheduler
Scheduler
流式处理时的线程调度

方法说明

方法名称
描述
before
1. 从ChatMemory中取出历史消息
2. 当前消息加入ChatMemory
3. 整合当前消息+历史消息
after
将模型响应的消息加入ChatMemory
adviseStream
覆盖了BaseAdvisor默认实现逻辑
- 注：在将多个流式响应合并成一个完整响应对象后，在调用after，确保只保留完整的模型输出，避免部分信息写入memory导致混乱
package org.springframework.ai.chat.client.advisor;


import java.util.ArrayList;
import java.util.List;
import java.util.Objects;
import org.springframework.ai.chat.client.ChatClientMessageAggregator;
import org.springframework.ai.chat.client.ChatClientRequest;
import org.springframework.ai.chat.client.ChatClientResponse;
import org.springframework.ai.chat.client.advisor.api.AdvisorChain;
import org.springframework.ai.chat.client.advisor.api.BaseAdvisor;
import org.springframework.ai.chat.client.advisor.api.BaseChatMemoryAdvisor;
import org.springframework.ai.chat.client.advisor.api.StreamAdvisorChain;
import org.springframework.ai.chat.memory.ChatMemory;
import org.springframework.ai.chat.messages.Message;
import org.springframework.ai.chat.messages.UserMessage;
import org.springframework.util.Assert;
import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;
import reactor.core.scheduler.Scheduler;


public final class MessageChatMemoryAdvisor implements BaseChatMemoryAdvisor {
    private final ChatMemory chatMemory;
    private final String defaultConversationId;
    private final int order;
    private final Scheduler scheduler;


    private MessageChatMemoryAdvisor(ChatMemory chatMemory, String defaultConversationId, int order, Scheduler scheduler) {
        Assert.notNull(chatMemory, "chatMemory cannot be null");
        Assert.hasText(defaultConversationId, "defaultConversationId cannot be null or empty");
        Assert.notNull(scheduler, "scheduler cannot be null");
        this.chatMemory = chatMemory;
        this.defaultConversationId = defaultConversationId;
        this.order = order;
        this.scheduler = scheduler;
    }


    public int getOrder() {
        return this.order;
    }


    public Scheduler getScheduler() {
        return this.scheduler;
    }


    public ChatClientRequest before(ChatClientRequest chatClientRequest, AdvisorChain advisorChain) {
        String conversationId = this.getConversationId(chatClientRequest.context(), this.defaultConversationId);
        List<Message> memoryMessages = this.chatMemory.get(conversationId);
        List<Message> processedMessages = new ArrayList(memoryMessages);
        processedMessages.addAll(chatClientRequest.prompt().getInstructions());
        ChatClientRequest processedChatClientRequest = chatClientRequest.mutate().prompt(chatClientRequest.prompt().mutate().messages(processedMessages).build()).build();
        UserMessage userMessage = processedChatClientRequest.prompt().getUserMessage();
        this.chatMemory.add(conversationId, userMessage);
        return processedChatClientRequest;
    }


    public ChatClientResponse after(ChatClientResponse chatClientResponse, AdvisorChain advisorChain) {
        List<Message> assistantMessages = new ArrayList();
        if (chatClientResponse.chatResponse() != null) {
            assistantMessages = chatClientResponse.chatResponse().getResults().stream().map((g) -> g.getOutput()).toList();
        }


        this.chatMemory.add(this.getConversationId(chatClientResponse.context(), this.defaultConversationId), assistantMessages);
        return chatClientResponse;
    }


    public Flux<ChatClientResponse> adviseStream(ChatClientRequest chatClientRequest, StreamAdvisorChain streamAdvisorChain) {
        Scheduler scheduler = this.getScheduler();
        Mono var10000 = Mono.just(chatClientRequest).publishOn(scheduler).map((request) -> this.before(request, streamAdvisorChain));
        Objects.requireNonNull(streamAdvisorChain);
        return var10000.flatMapMany(streamAdvisorChain::nextStream).transform((flux) -> (new ChatClientMessageAggregator()).aggregateChatClientResponse(flux, (response) -> this.after(response, streamAdvisorChain)));
    }


    public static Builder builder(ChatMemory chatMemory) {
        return new Builder(chatMemory);
    }


    public static final class Builder {
        private String conversationId = "default";
        private int order = -2147482648;
        private Scheduler scheduler;
        private ChatMemory chatMemory;


        private Builder(ChatMemory chatMemory) {
            this.scheduler = BaseAdvisor.DEFAULTSCHEDULER;
            this.chatMemory = chatMemory;
        }


        public Builder conversationId(String conversationId) {
            this.conversationId = conversationId;
            return this;
        }


        public Builder order(int order) {
            this.order = order;
            return this;
        }


        public Builder scheduler(Scheduler scheduler) {
            this.scheduler = scheduler;
            return this;
        }


        public MessageChatMemoryAdvisor build() {
            return new MessageChatMemoryAdvisor(this.chatMemory, this.conversationId, this.order, this.scheduler);
        }
    }
}

PromptChatMemoryAdvisor

类的说明：将聊天记忆嵌入到系统提示词的 Advisor 类

字段说明

字段名称
类型
描述
order
int
指定顺序
defaultConversationId
String
默认会话Id
chatMemory
ChatMemory
聊天记忆接口
scheduler
Scheduler
流式处理时的线程调度
systemPromptTemplate
PromptTemplate
当前使用的系统提示模板

方法说明

方法名称
描述
before
1. 从ChatMemory中取出历史消息
2. 当前消息加入ChatMemory
3. 将历史消息结合系统提示消息作为最新的系统提示
after
将模型响应的消息加入ChatMemory
adviseStream
覆盖了BaseAdvisor默认实现逻辑
- 注：在将多个流式响应合并成一个完整响应对象后，在调用after，确保只保留完整的模型输出，避免部分信息写入memory导致混乱
package org.springframework.ai.chat.client.advisor;


import java.util.ArrayList;
import java.util.List;
import java.util.Map;
import java.util.Objects;
import java.util.stream.Collectors;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.ai.chat.client.ChatClientMessageAggregator;
import org.springframework.ai.chat.client.ChatClientRequest;
import org.springframework.ai.chat.client.ChatClientResponse;
import org.springframework.ai.chat.client.advisor.api.AdvisorChain;
import org.springframework.ai.chat.client.advisor.api.BaseAdvisor;
import org.springframework.ai.chat.client.advisor.api.BaseChatMemoryAdvisor;
import org.springframework.ai.chat.client.advisor.api.StreamAdvisorChain;
import org.springframework.ai.chat.memory.ChatMemory;
import org.springframework.ai.chat.messages.Message;
import org.springframework.ai.chat.messages.MessageType;
import org.springframework.ai.chat.messages.SystemMessage;
import org.springframework.ai.chat.messages.UserMessage;
import org.springframework.ai.chat.prompt.PromptTemplate;
import org.springframework.util.Assert;
import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;
import reactor.core.scheduler.Scheduler;


public final class PromptChatMemoryAdvisor implements BaseChatMemoryAdvisor {
    private static final Logger logger = LoggerFactory.getLogger(PromptChatMemoryAdvisor.class);
    private static final PromptTemplate DEFAULTSYSTEMPROMPTTEMPLATE = new PromptTemplate("{instructions}\n\nUse the conversation memory from the MEMORY section to provide accurate answers.\n\n---------------------\nMEMORY:\n{memory}\n---------------------\n\n");
    private final PromptTemplate systemPromptTemplate;
    private final String defaultConversationId;
    private final int order;
    private final Scheduler scheduler;
    private final ChatMemory chatMemory;


    private PromptChatMemoryAdvisor(ChatMemory chatMemory, String defaultConversationId, int order, Scheduler scheduler, PromptTemplate systemPromptTemplate) {
        Assert.notNull(chatMemory, "chatMemory cannot be null");
        Assert.hasText(defaultConversationId, "defaultConversationId cannot be null or empty");
        Assert.notNull(scheduler, "scheduler cannot be null");
        Assert.notNull(systemPromptTemplate, "systemPromptTemplate cannot be null");
        this.chatMemory = chatMemory;
        this.defaultConversationId = defaultConversationId;
        this.order = order;
        this.scheduler = scheduler;
        this.systemPromptTemplate = systemPromptTemplate;
    }


    public static Builder builder(ChatMemory chatMemory) {
        return new Builder(chatMemory);
    }


    public int getOrder() {
        return this.order;
    }


    public Scheduler getScheduler() {
        return this.scheduler;
    }


    public ChatClientRequest before(ChatClientRequest chatClientRequest, AdvisorChain advisorChain) {
        String conversationId = this.getConversationId(chatClientRequest.context(), this.defaultConversationId);
        List<Message> memoryMessages = this.chatMemory.get(conversationId);
        logger.debug("[PromptChatMemoryAdvisor.before] Memory before processing for conversationId={}: {}", conversationId, memoryMessages);
        String memory = (String)memoryMessages.stream().filter((m) -> m.getMessageType() == MessageType.USER || m.getMessageType() == MessageType.ASSISTANT).map((m) -> {
            String var10000 = String.valueOf(m.getMessageType());
            return var10000 + ":" + m.getText();
        }).collect(Collectors.joining(System.lineSeparator()));
        SystemMessage systemMessage = chatClientRequest.prompt().getSystemMessage();
        String augmentedSystemText = this.systemPromptTemplate.render(Map.of("instructions", systemMessage.getText(), "memory", memory));
        ChatClientRequest processedChatClientRequest = chatClientRequest.mutate().prompt(chatClientRequest.prompt().augmentSystemMessage(augmentedSystemText)).build();
        UserMessage userMessage = processedChatClientRequest.prompt().getUserMessage();
        this.chatMemory.add(conversationId, userMessage);
        return processedChatClientRequest;
    }


    public ChatClientResponse after(ChatClientResponse chatClientResponse, AdvisorChain advisorChain) {
        List<Message> assistantMessages = new ArrayList();
        if (chatClientResponse.chatResponse() != null) {
            assistantMessages = chatClientResponse.chatResponse().getResults().stream().map((g) -> g.getOutput()).toList();
        } else if (chatClientResponse.chatResponse() != null && chatClientResponse.chatResponse().getResult() != null && chatClientResponse.chatResponse().getResult().getOutput() != null) {
            assistantMessages = List.of(chatClientResponse.chatResponse().getResult().getOutput());
        }


        if (!assistantMessages.isEmpty()) {
            this.chatMemory.add(this.getConversationId(chatClientResponse.context(), this.defaultConversationId), assistantMessages);
            logger.debug("[PromptChatMemoryAdvisor.after] Added ASSISTANT messages to memory for conversationId={}: {}", this.getConversationId(chatClientResponse.context(), this.defaultConversationId), assistantMessages);
            List<Message> memoryMessages = this.chatMemory.get(this.getConversationId(chatClientResponse.context(), this.defaultConversationId));
            logger.debug("[PromptChatMemoryAdvisor.after] Memory after ASSISTANT add for conversationId={}: {}", this.getConversationId(chatClientResponse.context(), this.defaultConversationId), memoryMessages);
        }


        return chatClientResponse;
    }


    public Flux<ChatClientResponse> adviseStream(ChatClientRequest chatClientRequest, StreamAdvisorChain streamAdvisorChain) {
        Scheduler scheduler = this.getScheduler();
        Mono var10000 = Mono.just(chatClientRequest).publishOn(scheduler).map((request) -> this.before(request, streamAdvisorChain));
        Objects.requireNonNull(streamAdvisorChain);
        return var10000.flatMapMany(streamAdvisorChain::nextStream).transform((flux) -> (new ChatClientMessageAggregator()).aggregateChatClientResponse(flux, (response) -> this.after(response, streamAdvisorChain)));
    }


    public static final class Builder {
        private PromptTemplate systemPromptTemplate;
        private String conversationId;
        private int order;
        private Scheduler scheduler;
        private ChatMemory chatMemory;


        private Builder(ChatMemory chatMemory) {
            this.systemPromptTemplate = PromptChatMemoryAdvisor.DEFAULTSYSTEMPROMPTTEMPLATE;
            this.conversationId = "default";
            this.order = -2147482648;
            this.scheduler = BaseAdvisor.DEFAULTSCHEDULER;
            this.chatMemory = chatMemory;
        }


        public Builder systemPromptTemplate(PromptTemplate systemPromptTemplate) {
            this.systemPromptTemplate = systemPromptTemplate;
            return this;
        }


        public Builder conversationId(String conversationId) {
            this.conversationId = conversationId;
            return this;
        }


        public Builder scheduler(Scheduler scheduler) {
            this.scheduler = scheduler;
            return this;
        }


        public Builder order(int order) {
            this.order = order;
            return this;
        }


        public PromptChatMemoryAdvisor build() {
            return new PromptChatMemoryAdvisor(this.chatMemory, this.conversationId, this.order, this.scheduler, this.systemPromptTemplate);
        }
    }
}

ChatMemory

类说明：管理会话聊天记忆的接口，提供了保存、获取、清除对话消息的基本功能

字段说明

字段名称
类型
描述
CONVERSATIONID
String
会话Id。当作键，方便提取对应的List

方法说明

方法名称
描述
add
添加消息到指定会话Id中
get
根据指定会话Id获取消息
clear
根据会话Id清除消息
package org.springframework.ai.chat.memory;


import java.util.List;
import org.springframework.ai.chat.messages.Message;
import org.springframework.util.Assert;


public interface ChatMemory {
    String DEFAULTCONVERSATIONID = "default";
    String CONVERSATIONID = "chatmemoryconversationid";


    default void add(String conversationId, Message message) {
        Assert.hasText(conversationId, "conversationId cannot be null or empty");
        Assert.notNull(message, "message cannot be null");
        this.add(conversationId, List.of(message));
    }


    void add(String conversationId, List<Message> messages);


    List<Message> get(String conversationId);


    void clear(String conversationId);
}

MessageWindowChatMemory

类说明：消息窗口类，提供了保存、获取、清除对话消息的基本功能

字段说明

字段名称
类型
描述
maxMessages
int
当前会话最多保留的消息数量
chatMemoryRepository
ChatMemoryRepository
存储后端，实现该接口可拓展内存、Mysql、Redis、ES等数据库存储消息

其他方法说明

方法名称
描述
process
用于控制消息数量，核心逻辑下
1. 新增 SystemMessage 时，清除之前的 SystemMessage
2. 若消息数超过限制，优先保留SystemMessage
package org.springframework.ai.chat.memory;


import java.util.ArrayList;
import java.util.HashSet;
import java.util.List;
import java.util.Objects;
import java.util.Set;
import java.util.stream.Stream;
import org.springframework.ai.chat.messages.Message;
import org.springframework.ai.chat.messages.SystemMessage;
import org.springframework.util.Assert;


public final class MessageWindowChatMemory implements ChatMemory {
    private static final int DEFAULTMAXMESSAGES = 20;
    private final ChatMemoryRepository chatMemoryRepository;
    private final int maxMessages;


    private MessageWindowChatMemory(ChatMemoryRepository chatMemoryRepository, int maxMessages) {
        Assert.notNull(chatMemoryRepository, "chatMemoryRepository cannot be null");
        Assert.isTrue(maxMessages > 0, "maxMessages must be greater than 0");
        this.chatMemoryRepository = chatMemoryRepository;
        this.maxMessages = maxMessages;
    }


    public void add(String conversationId, List<Message> messages) {
        Assert.hasText(conversationId, "conversationId cannot be null or empty");
        Assert.notNull(messages, "messages cannot be null");
        Assert.noNullElements(messages, "messages cannot contain null elements");
        List<Message> memoryMessages = this.chatMemoryRepository.findByConversationId(conversationId);
        List<Message> processedMessages = this.process(memoryMessages, messages);
        this.chatMemoryRepository.saveAll(conversationId, processedMessages);
    }


    public List<Message> get(String conversationId) {
        Assert.hasText(conversationId, "conversationId cannot be null or empty");
        return this.chatMemoryRepository.findByConversationId(conversationId);
    }


    public void clear(String conversationId) {
        Assert.hasText(conversationId, "conversationId cannot be null or empty");
        this.chatMemoryRepository.deleteByConversationId(conversationId);
    }


    private List<Message> process(List<Message> memoryMessages, List<Message> newMessages) {
        List<Message> processedMessages = new ArrayList();
        Set<Message> memoryMessagesSet = new HashSet(memoryMessages);
        Stream var10000 = newMessages.stream();
        Objects.requireNonNull(SystemMessage.class);
        boolean hasNewSystemMessage = var10000.filter(SystemMessage.class::isInstance).anyMatch((messagex) -> !memoryMessagesSet.contains(messagex));
        var10000 = memoryMessages.stream().filter((messagex) -> !hasNewSystemMessage || !(messagex instanceof SystemMessage));
        Objects.requireNonNull(processedMessages);
        var10000.forEach(processedMessages::add);
        processedMessages.addAll(newMessages);
        if (processedMessages.size() <= this.maxMessages) {
            return processedMessages;
        } else {
            int messagesToRemove = processedMessages.size() - this.maxMessages;
            List<Message> trimmedMessages = new ArrayList();
            int removed = 0;


            for(Message message : processedMessages) {
                if (!(message instanceof SystemMessage) && removed < messagesToRemove) {
                    ++removed;
                } else {
                    trimmedMessages.add(message);
                }
            }


            return trimmedMessages;
        }
    }


    public static Builder builder() {
        return new Builder();
    }


    public static final class Builder {
        private ChatMemoryRepository chatMemoryRepository;
        private int maxMessages = 20;


        private Builder() {
        }


        public Builder chatMemoryRepository(ChatMemoryRepository chatMemoryRepository) {
            this.chatMemoryRepository = chatMemoryRepository;
            return this;
        }


        public Builder maxMessages(int maxMessages) {
            this.maxMessages = maxMessages;
            return this;
        }


        public MessageWindowChatMemory build() {
            if (this.chatMemoryRepository == null) {
                this.chatMemoryRepository = new InMemoryChatMemoryRepository();
            }


            return new MessageWindowChatMemory(this.chatMemoryRepository, this.maxMessages);
        }
    }
}

ChatMemoryRepository

package org.springframework.ai.chat.memory;


import java.util.List;
import org.springframework.ai.chat.messages.Message;


public interface ChatMemoryRepository {
    List<String> findConversationIds();


    List<Message> findByConversationId(String conversationId);


    void saveAll(String conversationId, List<Message> messages);


    void deleteByConversationId(String conversationId);
}

InMemoryChatMemoryRepository

类说明：基于内存的实际存储数据，维护一个会话 Id 到消息列表的键值对

package org.springframework.ai.chat.memory;


import java.util.ArrayList;
import java.util.List;
import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;
import org.springframework.ai.chat.messages.Message;
import org.springframework.util.Assert;


public final class InMemoryChatMemoryRepository implements ChatMemoryRepository {
    Map<String, List<Message>> chatMemoryStore = new ConcurrentHashMap();


    public List<String> findConversationIds() {
        return new ArrayList(this.chatMemoryStore.keySet());
    }


    public List<Message> findByConversationId(String conversationId) {
        Assert.hasText(conversationId, "conversationId cannot be null or empty");
        List<Message> messages = (List)this.chatMemoryStore.get(conversationId);
        return (List<Message>)(messages != null ? new ArrayList(messages) : List.of());
    }


    public void saveAll(String conversationId, List<Message> messages) {
        Assert.hasText(conversationId, "conversationId cannot be null or empty");
        Assert.notNull(messages, "messages cannot be null");
        Assert.noNullElements(messages, "messages cannot contain null elements");
        this.chatMemoryStore.put(conversationId, messages);
    }


    public void deleteByConversationId(String conversationId) {
        Assert.hasText(conversationId, "conversationId cannot be null or empty");
        this.chatMemoryStore.remove(conversationId);
    }
}

问题

MessageChatMemoryAdvisor 和 PromptChatMemoryAdvisor 的区别是什么？

PromptChatMemoryAdvisor

  1. 有些模型可能可能不支持 message

    1. 如本地部署，LLaMA、BLOOM 等 text-in/text-out 模型

  2. 调试时，希望快速看到完整上下文

MessageChatMemoryAdvisor

  1. 需要精确控制消息类型（用户、系统、助手）
  2. 使用 OpenAI GPT-3.5/4 等 chat 模型

总结：MessageChatMemoryAdvisor 是面向结构化对话记忆的最佳实践，而 PromptChatMemoryAdvisor 是面向文本提示增强的经典方案

为什么需要覆盖 adviseStream 方法？

在将多个流式响应合并成一个完整响应对象后，在调用 after，确保只保留完整的模型输出，避免部分信息写入 memory 导致混

AdvisorChain 链

管理一系列 Advisor调用链路

AdvisorChain

接口类作用：组织和管理多个 Advsir

package org.springframework.ai.chat.client.advisor.api;


import io.micrometer.observation.ObservationRegistry;


public interface AdvisorChain {
    default ObservationRegistry getObservationRegistry() {
        return ObservationRegistry.NOOP;
    }
}

CallAdvisorChain

接口类：call 增强链接口，链式调用机制将请求传递给下一个增强器

  • 支持获取链中所有增强器集合，便于调试
package org.springframework.ai.chat.client.advisor.api;


import java.util.List;
import org.springframework.ai.chat.client.ChatClientRequest;
import org.springframework.ai.chat.client.ChatClientResponse;


public interface CallAdvisorChain extends AdvisorChain {
    ChatClientResponse nextCall(ChatClientRequest chatClientRequest);


    List<CallAdvisor> getCallAdvisors();
}

StreamAdvisorChain

接口类：Stream 增强链接口，链式调用机制将请求传递给下一个增强器

  • 支持获取链中所有增强器集合，便于调试
package org.springframework.ai.chat.client.advisor.api;


import java.util.List;
import org.springframework.ai.chat.client.ChatClientRequest;
import org.springframework.ai.chat.client.ChatClientResponse;
import reactor.core.publisher.Flux;


public interface StreamAdvisorChain extends AdvisorChain {
    Flux<ChatClientResponse> nextStream(ChatClientRequest chatClientRequest);


    List<StreamAdvisor> getStreamAdvisors();
}

BaseAdvisorChain

接口类：统一 CallAdvisorChain、StreamAdvisorChain，逻辑复用

public interface BaseAdvisorChain extends CallAdvisorChain, StreamAdvisorChain {
}

DefaultAroundAdvisorChain

  1. 管理多个增强器的执行顺序，通过 reOrder 方法
  2. 采取责任链调用机制，使用 nextCall、nextStream 方法将请求传递给下一个增强器
  3. 支持观测日志记录，集成 Micrometer Observations，可记录每个增强器的执行上下文和耗时
package org.springframework.ai.chat.client.advisor;


import io.micrometer.observation.Observation;
import io.micrometer.observation.ObservationConvention;
import io.micrometer.observation.ObservationRegistry;
import java.util.ArrayList;
import java.util.Deque;
import java.util.List;
import java.util.Objects;
import java.util.concurrent.ConcurrentLinkedDeque;
import org.springframework.ai.chat.client.ChatClientRequest;
import org.springframework.ai.chat.client.ChatClientResponse;
import org.springframework.ai.chat.client.advisor.api.Advisor;
import org.springframework.ai.chat.client.advisor.api.BaseAdvisorChain;
import org.springframework.ai.chat.client.advisor.api.CallAdvisor;
import org.springframework.ai.chat.client.advisor.api.StreamAdvisor;
import org.springframework.ai.chat.client.advisor.observation.AdvisorObservationContext;
import org.springframework.ai.chat.client.advisor.observation.AdvisorObservationConvention;
import org.springframework.ai.chat.client.advisor.observation.AdvisorObservationDocumentation;
import org.springframework.ai.chat.client.advisor.observation.DefaultAdvisorObservationConvention;
import org.springframework.ai.template.TemplateRenderer;
import org.springframework.ai.template.st.StTemplateRenderer;
import org.springframework.core.OrderComparator;
import org.springframework.lang.Nullable;
import org.springframework.util.Assert;
import org.springframework.util.CollectionUtils;
import reactor.core.publisher.Flux;


public class DefaultAroundAdvisorChain implements BaseAdvisorChain {
    public static final AdvisorObservationConvention DEFAULTOBSERVATIONCONVENTION = new DefaultAdvisorObservationConvention();
    private static final TemplateRenderer DEFAULTTEMPLATERENDERER = StTemplateRenderer.builder().build();
    private final List<CallAdvisor> originalCallAdvisors;
    private final List<StreamAdvisor> originalStreamAdvisors;
    private final Deque<CallAdvisor> callAdvisors;
    private final Deque<StreamAdvisor> streamAdvisors;
    private final ObservationRegistry observationRegistry;
    private final TemplateRenderer templateRenderer;


    DefaultAroundAdvisorChain(ObservationRegistry observationRegistry, @Nullable TemplateRenderer templateRenderer, Deque<CallAdvisor> callAdvisors, Deque<StreamAdvisor> streamAdvisors) {
        Assert.notNull(observationRegistry, "the observationRegistry must be non-null");
        Assert.notNull(callAdvisors, "the callAdvisors must be non-null");
        Assert.notNull(streamAdvisors, "the streamAdvisors must be non-null");
        this.observationRegistry = observationRegistry;
        this.templateRenderer = templateRenderer != null ? templateRenderer : DEFAULTTEMPLATERENDERER;
        this.callAdvisors = callAdvisors;
        this.streamAdvisors = streamAdvisors;
        this.originalCallAdvisors = List.copyOf(callAdvisors);
        this.originalStreamAdvisors = List.copyOf(streamAdvisors);
    }


    public static Builder builder(ObservationRegistry observationRegistry) {
        return new Builder(observationRegistry);
    }


    public ChatClientResponse nextCall(ChatClientRequest chatClientRequest) {
        Assert.notNull(chatClientRequest, "the chatClientRequest cannot be null");
        if (this.callAdvisors.isEmpty()) {
            throw new IllegalStateException("No CallAdvisors available to execute");
        } else {
            CallAdvisor advisor = (CallAdvisor)this.callAdvisors.pop();
            AdvisorObservationContext observationContext = AdvisorObservationContext.builder().advisorName(advisor.getName()).chatClientRequest(chatClientRequest).order(advisor.getOrder()).build();
            return (ChatClientResponse)AdvisorObservationDocumentation.AIADVISOR.observation((ObservationConvention)null, DEFAULTOBSERVATIONCONVENTION, () -> observationContext, this.observationRegistry).observe(() -> advisor.adviseCall(chatClientRequest, this));
        }
    }


    public Flux<ChatClientResponse> nextStream(ChatClientRequest chatClientRequest) {
        Assert.notNull(chatClientRequest, "the chatClientRequest cannot be null");
        return Flux.deferContextual((contextView) -> {
            if (this.streamAdvisors.isEmpty()) {
                return Flux.error(new IllegalStateException("No StreamAdvisors available to execute"));
            } else {
                StreamAdvisor advisor = (StreamAdvisor)this.streamAdvisors.pop();
                AdvisorObservationContext observationContext = AdvisorObservationContext.builder().advisorName(advisor.getName()).chatClientRequest(chatClientRequest).order(advisor.getOrder()).build();
                Observation observation = AdvisorObservationDocumentation.AIADVISOR.observation((ObservationConvention)null, DEFAULTOBSERVATIONCONVENTION, () -> observationContext, this.observationRegistry);
                observation.parentObservation((Observation)contextView.getOrDefault("micrometer.observation", (Object)null)).start();
                return Flux.defer(() -> {
                    Flux var10000 = advisor.adviseStream(chatClientRequest, this);
                    Objects.requireNonNull(observation);
                    return var10000.doOnError(observation::error).doFinally((s) -> observation.stop()).contextWrite((ctx) -> ctx.put("micrometer.observation", observation));
                });
            }
        });
    }


    public List<CallAdvisor> getCallAdvisors() {
        return this.originalCallAdvisors;
    }


    public List<StreamAdvisor> getStreamAdvisors() {
        return this.originalStreamAdvisors;
    }


    public ObservationRegistry getObservationRegistry() {
        return this.observationRegistry;
    }


    public static class Builder {
        private final ObservationRegistry observationRegistry;
        private final Deque<CallAdvisor> callAdvisors;
        private final Deque<StreamAdvisor> streamAdvisors;
        private TemplateRenderer templateRenderer;


        public Builder(ObservationRegistry observationRegistry) {
            this.observationRegistry = observationRegistry;
            this.callAdvisors = new ConcurrentLinkedDeque();
            this.streamAdvisors = new ConcurrentLinkedDeque();
        }


        public Builder templateRenderer(TemplateRenderer templateRenderer) {
            this.templateRenderer = templateRenderer;
            return this;
        }


        public Builder push(Advisor advisor) {
            Assert.notNull(advisor, "the advisor must be non-null");
            return this.pushAll(List.of(advisor));
        }


        public Builder pushAll(List<? extends Advisor> advisors) {
            Assert.notNull(advisors, "the advisors must be non-null");
            Assert.noNullElements(advisors, "the advisors must not contain null elements");
            if (!CollectionUtils.isEmpty(advisors)) {
                List<CallAdvisor> callAroundAdvisorList = advisors.stream().filter((a) -> a instanceof CallAdvisor).map((a) -> (CallAdvisor)a).toList();
                if (!CollectionUtils.isEmpty(callAroundAdvisorList)) {
                    Deque var10001 = this.callAdvisors;
                    Objects.requireNonNull(var10001);
                    callAroundAdvisorList.forEach(var10001::push);
                }


                List<StreamAdvisor> streamAroundAdvisorList = advisors.stream().filter((a) -> a instanceof StreamAdvisor).map((a) -> (StreamAdvisor)a).toList();
                if (!CollectionUtils.isEmpty(streamAroundAdvisorList)) {
                    Deque var4 = this.streamAdvisors;
                    Objects.requireNonNull(var4);
                    streamAroundAdvisorList.forEach(var4::push);
                }


                this.reOrder();
            }


            return this;
        }


        private void reOrder() {
            ArrayList<CallAdvisor> callAdvisors = new ArrayList(this.callAdvisors);
            OrderComparator.sort(callAdvisors);
            this.callAdvisors.clear();
            Deque var10001 = this.callAdvisors;
            Objects.requireNonNull(var10001);
            callAdvisors.forEach(var10001::addLast);
            ArrayList<StreamAdvisor> streamAdvisors = new ArrayList(this.streamAdvisors);
            OrderComparator.sort(streamAdvisors);
            this.streamAdvisors.clear();
            var10001 = this.streamAdvisors;
            Objects.requireNonNull(var10001);
            streamAdvisors.forEach(var10001::addLast);
        }


        public DefaultAroundAdvisorChain build() {
            return new DefaultAroundAdvisorChain(this.observationRegistry, this.templateRenderer, this.callAdvisors, this.streamAdvisors);
        }
    }
}
