可观测最佳实践

以下最佳实践基于 Spring AI 1.0.0 和 Spring AI Alibaba 1.0.0.2 版本。

可观测背景

软件的可观测性（Observability）是指通过系统输出（如日志、指标、跟踪等）来推断其内部状态的能力。在 Spring AI 中基于 Spring 生态集成可观测性功能。包括 ChatClient（包含 ChatModel 和 Advisor，ToolCall 等） 、EmbeddingModel、ImageModel 和 VectorStore 。

Spring AI Alibaba 可观测性

Tips: Spring AI 一些输出内容较大且为了数据安全，在默认情况下没有开启打印开关，需要手动开启。

参考：https://docs.spring.io/spring-ai/reference/observability/index.html#_prompt_content

创建 Spring AI Alibaba 项目

下文中的所有项目代码都在：https://github.com/springaialibaba/spring-ai-alibaba-examples/tree/main/spring-ai-alibaba-observability-example/observability-example

引入依赖

项目中在跟 pom 中提前引入了 spring-ai-alibaba-bom，下文中没有列出。

spring-ai-alibaba-starter-dashscope： dashscope starter
spring-ai-alibaba-starter-tool-calling-weather：spring ai alibaba 工具 starter
micrometer-tracing-bridge-brave zipkin-reporter-brave：观测依赖

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>

    <dependency>
        <groupId>com.alibaba.cloud.ai</groupId>
        <artifactId>spring-ai-alibaba-starter-dashscope</artifactId>
    </dependency>

    <dependency>
        <groupId>com.alibaba.cloud.ai</groupId>
        <artifactId>spring-ai-alibaba-starter-tool-calling-weather</artifactId>
    </dependency>

    <dependency>
        <groupId>io.micrometer</groupId>
        <artifactId>micrometer-tracing-bridge-brave</artifactId>
        <version>1.5.0-M2</version>
        <exclusions>
            <exclusion>
                <artifactId>slf4j-api</artifactId>
                <groupId>org.slf4j</groupId>
            </exclusion>
        </exclusions>
    </dependency>

    <dependency>
        <groupId>io.zipkin.reporter2</groupId>
        <artifactId>zipkin-reporter-brave</artifactId>
        <version>3.4.3</version>
    </dependency>
</dependencies>

application.yml 配置

开启 spring ai 的观测性功能
开启 spring ai alibaba weather tool 功能

spring:
  application:
    name: observability-models-dashscope

  ai:
    dashscope:
      api-key: ${AI_DASHSCOPE_API_KEY}
      observations:
        log-completion: true
        log-prompt: true

    # spring ai alibaba weather tool calling config
    alibaba:
      toolcalling:
        weather:
          api-key: ${WEATHER_API_KEY}
          enabled: true

    # Chat config items
    chat:
      client:
        observations:
          # default value is false.
          log-prompt: true
          log-completion: true
          include-error-logging: true

  # tools config items
  tools:
    observability:
      # default value is false.
      include-content: true

    # Image observation is only support openai for spring ai.
    # image:
    #   observations:
    #     log-prompt: true

  http:
    client:
      read-timeout: 60s

management:
  endpoints:
    web:
      exposure:
        include: "*"
  endpoint:
    health:
      # 应用健康状态检查，携带详细新学年
      show-details: always
  tracing:
    sampling:
      # trace 采样信息，记录每个请求
      probability: 1.0

Controller

此部分为 ai 服务的具体实现，以 ChatClient 为例，Embedding 和 Image 类似：

@RestController
@RequestMapping("/observability/chat")
public class ChatModelController {

  private final ChatClient chatClient;

  public ChatModelController(ChatClient.Builder builder) {
    this.chatClient = builder.build();
  }

  @GetMapping
  public Flux<String> chat(@RequestParam(defaultValue = "hi") String prompt) {

    return chatClient.prompt(prompt).stream().content();
  }

}

启动依赖项

此 demo 中将数据导入到 zipkin 展示，因此需要启动一个 zipkin：

services:
  zipkin:
    image: 'openzipkin/zipkin:latest'
    ports:
      - '9411:9411'

可观测输出

ChatClient

指标介绍：https://docs.spring.io/spring-ai/reference/observability/index.html#_chat_client

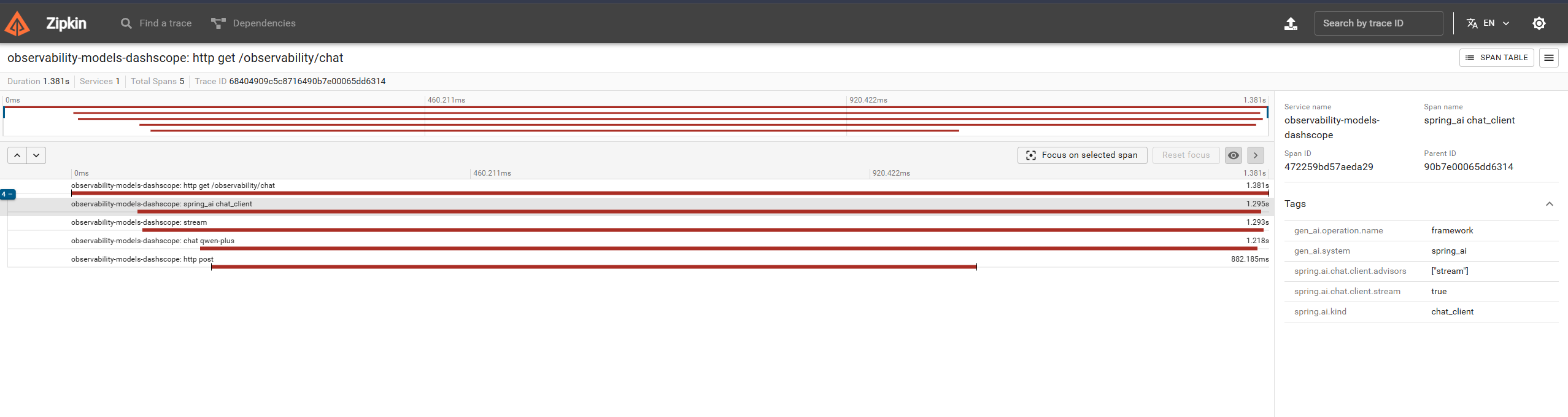

在下文中即可看到 chatClient 相关的信息：

ToolCalling

指标介绍：https://docs.spring.io/spring-ai/reference/observability/index.html#_tool_calling

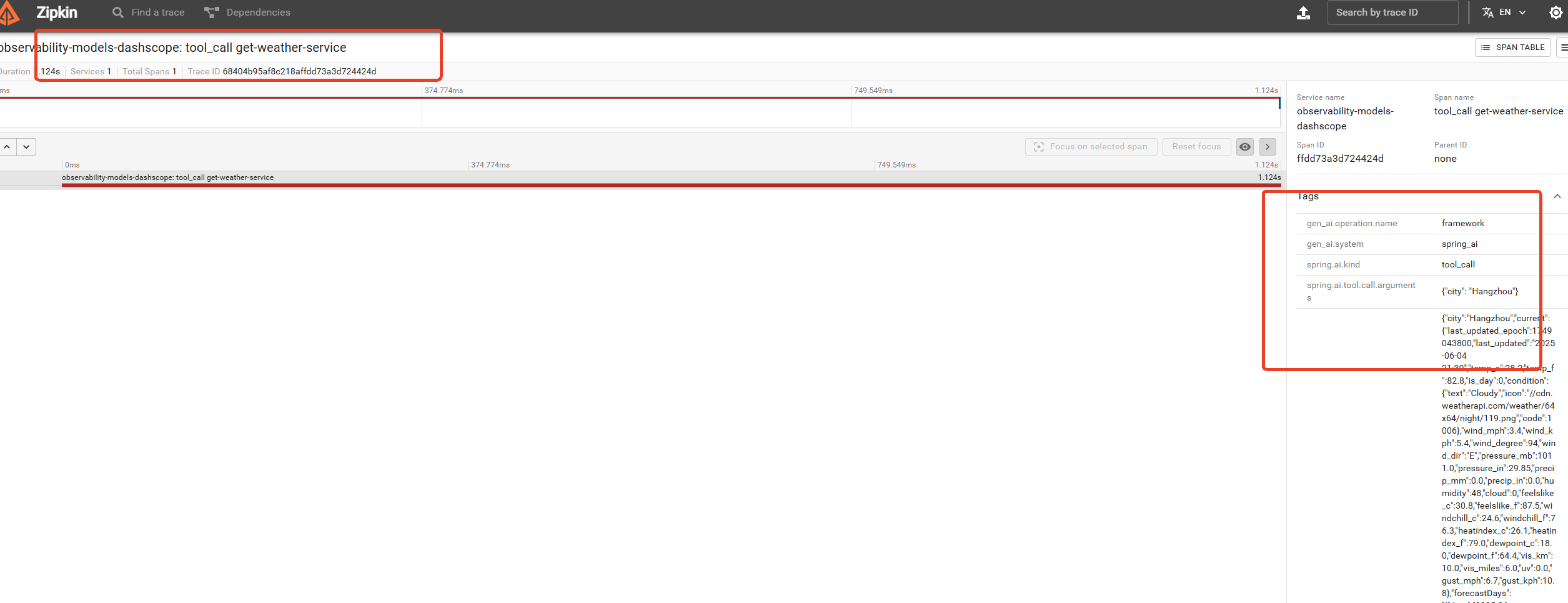

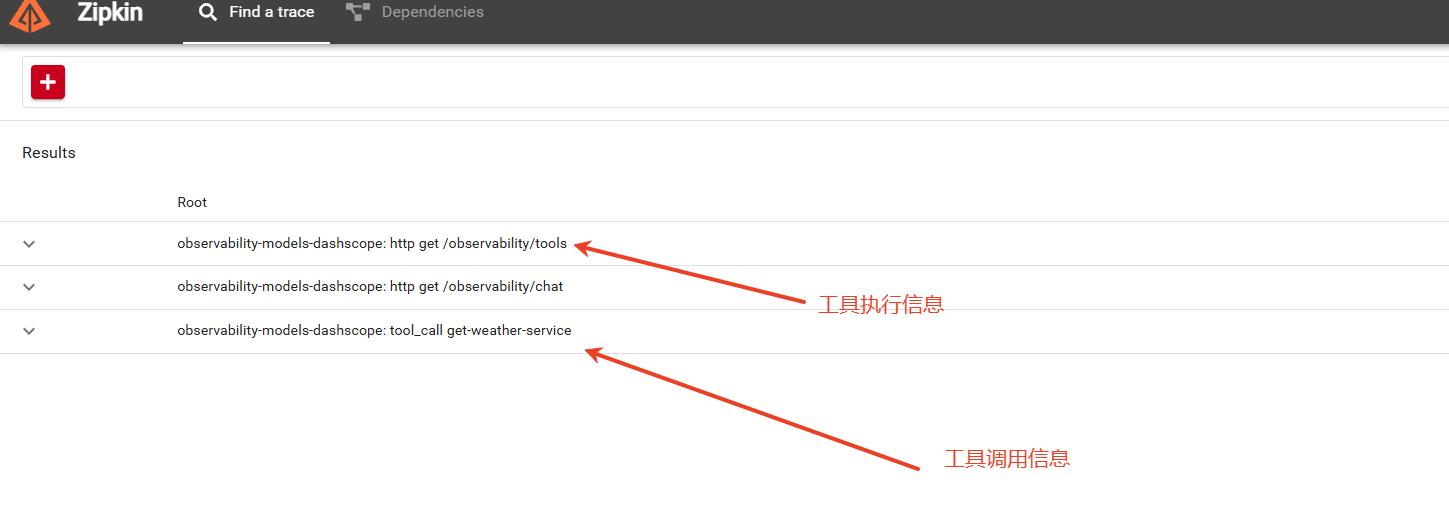

在下面的 tool 模块可以看到 tools 的入参和出参信息：

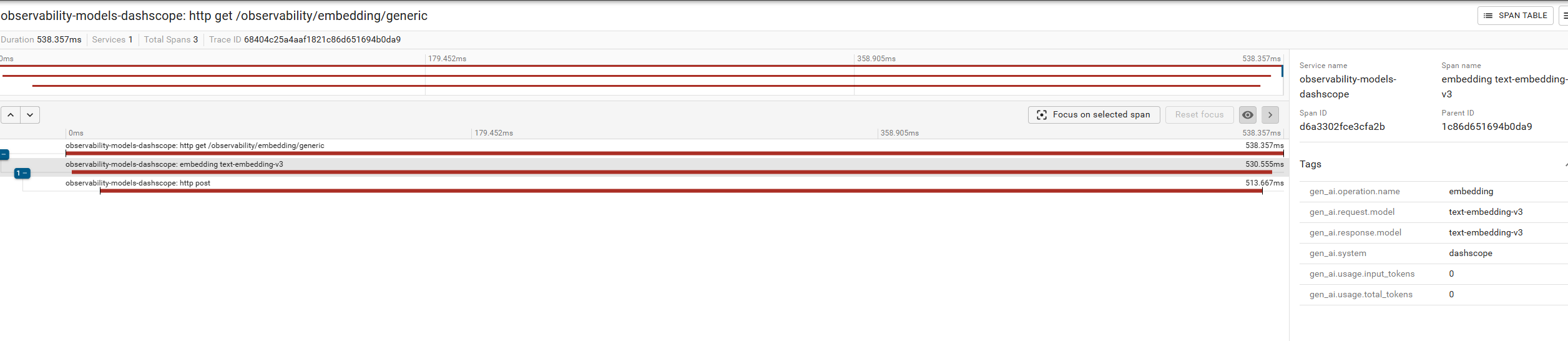

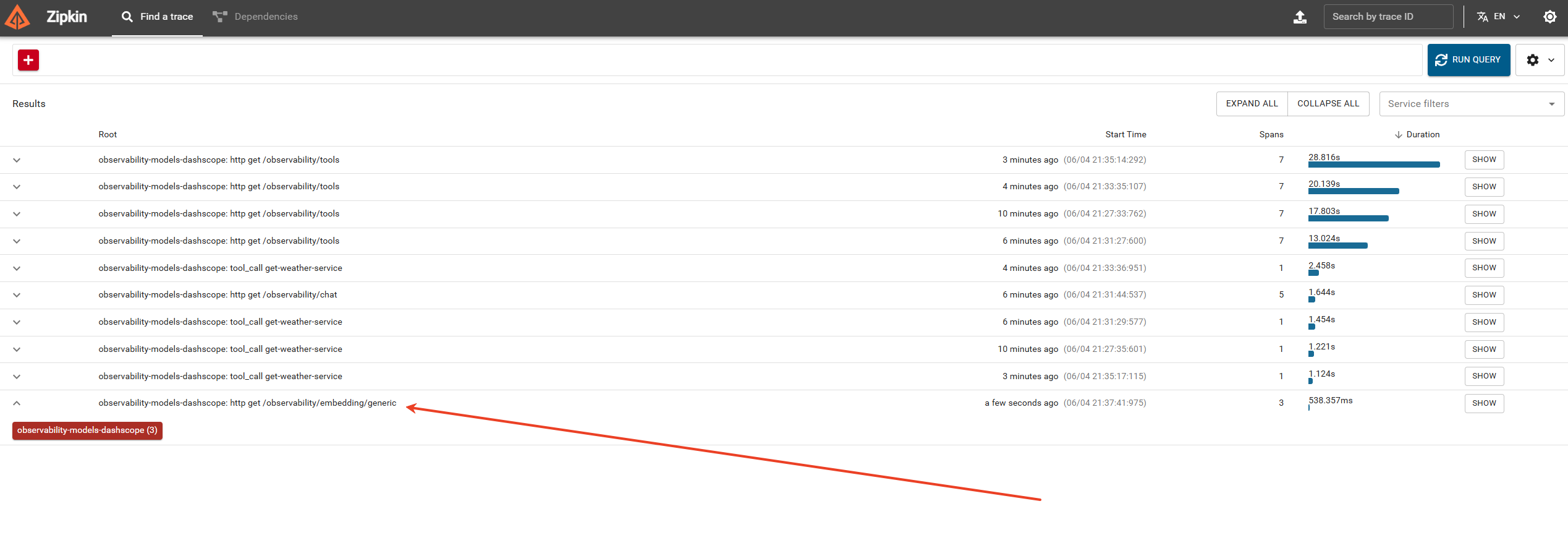

Embedding Client

指标参考：https://docs.spring.io/spring-ai/reference/observability/index.html#_embeddingmodel

扩展 Spring AI 指标

Spring AI 提供了 ObservationHandler<ChatModelObservationContext> 机制来扩展可观测信息，您可以加入或者改变观测数据。

pom

pom 中只需引入对应的 starter 即可。

<dependencies>
    <dependency>
        <groupId>com.alibaba.cloud.ai</groupId>
        <artifactId>spring-ai-alibaba-starter-dashscope</artifactId>
    </dependency>
</dependencies>

application.yml

spring:
  application:
    name: observationhandler-example

CustomerObservationHandler

扩展实现

public class CustomerObservationHandler implements ObservationHandler<ChatModelObservationContext> {

    @Override
    public void onStart(ChatModelObservationContext context) {
        System.out.println("exec CustomerObservationHandler onStart function! ChatModelObservationContext: " + context.toString() );
    }

    @Override
    public void onStop(ChatModelObservationContext context) {
        System.out.println("exec CustomerObservationHandler onStop function! ChatModelObservationContext: " + context.toString() );
    }

    @Override
    public boolean supportsContext(Observation.Context context) {
        return true;
    }
}

Chat Controller

@RestController
@RequestMapping("/custom/observation/chat")
public class ChatModelController {

    @GetMapping
    public String chat(@RequestParam(defaultValue = "hi") String message) {

       ObservationRegistry registry = ObservationRegistry.create();
       registry.observationConfig().observationHandler(new CustomerObservationHandler());

       // Need to set the API key in the environment variable "AI_DASHSCOPE_API_KEY"
       // Spring Boot Autoconfiguration is injected use ChatClient.
       return DashScopeChatModel.builder()
             .dashScopeApi(DashScopeApi.builder().apiKey(System.getenv("AI_DASHSCOPE_API_KEY")).build())
             .observationRegistry(registry)
             .build()
             .call(message);
    }

}

当在请求 chat 接口时，会执行 custom handler 中的代码语句：

exec CustomerObservationHandler onStart function! ChatModelObservationContext: name='gen_ai.client.operation', contextualName='null', error='null', lowCardinalityKeyValues=[gen_ai.operation.name='chat', gen_ai.request.model='qwen-plus', gen_ai.response.model='none', gen_ai.system='dashscope'], highCardinalityKeyValues=[gen_ai.request.temperature='0.7'], map=[], parentObservation=null

exec CustomerObservationHandler onStop function! ChatModelObservationContext: name='gen_ai.client.operation', contextualName='chat qwen-plus', error='null', lowCardinalityKeyValues=[gen_ai.operation.name='chat', gen_ai.request.model='qwen-plus', gen_ai.response.model='none', gen_ai.system='dashscope'], highCardinalityKeyValues=[gen_ai.request.temperature='0.7', gen_ai.response.finish_reasons='["STOP"]', gen_ai.response.id='9582b50a-4056-9b7e-b2ca-e52368406b5e', gen_ai.usage.input_tokens='9', gen_ai.usage.output_tokens='7', gen_ai.usage.total_tokens='16'], map=[], parentObservation=null

参考文档

https://docs.spring.io/spring-ai/reference/observability/index.html
